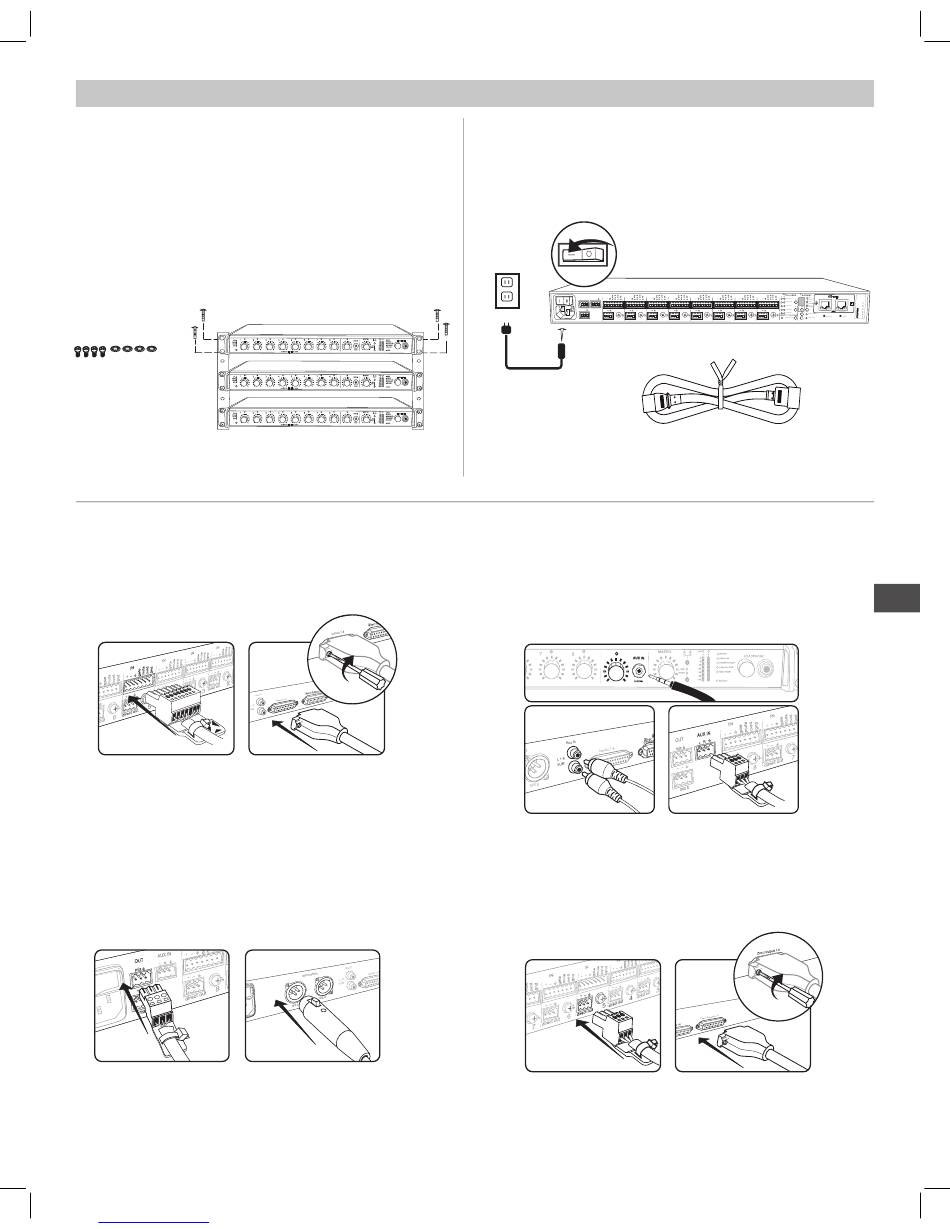

Rackmounting
Rackmount the mixer using the screws and washers supplied in the
Hardware Kit. Follow these general best practices when rackmounting
equipment:
• Ambient temperature of the rack should not exceed specified operating
temperature range of the device.
• Keep fan inlet and side air vents clear from obstructions and provide
adequate space for airflow within the rack.
• When possible, provide 1 RU of empty space between each device.
Typical Audio Connections
① Channel Inputs
• Microphones
• Insert send from a mixer
• Dante network audio
③ Mix Outputs
• Amplifier
• Powered speakers
• Mixer channel inputs
Downloaded from
www.Manualslib.com
1
2
3
4
5
6
7
8
push to solo | hold to mute
1
2
3
4
5
6
7
8
push to solo | hold to mute
1
2
3
4
5
6
7
8
push to solo | hold to mute
manuals search engine
Installation
Power
Connect the unit to AC power using the supplied IEC cable. Turn on the
power switch.
HEADPHONE
HEADPHONE
HEADPHONE
② Aux Inputs
Aux-level sound sources:
• MP3 player
• Computer headphone output
• CD player
6
7
8
④ Direct Outputs
• Insert returns to a mixer
• Recording device
• Mixer channel inputs
OUT
AUX IN
IN
IN
IN
IN
IN
IN
IN
IN
+
+
+
+
+
+
+
+
mix a
L R
+
+
+
+
+
+
+
+
+
8
7
6
5
4
3
2
mix b
direct out
direct out
direct out
direct out
direct out
direct out
direct out
direct out
HEADPHONE
1
