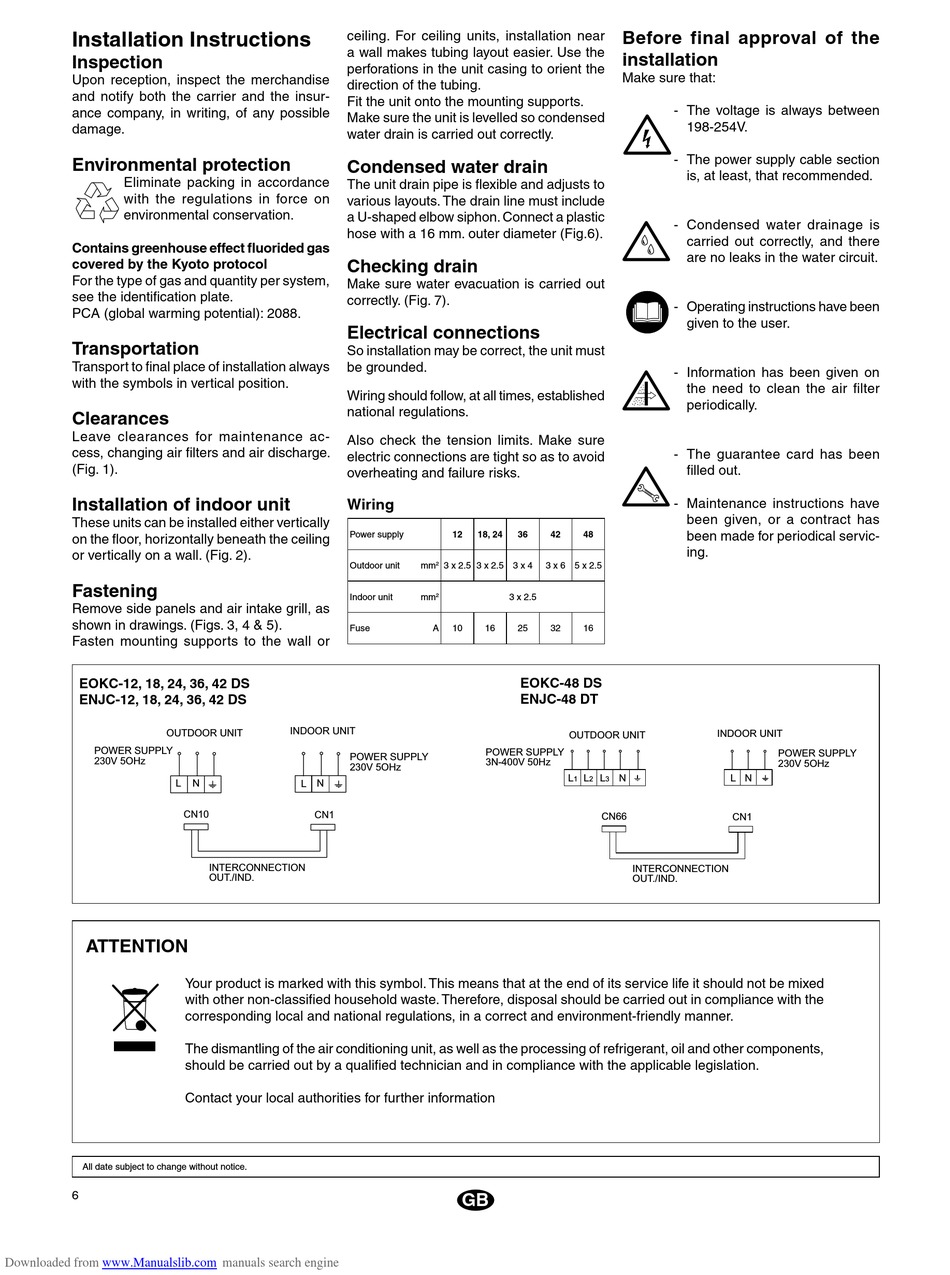

Installation Instructions - Johnson Controls YORK EOKC-12 DS Hinweise Zum Einbau

Installation Instructions

Inspection
Upon reception, inspect the merchandise
and notify both the carrier and the insur-
ance company, in writing, of any possible
damage.
Environmental protection
Eliminate packing in accordance
with the regulations in force on
environmental conservation.
Contains greenhouse effect fluorided gas
covered by the Kyoto protocol
For the type of gas and quantity per system,
see the identification plate.
PCA (global warming potential): 2088.
Transportation
Transport to final place of installation always
with the symbols in vertical position.
Clearances
Leave clearances for maintenance ac-
cess, changing air filters and air discharge.
(Fig. 1).
Installation of indoor unit
These units can be installed either vertically
on the floor, horizontally beneath the ceiling
or vertically on a wall. (Fig. 2).
Fastening
Remove side panels and air intake grill, as
shown in drawings. (Figs. , 4 & 5).
Fasten mounting supports to the wall or
EOKC-12, 18, 24, 36, 42 DS
ENJC-12, 18, 24, 36, 42 DS
������������
������������
���������
�
����
ATTENTION
Your product is marked with this symbol. This means that at the end of its service life it should not be mixed
with other non-classified household waste. Therefore, disposal should be carried out in compliance with the
corresponding local and national regulations, in a correct and environment-friendly manner.
The dismantling of the air conditioning unit, as well as the processing of refrigerant, oil and other components,
should be carried out by a qualified technician and in compliance with the applicable legislation.
Contact your local authorities for further information
All date subject to change without notice.
6
Downloaded from www.Manualslib.com
ceiling. For ceiling units, installation near
a wall makes tubing layout easier. Use the
perforations in the unit casing to orient the
direction of the tubing.
Fit the unit onto the mounting supports.
Make sure the unit is levelled so condensed
water drain is carried out correctly.
Condensed water drain
The unit drain pipe is flexible and adjusts to
various layouts. The drain line must include
a U-shaped elbow siphon. Connect a plastic
hose with a 16 mm. outer diameter (Fig.6).
Checking drain
Make sure water evacuation is carried out
correctly. (Fig. 7).
Electrical connections
So installation may be correct, the unit must
be grounded.
Wiring should follow, at all times, established
national regulations.
Also check the tension limits. Make sure
electric connections are tight so as to avoid
overheating and failure risks.
Wiring
Power supply
Outdoor unit
Indoor unit
Fuse
�����������
������������
���������
� � �
���
���������������
���������
manuals search engine
12 18, 24 36 42 48
mm 2  x 2.5  x 2.5  x 4  x 6 5 x 2.5
mm 2  x 2.5
A 10 16 25 2 16
EOKC-48 DS
ENJC-48 DT
������������
������������
������������
� � �
� � �
����
GB
Before final approval of the
installation
Make sure that:
- The voltage is always between
198-254V.
- The power supply cable section
is, at least, that recommended.
- Condensed water drainage is
carried out correctly, and there
are no leaks in the water circuit.
- Operating instructions have been
given to the user.
- Information has been given on
the need to clean the air filter
periodically.
- The guarantee card has been
filled out.
- Maintenance instructions have
been given, or a contract has
been made for periodical servic-
ing.
�����������
������������
���������
� � �
���
���������������
���������
