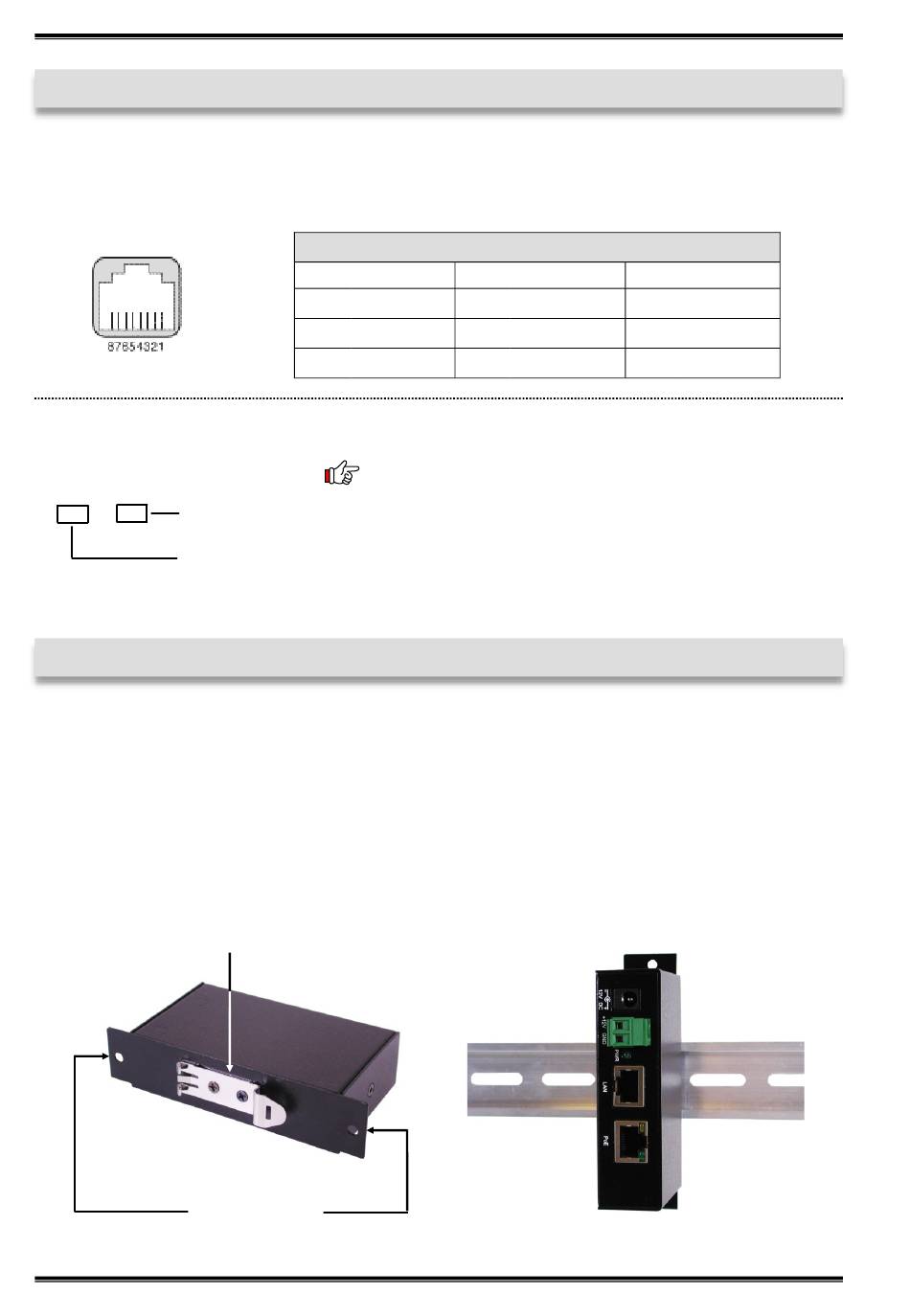

3. Layout, Connections & LED's
3.2 Connections & LED's
RJ45 Port:
Status LED's:
Connection PoE Output
No Function
PoE LED
4. Hardware Installation
Please observe the following installation instructions. Because there are big differences
between PC's, we can only give you a general guide for connecting the EX-6006PoE. If
you have any questions, please refer to the operating instructions of your computer
system.
1. Install the EX-6006PoE on the wall or on a mounting rail by using the supplied DIN-
Rail kit.
DIN-Rail Kit
Wall Installation
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
RJ45 Port
Pin
Signal
1
BI_DA+
2
BI_DA-
3
BI_DB+
RJ45 connector which can be supplied with 48V together
with the data input connector. When a PoE-PD is connec-
ted, the injector provides the PoE power supply and the
yellow PoE LED lights up. Otherwise the cable is not
supplied with power and the yellow PoE LED does not
light up
Holes for
Pin
Signal
4
BI_DC+
5
BI_DC-
6
BI_DB-
Installation on
10
EX-6006PoE
Pin
Signal
7
BI_DD+
8
BI_DD-
DIN-Rail
