Pruduct illustration
Part description
List of items
Specification

Field of application

Assembly
Dismantling
Handling + details
Accessories
Declaration of conformity
LIST Of ITeMS
1 Hull
1 Forward backrest
1 Midship backrest (only for HOLIDAY 3)
1 Rear backrest
1 Forward footrest
1 Midship footrest (only for HOLIDAY 3)
1 Rear footrest
1 Repair kit incl. valve key and bayonet
adapter
SpeCIfICATION
HOLIDAY
Length:
Beam:
Net weight:
No of persons:
Carrying capacity:
Operating pressure:
Motor output:*
Motor weight:*
Sail area:
Wind force:
WW-Class:
Norm:
Category:
* = with outrigger only!
Downloaded from www.Manualslib.com
INDex
2
395 cm 500 cm
75 cm 75 cm
16 kg 20 kg
2 adults 3 adults
190 kg 240 kg
0,3 bar
2,2 kw - 3 HP
17 kg
4 m²
3 Beaufort
2
ISO-EN 6185/III
D
manuals search engine
fIeLD Of AppLICATION
Page
► kayak for 1/2/3 persons, on lakes, ri-
vers and sheltered coastal close waters
2 - 3
► White-water suited to class grade 2 -
2 - 3
none obstructive passages, inordinate
7
waves, moderate swell, rolling, swirling
7
water, slight surge and wash.
7
► Sailboat with 4 m2 sail area, to max.
wind force to Beaufort 3.
7 - 8
► Motorised boat suited for electric motors
8
to max. 2,2 KW/3 HP - With outrigger
9
only!
9
10 - 11
► Open and empty the carton, of your HO-
LIDAY and remove backrests and foot-
rests.
► Check the list of items to ensure no parts
are missing.
► Remove the wrapping foil and unroll the
boat.
► Inflate the boat till it reaches approxima-
te final shape.

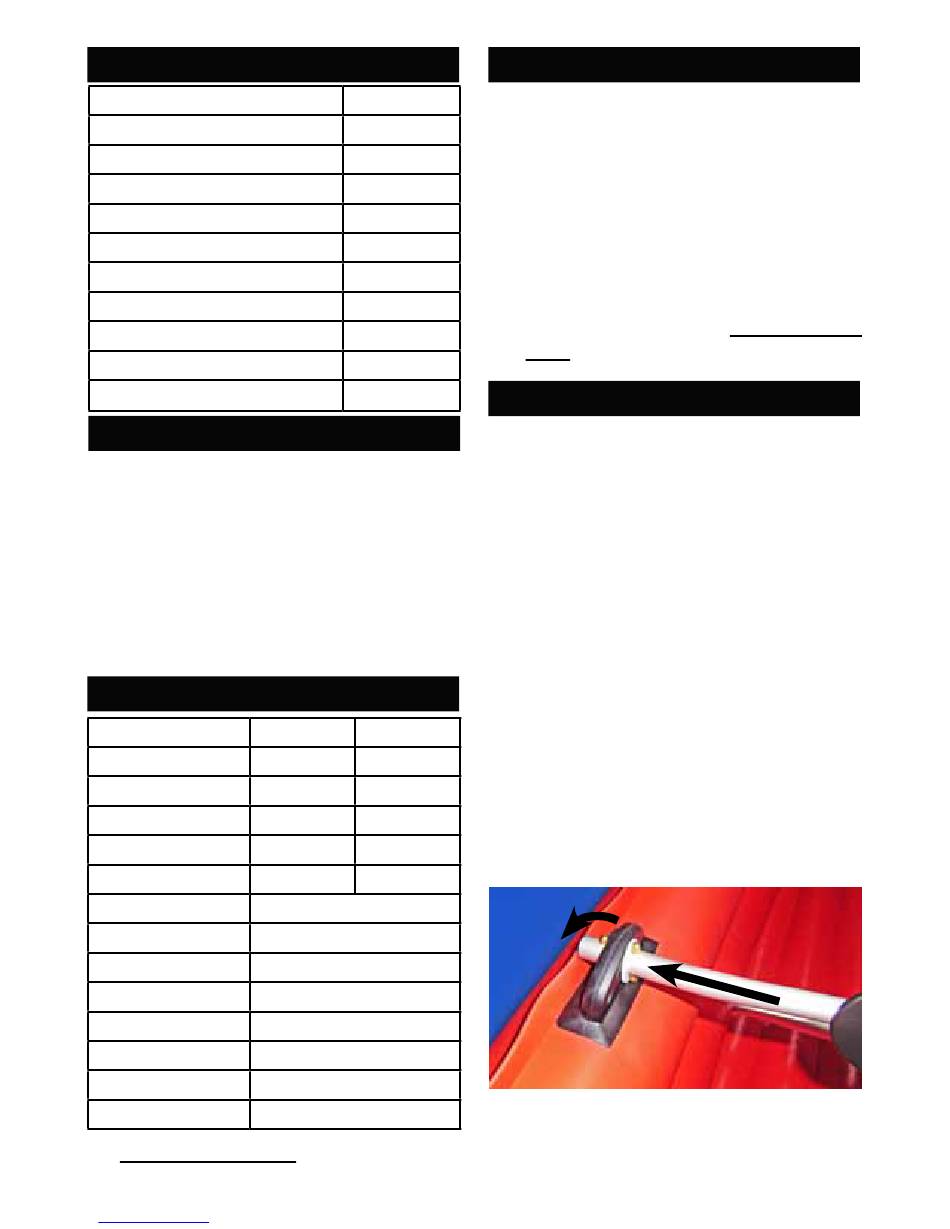

► Insert the backrests into the backrest (the
backrest-bracket must be positioned bet-
ween the 2 bolts of the backrest and out-
3
side the washers), and turn the backrest
over to the front (short backrest to the
rear, long backrests forward and for HO-
LIDAY 3 the longest backrest midships).
ASSeMBLY
7
