Installation Instructions

1) Battery Disconnection:
Disconnect the vehicle battery observing the normal battery disconnection procedures and
remove the vehicles radio assembly.
If necessary, refer to vehicles workshop manual for further information and ensure any radio or
alarm codes etc are noted before disconnection.
2) Component Location:
The recommended component locations are shown hereafter but as model specifications may
change, please refer to the general installation guides on Page 5 when choosing positions and
fixing the components:

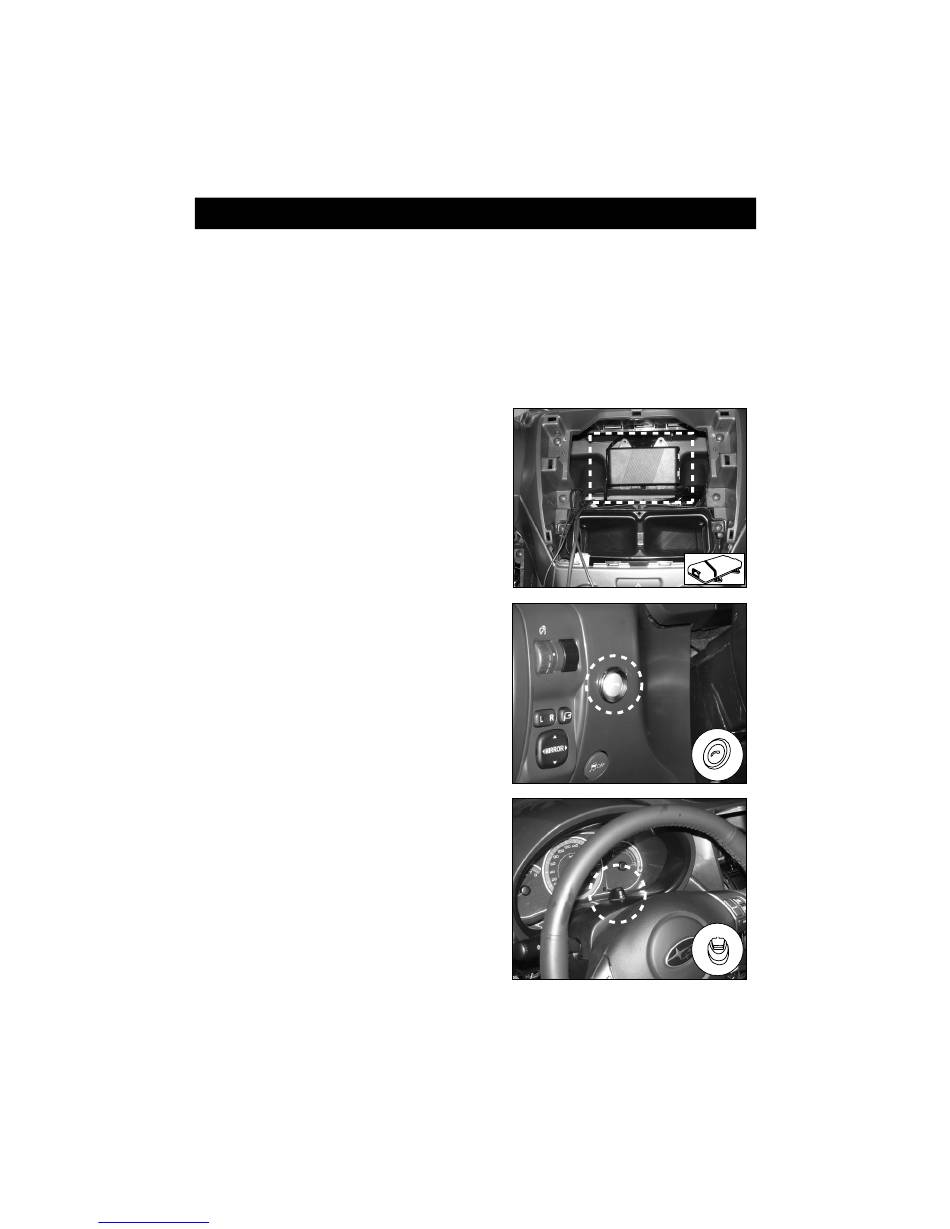

2.1 - Control unit location:-
Secure the control unit behind the radio cavity in
the chosen location using the adhesive velcro
patch or the cable ties provided in the kit.
When using the velcro, ensure the surfaces are
clean by using the alcohol swab provided.
2.2 - Control button location:
The control button should be mounted adjacent to
the mirror adjustment switch as shown.
Use the self-adhesive template provided in the kit
to mark the exact hole location. Check behind the
panel to ensure there is nothing present that can
interfere with the drilling process and that there is
enough space for the depth of the switch.
Carefully drill the 24mm hole to accommodate the
switch assembly.
De-burr and rough edges before fitting the switch
and securing with the locknut provided.
2.3 - Microphone location:
The microphone should be located on the top of
the upper steering column surround
using the adhesive pad provided ensuring it is
pointing directly towards the driver.
Ensure the surface is clean and dry by wiping with
the alcohol swab provided in the kit.
