The HomeMatic Radio-controlled socket adapter switch-actua-
tor enables switching of connected devices.
The socket adapter dimming-actuator enables dimming of con-
nected devices.
The devices are easily mounted without tools. The socket adapter
enables easy operation directly on the device. Alternatively, multiple
remote controls can be assigned. The device LED confirms the
reception of radio signals. The maximum switch-on time can be
configured individually.

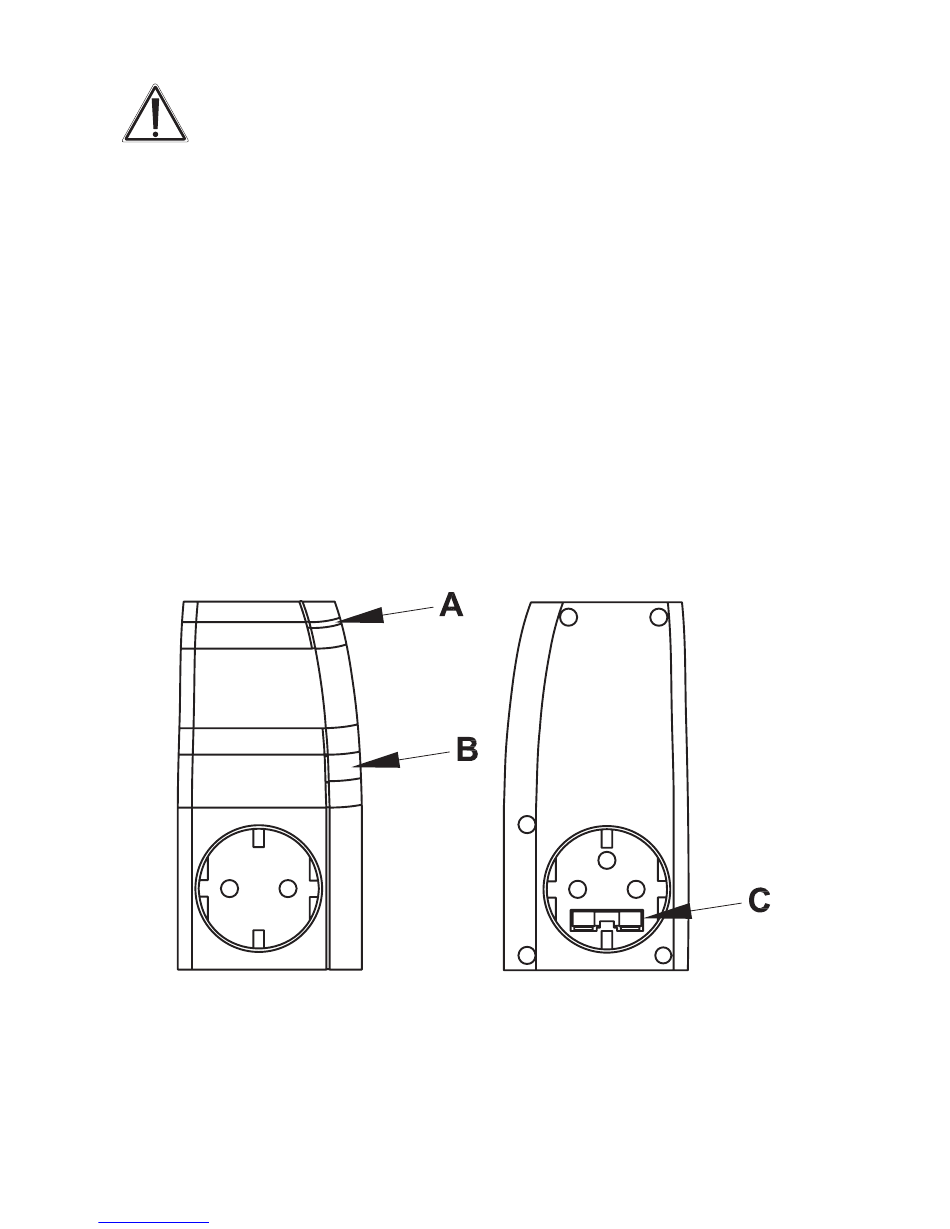

A
B
C
16
Downloaded from www.Manualslib.com
Fuse every transformer on the primary side according to the
manufacturer's specifications when working with conventio-
nal transformers. Use only safety transformers that conform
with DIN EN 61558-2-6 (VDE 0570 part 2-6).

Function

Device LED
Channel button
Fuse holder (only HM-LC-DimL1-PI)
