‚Power.off': Selection of Power-Off Delay

3.7

‚Out': Function of the Output

3.8

‚Address': Selection of Base Address when Output = Serial Interface

3.9

‚dAC.0Volt': Output Offset When Output = Analogue Output

3.10 ‚dAC.1Volt': Output When Output = Analogue Output
4.

Basics Of Thermocouple Temperature Measurements

● The right thermocouple type has to be selected prior to measuring (p.r.t. Device Configuration). Otherwise the instr-
ment will display a wrong value! The device is optimised for type K usage.
● Temperature differences between the instrument and the probe connector may produce measuring errors, especially
when using other types than type K. Therefore wait after connecting or touching the connector until the temperatures
have adjusted (can take several minutes, depending on the temperature differences).
● The device is suitable to measure large temperature ranges. But consider the allowable range of the probe!
● When measuring air temperature the probe has to be dry. Otherwise the cold due to the evaporation causes too low measurings.
5.

Special Functions

5.1

Display Resolution

Standard setting: ‚Auto', i.e. the device automatically switches over to the optimum resolution between 1° and 0.1°.
If temperatures to be measured are near the switching threshold, a fixed resolution may be better, e.g. for easy recording. In such
a case please select the optimum resolution manually. Independent from this setting, type S measurings are always in 1° resolu-
tion!
Technical changes reserved

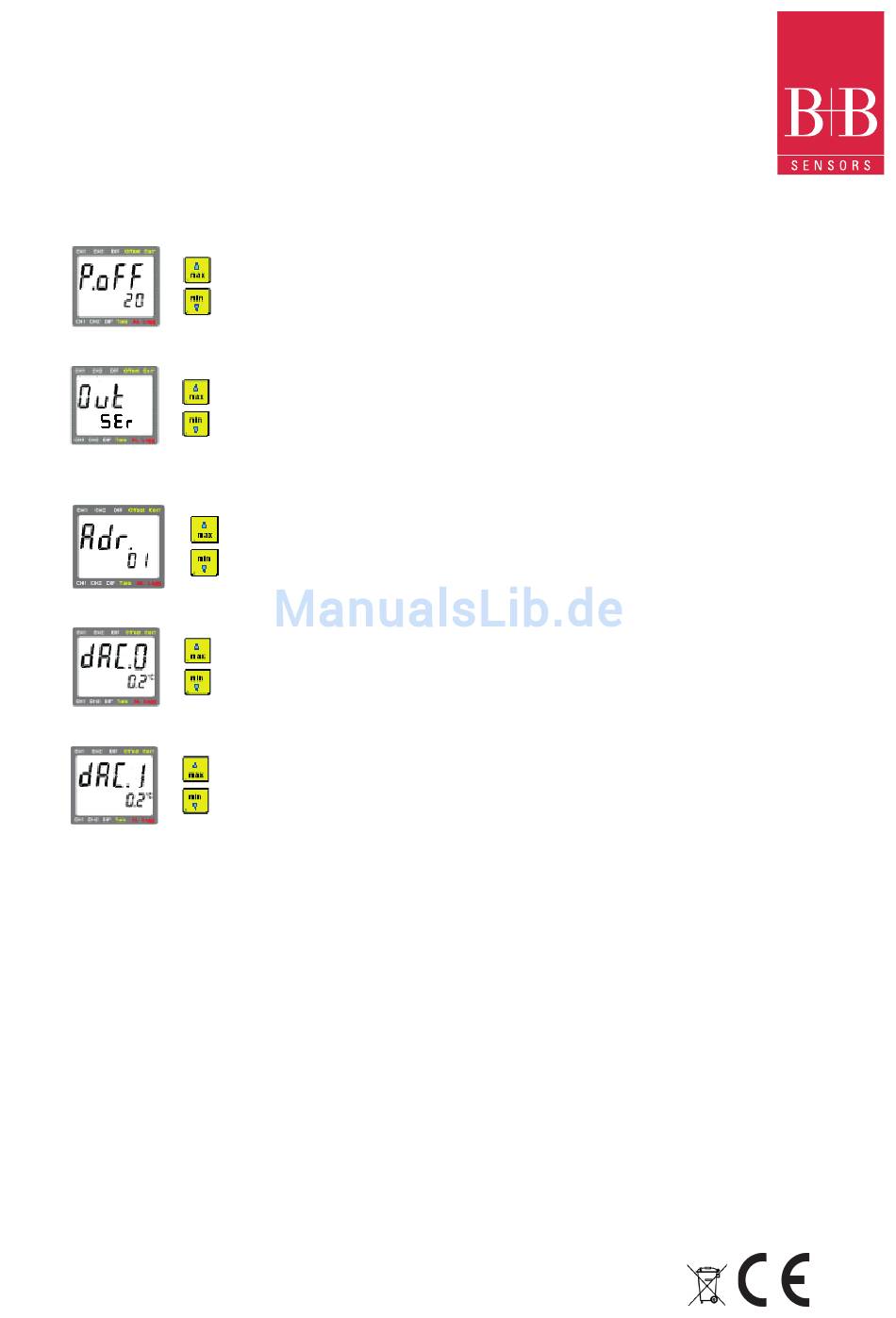

1...120: Power-off delay in minutes. Device will be automatically switched off as soon as this time
has elapsed if no key is pressed/no interface communication takes place.
off:
Power-off function deactivated (continuous operation, e.g. in case of mains operation)
off: No output function, lowest power consumption
SEr: Output is serial interface
dAC: Output is analogue output 0...1V
01, 11, 21, ..., 91: Base address for interface communication.
-220...1372°C:(depending on selected range) Input of the temperature at which 0V should be output
-220...1372°C: (depending on selected range) Input of the temperature at which 1V should be output
