T&S UK-0107 Installations- Und Wartungsanleitungen

Vorschau ausblenden Andere Handbücher für UK-0107:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product
is free from defects in material and workman-
ship for a period of one (1) year from the date
of purchase. During this one-year warranty
period, if the product is found to be defective,
T&S shall, at its options, repair and/or replace
it. To obtain warranty service, products must
be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S
and the return of repaired or replaced product
to the purchaser are the responsibility of the
purchaser. Repair and/or replacement shall be
made within a reasonable time after receipt by
T&S of the returned product. This warranty does
not cover Items which have received secondary
fi nishing or have been altered or modifi ed after
purchase, or for defects caused by physical
abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein,
and any remedy for Breach of Contract which
might arise, is hereby excluded and disclaimed.
Any implied warranties of merchantability or
fi tness for a particular purpose are limited to
one year in duration. Under no circumstances
shall T&S be liable for loss of use or any special
consequential costs, expenses or damages.
Some states do not allow limitations on
how long and implied warranty lasts or the
exclusion or limitation of incidental or conse-
quential damages, so the above limitations or
exclusions may not apply to you. Specifi c rights
under this warranty and other rights vary from
state to state.
P/N:
098-012266-45 Rev.1
Date:
08-07-06
Drawn:
TEH
Checked:
DHL 08-09-06
Approved:
JHB 08-09-06

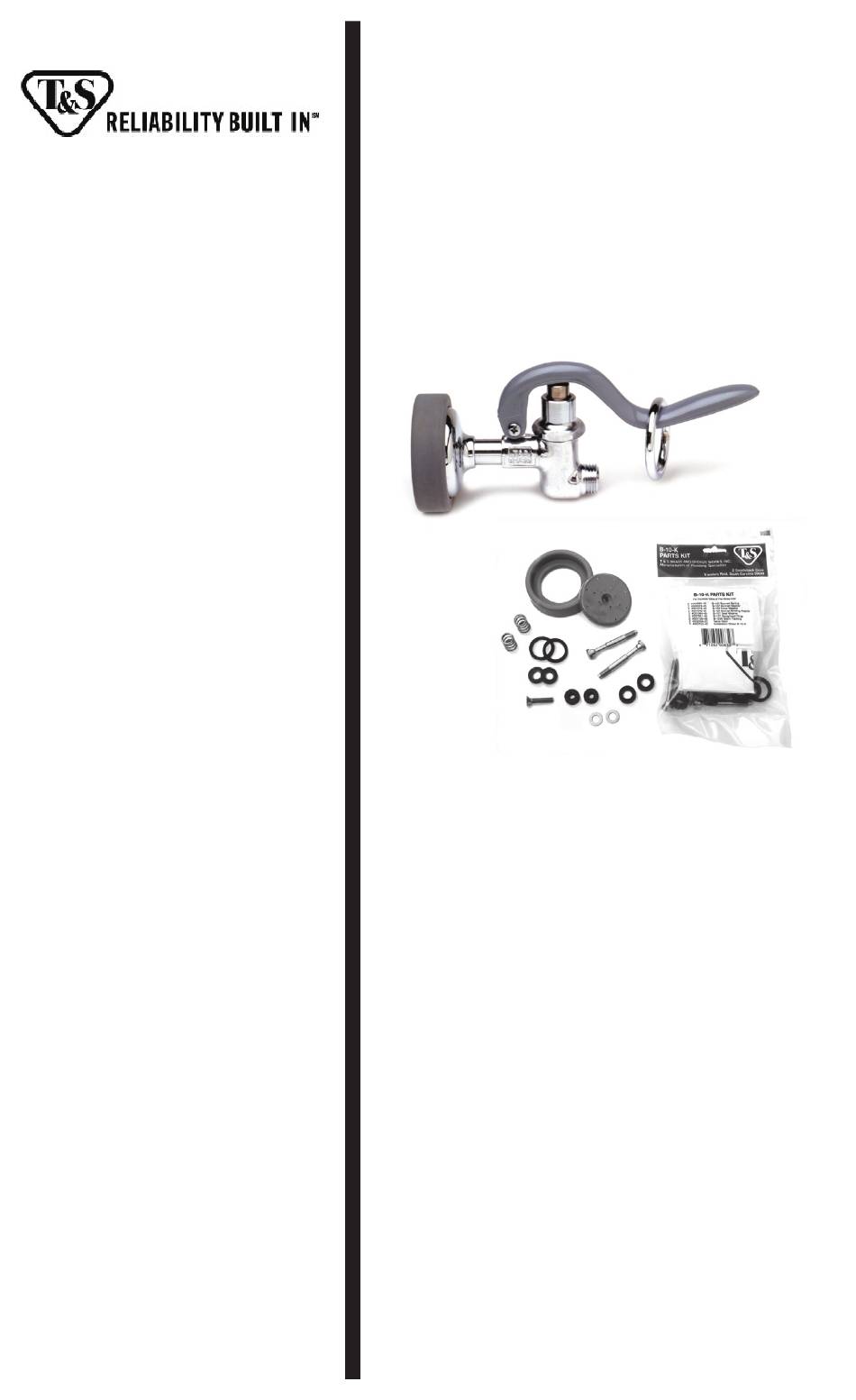

Installation and
Maintenance
Instructions
Pre-Rinse Spray
Valve
UK-0107 & EB-0107
Deutsch:
Español:
Français:
Installations- und
Wartungsanleitungen
la Instalación y las
Instrucciones de Man-
tenimiento
les Instructions
d'Installation et
d'Entretien

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für T&S UK-0107

  • Seite 1 Any express warranty not provided herein, and any remedy for Breach of Contract which might arise, is hereby excluded and disclaimed. UK-0107 & EB-0107 Any implied warranties of merchantability or fi tness for a particular purpose are limited to one year in duration. Under no circumstances shall T&S be liable for loss of use or any special...
  • Seite 2: Exploded View

    Exploded View * Some items are listed for instructional purposes and may not be sold as separate parts.
  • Seite 3 Part Number Guide Spray Valve Assembly Ring, Hold Down 000907-45 #27 Washer 010476-45 Body, Spray Valve 000065-40 Handle 011454-45 Nut, Handle 003198-45 Screw, Handle 003199-45 Nipple 000694-40 Cup, Spray 000019-40 Ring, Sprayhead 011475-45 Sprayface 011456-45 Screw, Sprayface 000913-45 Bonnet Assembly Asm, Bonnet 010594-40 Stem...
  • Seite 4: General Instructions

    General Instructions To replace worn parts: 5. Reassemble no.16 by inserting no.13 through all parts. Hold no.20 1. Shut off water supply and drain with pliers, and carefully screw no.13 lines. For ease of disassembly and into no.20 until screw feels tight. Do reassembly, the handle grip can be not use excessive force.
  • Seite 5: Instrucciones Generales

    Instrucciones Generales Para reemplazar las partes des- 5. Ensamble de nuevo la parte No.16 insertando la parte No.13 a través de gastadas: todas las partes. Sostenga la parte 1. Cierre la fuente principal de agua No.20 con el alicate y cuidadosa- y desagüe las tuberías.
  • Seite 6: Instructions Générales

    Instructions Générales Pour remplacer les parties 5. Pour remonter le N°.16 insérer N°.13 à travers tous les parties. usées: Tenir N°.20 avec les pinces et 1. Arrêter la réserve de l’eau et visser prudemment N°.13 dans N°.20 égoutter la tuyauterie. Pour la facilité jusqu’à...
  • Seite 7: Allgemeine Anleitungen

    Allgemeine Anleitungen 5. Nr. 16 wieder zusammensetzen, Ersatz von abgenutzten Teilen: Nr. 13 durch alle Teile führen Nr. 20 1. Wasser abstellen und Wasserlei- mit der Zange festhalten und Nr. 13 tungen entleeren. Zum einfachen sorgfältig in Nr. 20 einschrauben, bis Auseinandernehmen und Zusam- die Schraube festsitzt.
  • Seite 8 RELATED T&S BRASS PRODUCT LINE T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’ Phone: (864) 834-4102 Oude Nieuwveenseweg 84 Fax: (864) 834-3518 2441 CW Nieuwveen...
