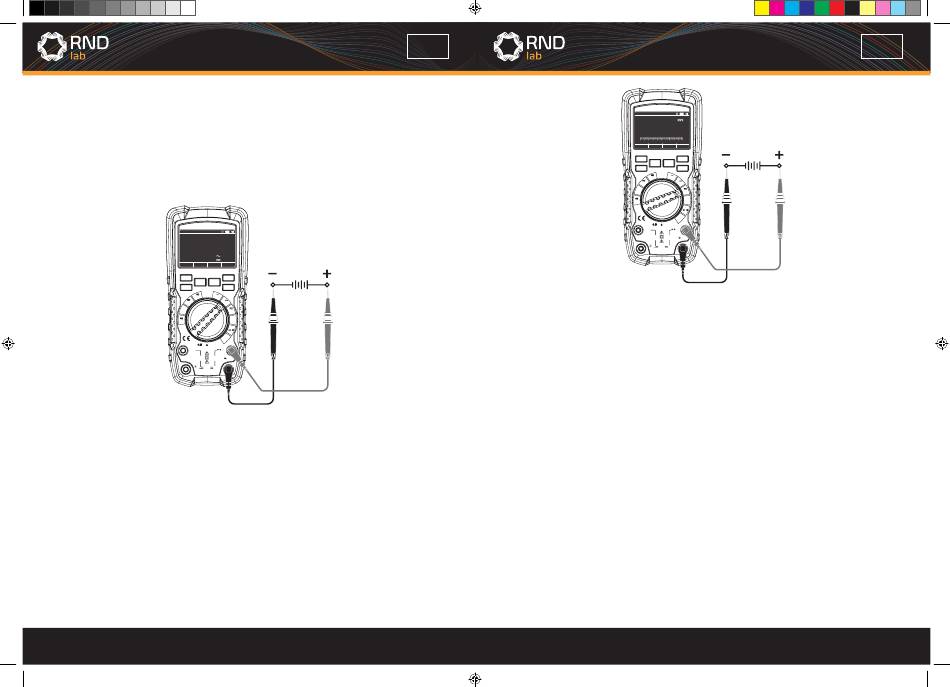

4-3.AC+DC Voltage Measurement
1. Set the function switch to the VDC AC+DC Position.
2. Insert the black test lead into the COM Input Jack and the red test lead into the Positive
Input Jacks.
3. Press the MODE Button (F2) to indicate "AC+DC" on the display.
4. Position the black test probe tip and red test probe tip respectively in the spots of the
circuit to be measured.
5. Read the AC+DC voltage in the display.
Auto range
06:32
V
AC+DC
5. 0000
0. 0000 V
5. 0000 V
GRAPH
MODE
SA VE
MAX
True RMS Autoranging Digital Multimeter
F1
F4
F2
F3
HOLD
RANGE
REL
OFF
V
10A
LPF
V
mA
AC+DC
4~20
mV
mA
%
µA
CAP
Temp
°C °F
AUT O POWER OFF
IP67
Bluetooth
WA TERPROOF
V
CAP
10A
Hz
%
Temp
30 sec MAX
CAT IV 600V
ever y 15 min
CAT III 1000V
A
10A
COM
800mA
mA
FUSED
4-4.mV Voltage Measurement
CAUTION: Do not measure mV voltages if a motor on the circuit is being switched ON or
OFF. Large voltage surges may occur that can damage the meter.
1. Set the function switch to the mVAC/DC Position.
2. Insert the black test lead into the COM Input Jack and the red test lead into the Positive
Input Jacks.
3. Press the MODE Button (F2) to indicate "AC" or "DC" on the display.
4. Position the black test probe tip and red test probe tip respectively in the spots of the
circuit to be measured.
5. Read the mV voltage in the display.
10
Hz
%
EN
4-5.DC Current Measurement
CAUTION: Do not make 10A current measurements for longer than 30 seconds, Exceeding
30
seconds may cause damage to the meter and/or the test leads.
1. Insert the black test lead banana plug into the COM Input Jack.
2. For current measurements up to 5000μA DC, set the function switch to the μA AC/DC
Position and insert the red test lead banana plug into the μA/mA Input Jack.
3. For current measurements up to 500mA DC, set the function switch to the mA AC/DC
Position and insert the red test lead banana plug into the μA/mA Input Jack.
4. For current measurements up to 10A DC, set the function switch to the 10A AC/DC
Position and insert the red test lead banana plug into the 10A Input Jack.
5. Press the MODE Button (F2) to indicate "DC" on the display.
6. Remove power from the circuit under test, then open up the circuit at the point where
you wish to measure current.
7. Touch the black test probe tip to the negative side of the circuit; Touch the red test probe
tip to the positive side of the circuit.
8. Apply power to the circuit.
9. Read the current in the display.
Auto range
06:32
mV
500. 00
-500
-300
-100
01
00
300
500m V
GRAPH
MODE
SA VE
MAX
True RMS Autoranging Digital Multimeter
F1
F4
F2
F3
HOLD
RANGE
REL
OFF
V
10A
LPF
V
mA
AC+DC
4~20
mV
mA
%
Hz
µA
%
CAP
Temp
°C °F
AUT O POWER OFF
IP67
Bluetooth
V
CAP
WA TERPROOF
10A
Hz
%
Temp
30 sec MAX
CAT IV 600V
ever y 15 min
CAT III 1000V
A
10A
800mA
COM
mA
FUSED
EN
11
