Installation Instructions - Sharp EBR-4810 Installationsanleitung

1. (For U.K. use)
A cut-out will have to be provided in the side of the kitchen cabinet for the plug of the oven.
N.B.The mains plug must be accessible after installation or an all-pole switch disconnection must be
provided with a contact separation of at least 3 mm in each pole.
(For Continental use)
The electric outlet must be installed at 150 mm high from the floor of the built-in cabinet and at 50 mm
from the right wall of the built-in cabinet as shown in Fig. 1. The mains plug must be accessible after
installation or the oven must be connected to an electric circuit provided with an all-pole switch (contact
gap no less than 3 mm) to disconnect the oven in case of danger. A safety-device like a fuse in the
installation may be used as a switch.
2. Remove the built-in kit from the package.
3. Set the spacing brackets
a distance of 7mm between the front end of the shelf and the spacing brackets, and attach them with
9
the four screws , as shown in Fig. 1.
Caution: The arrow marks on each spacing bracket should be pointing towards you.
F
4. Remove the screw
G
tab of the air duct
H
5. Remove the screw
tabs of the back plate
6. Remove the one screw
7. Insert the tab of the exhaust duct
to the rear of the oven with one screw
8. Let the power supply cord pass through the hole of the lower side of the intake duct
9. Install the intake duct
in Fig. 4.
Caution: Avoid pinching the power supply cord between the oven and the intake duct
10. Remove the backing paper from the three cushions
3
intake duct and attach the cushions
11. (For U.K. use)
Place the oven on the spacing brackets on the shelf of the kitchen cabinet feeding the power supply cord
through the prepared cut-out.
(For Continental use)
Place the oven on the spacing brackets on the shelf of the kitchen cabinet.
12. Connect the oven to the power supply.
Caution: a. In U.K., connect the oven to the power supply 230-240 V, 50 Hz.
b. In the Continent, connect the oven to the power supply 230 V, 50 Hz.
13. Adjust the position of the oven so that the feet of the oven are fitted into the recesses of the spacing
brackets as shown in Fig. 2.
Caution: Make sure that the power supply cord does not touch the air vent openings behind the oven.
14. Place the built-in frame element
horizontally. Secure loosely to the kitchen cabinet with two screws
15. Insert two built-in frame side elements
And secure two screws
and left built-in frame side elements
Note: Fit the hole of the built-in frame side element
16. Install the second built-in frame element
the oven. And secure the built-in frame element
8
to the kitchen cabinet with two screws
Caution: Make sure that 7.5 mm of the frames (upper and lower) and cabinet overlap each other as
shown in Fig. 8, or the kitchen cabinet door may touch the built-in frame elements.

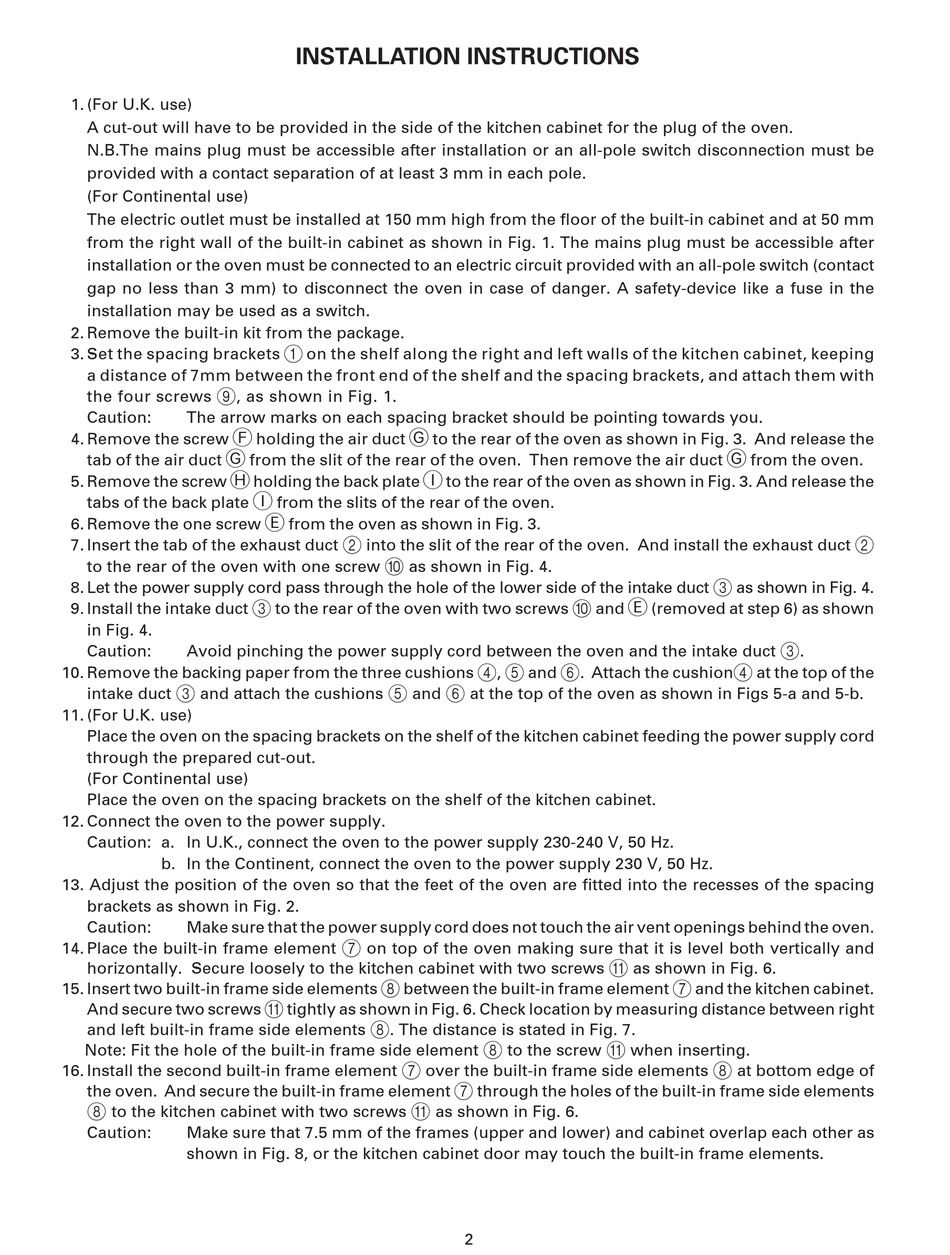

INSTALLATION INSTRUCTIONS
