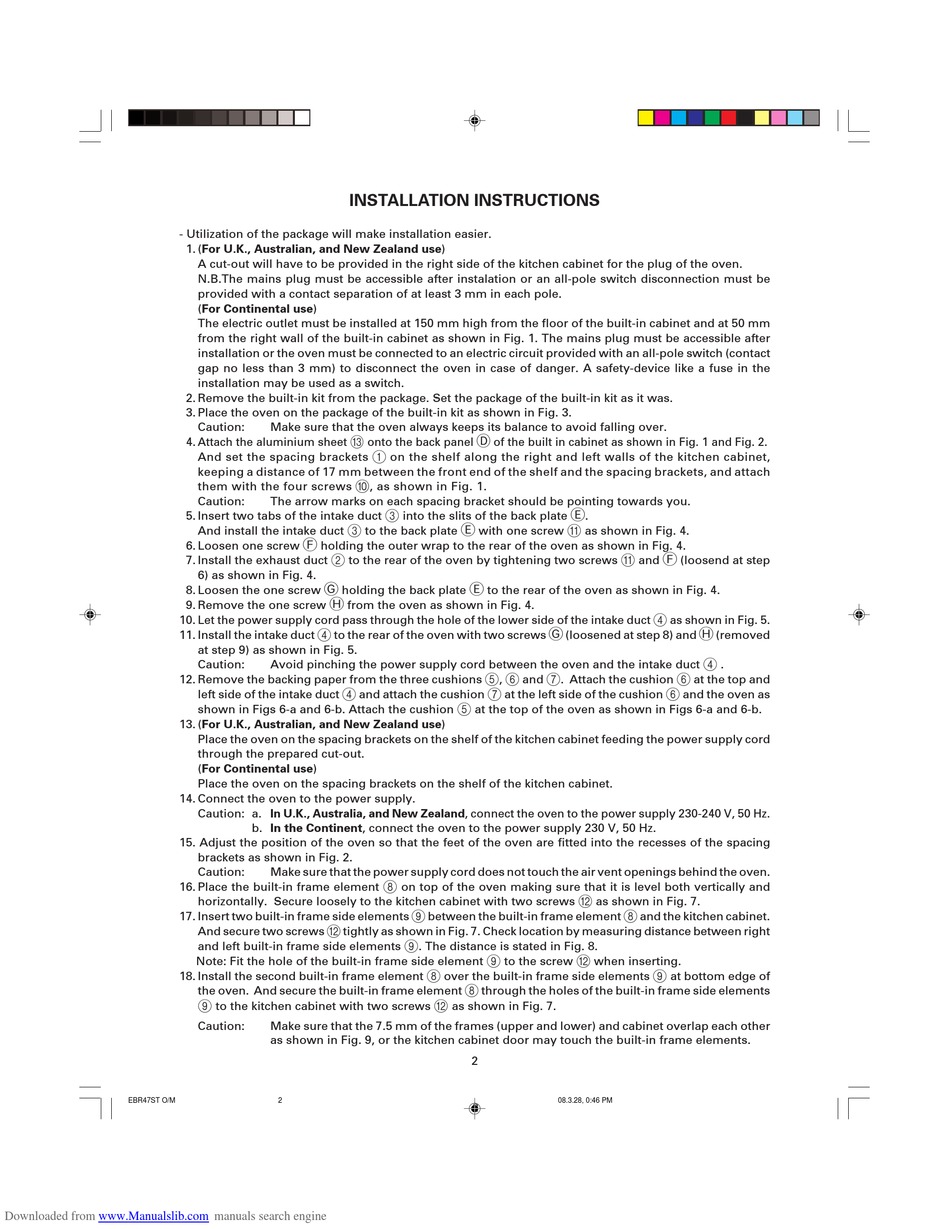

INSTALLATION INSTRUCTIONS

1. (For U.K., Australian, and New Zealand use)
A cut-out will have to be provided in the right side of the kitchen cabinet for the plug of the oven.
N.B.The mains plug must be accessible after instalation or an all-pole switch disconnection must be
provided with a contact separation of at least 3 mm in each pole.
(For Continental use)
The electric outlet must be installed at 150 mm high from the floor of the built-in cabinet and at 50 mm
from the right wall of the built-in cabinet as shown in Fig. 1. The mains plug must be accessible after
installation or the oven must be connected to an electric circuit provided with an all-pole switch (contact
gap no less than 3 mm) to disconnect the oven in case of danger. A safety-device like a fuse in the
installation may be used as a switch.
2. Remove the built-in kit from the package. Set the package of the built-in kit as it was.
3. Place the oven on the package of the built-in kit as shown in Fig. 3.
Caution: Make sure that the oven always keeps its balance to avoid falling over.
C
4. Attach the aluminium sheet
And set the spacing brackets
keeping a distance of 17 mm between the front end of the shelf and the spacing brackets, and attach
0
them with the four screws
Caution: The arrow marks on each spacing bracket should be pointing towards you.
5. Insert two tabs of the intake duct
3
And install the intake duct to the back plate
F
6. Loosen one screw holding the outer wrap to the rear of the oven as shown in Fig. 4.
2
7. Install the exhaust duct to the rear of the oven by tightening two screws
6) as shown in Fig. 4.
G
8. Loosen the one screw holding the back plate
H
9. Remove the one screw from the oven as shown in Fig. 4.
4
to the rear of the oven with two screws
at step 9) as shown in Fig. 5.
Caution: Avoid pinching the power supply cord between the oven and the intake duct
4
left side of the intake duct and attach the cushion
shown in Figs 6-a and 6-b. Attach the cushion
Place the oven on the spacing brackets on the shelf of the kitchen cabinet feeding the power supply cord
through the prepared cut-out.
(For Continental use)
Place the oven on the spacing brackets on the shelf of the kitchen cabinet.
Caution: a. In U.K., Australia, and New Zealand, connect the oven to the power supply 230-240 V, 50 Hz.
b. In the Continent, connect the oven to the power supply 230 V, 50 Hz.
brackets as shown in Fig. 2.
Caution: Make sure that the power supply cord does not touch the air vent openings behind the oven.
horizontally. Secure loosely to the kitchen cabinet with two screws
B
And secure two screws tightly as shown in Fig. 7. Check location by measuring distance between right
and left built-in frame side elements
Note: Fit the hole of the built-in frame side element
the oven. And secure the built-in frame element
9
to the kitchen cabinet with two screws
Caution: Make sure that the 7.5 mm of the frames (upper and lower) and cabinet overlap each other
as shown in Fig. 9, or the kitchen cabinet door may touch the built-in frame elements.
2
