Setup

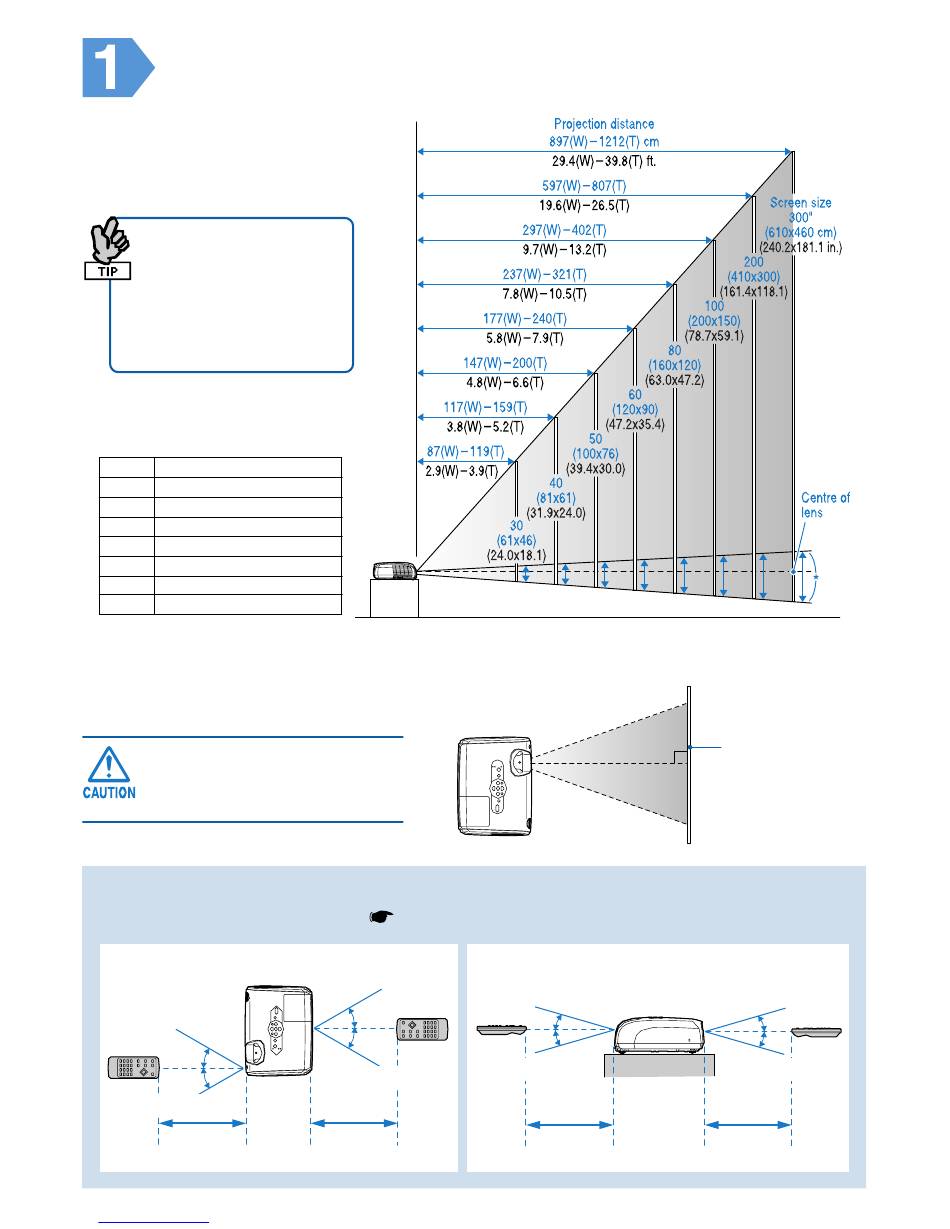

See the illustration on the right
to choose the best position for
your projected image. The
values are only a guide.
• After making keystone
correction, the projected
image will be smaller.
• You can project a better
quality of image when
z o o m i s s e t t o t h e
maximum.
* Distance from the center of the
lens to the base of the screen.
4 to -2 (1.7 to -0.9)
30"
6 to -3 (2.3 to -1.1)
40"
7 to -4 (2.8 to -1.4)
50"
9 to -4 (3.4 to -1.7)
60"
12 to -6 (4.5 to -2.3)
80"
14 to -7 (5.7 to -2.9)
100"
29 to -15 (11.3 to -5.7)
200"
43 to -22 (17.0 to -8.6)
300"
Setup this projector parallel to the
screen.
Do not stand this projector
upright. This may damage
your projector.
● Using the remote control ●
Insert the batteries provided.
Operating Range (Left and Right)
Approx. 30°
Approx. 30°
Approx.
2
