SensControl II
Operating SensControl II
Operating SensControl II

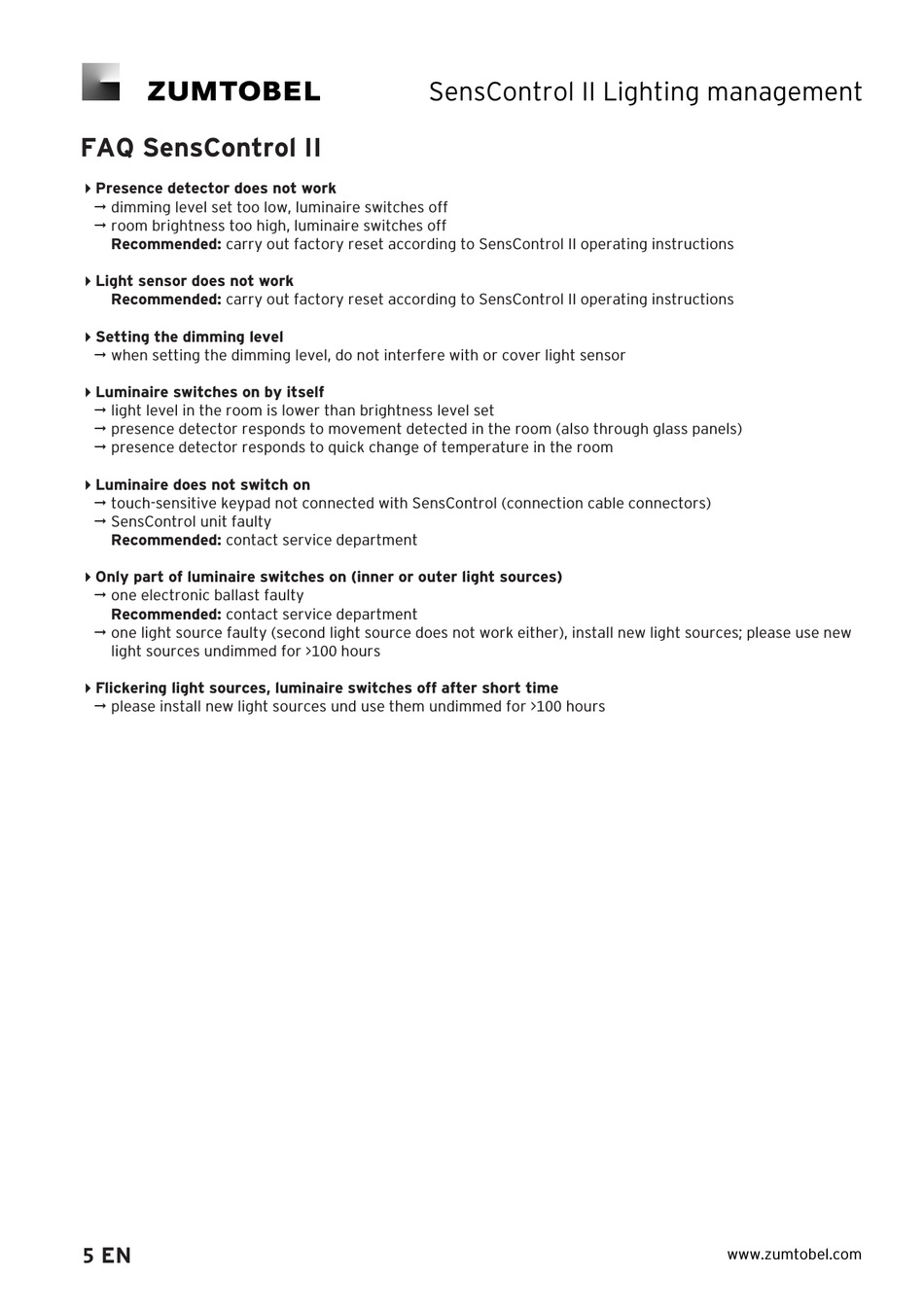

FAQ SensControl II
pPresence detector does not work
dimming level set too low, luminaire switches off
room brightness too high, luminaire switches off
Recommended: carry out factory reset according to SensControl II operating instructions
pLight sensor does not work
Recommended: carry out factory reset according to SensControl II operating instructions
pSetting the dimming level
when setting the dimming level, do not interfere with or cover light sensor
pLuminaire switches on by itself
Operation
Operation
light level in the room is lower than brightness level set
Switch on luminaire
Switch on luminaire
presence detector responds to movement detected in the room (also through glass panels)
presence detector responds to quick change of temperature in the room
Switch off luminaire
Switch off luminaire
Manually adjust illuminance
Manually adjust illuminance
pLuminaire does not switch on
(dimming)
(dimming)
touch-sensitive keypad not connected with SensControl (connection cable connectors)
SensControl unit faulty
Recommended: contact service department
pOnly part of luminaire switches on (inner or outer light sources)
one electronic ballast faulty
Recommended: contact service department
one light source faulty (second light source does not work either), install new light sources; please use new
light sources undimmed for >100 hours
pFlickering light sources, luminaire switches off after short time
Parameters and factory settings
Parameters and factory settings
please install new light sources und use them undimmed for >100 hours
Tip
Tip
Unplug the power
Unplug the power
supply and connect
supply and connect
again while pressing
again while pressing
the key to reset the
the key to reset the
factory settings.
factory settings.
a LED flashes once to
a LED flashes once to
confirm.
confirm.
Modifying settings
Modifying settings
5 EN
2 EN
2 EN
SensControl II Lighting management
SensControl II Lighting management
Operation of SensControl II is via keys on the luminaire. The functions of the keys
Operation of SensControl II is via keys on the luminaire. The functions of the keys
differ according to appearance:
differ according to appearance:
Single-channel version
Single-channel version
without separation of
without separation of
indirect/direct light
indirect/direct light
p Press lower/upper key. p Briefly press upper key. p Briefly press lower key.
p Press lower/upper key. p Briefly press upper key. p Briefly press lower key.
p Press lower key.
p Press lower key.
p Press and hold upper
p Press and hold upper
key until the desired
key until the desired
illuminance level is set.
illuminance level is set.
a LED flashes rapidly until max. or min. value is reached.
a LED flashes rapidly until max. or min. value is reached.
p Release the key and press and hold again to alternate the direction of adjustment.
p Release the key and press and hold again to alternate the direction of adjustment.
The set value for constant lighting control is automatically restored following a
The set value for constant lighting control is automatically restored following a
longer period of absence (at least 4 hours) or following a mains disconnection.
longer period of absence (at least 4 hours) or following a mains disconnection.
The following parameters are available for individual adjustment of functions:
The following parameters are available for individual adjustment of functions:
Parameter
Parameter
Constant lighting control
Constant lighting control
Set value for constant
Set value for constant
lighting control
lighting control
Delay time
Delay time
Control
Control
Lockout
Lockout
Tip
Tip
If you do not press a key within a twenty second period during adjustment of
If you do not press a key within a twenty second period during adjustment of
constant lighting control, presence detection, lockout or automatic control,
constant lighting control, presence detection, lockout or automatic control,
SensControl II switches back to operating mode and the modifications are not
SensControl II switches back to operating mode and the modifications are not
saved. If you have pressed keys erroneously, wait 20 seconds and repeat the
saved. If you have pressed keys erroneously, wait 20 seconds and repeat the
adjustment.
adjustment.
Dual-channel version
Dual-channel version
with separate indirect/direct light
with separate indirect/direct light
Indirect lighting
Indirect lighting
p Press and hold upper
p Press and hold upper
key until the desired
key until the desired
illuminance level is set.
illuminance level is set.
During dimming take care that you do not press both
During dimming take care that you do not press both
keys simultaneously, as in this case SensControl II
keys simultaneously, as in this case SensControl II
switches to setting mode.
switches to setting mode.
Adjustable values
Adjustable values
activated/deactivated
activated/deactivated
5 - 100 %
5 - 100 %
10 seconds (demo mode),
10 seconds (demo mode),
1, 5, 15, 30 minutes,
1, 5, 15, 30 minutes,
Presence detection deactivated
Presence detection deactivated
semi-automatic/ fully
semi-automatic/ fully
automatic
automatic
activated/deactivated
activated/deactivated
Mat.-Nr. 00104565/5/P- 05.10
Direct lighting
Direct lighting
p Press and hold lower
p Press and hold lower
key until the desired
key until the desired
illuminance level is set.
illuminance level is set.
Factory setting
Factory setting
activated
activated
15 minutes
15 minutes
fully automatic
fully automatic
activated
activated
www.zumtobel.com
www.zumtobel.com
