Fuel HT 200 Benutzerhandbuch Seite 23

Contents of hardware pack:
Part no.
10
13
17
55
72
73
78
80
81
84
2. Assembling

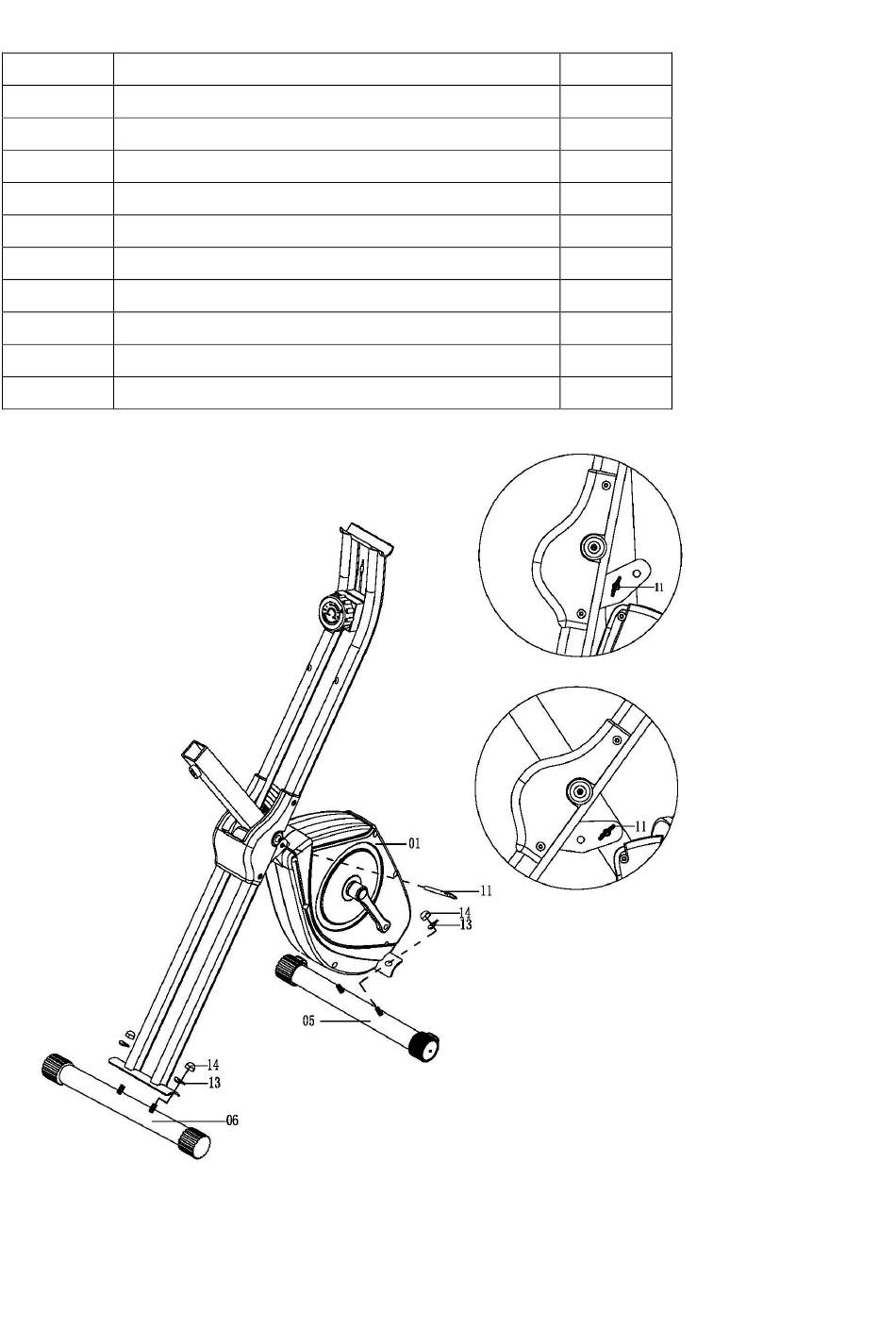

STEP 1
Pull out the lock pin (11) from main frame (01), unfold main frame (01) and secure by re-insertion of the
lock pin (11). Attach front stabilizer (05) to main frame (01) with 2 curved washers (13) and 2 domed nuts
(14). Repeat this step for the rear stabilizer (06).
Description
Club knob
Curved washer ø8.3xø22
Nylon nut M8
Flat washer ø8.3xø25
Tool: Allen key
Tool: Hex head wrench
Screw M8x50L
Screw M8x45L
Screw M8x40L
Spring washer
Q´ty
23
1
2
2
2
1
1
2
4
2
4
