Installation
1.

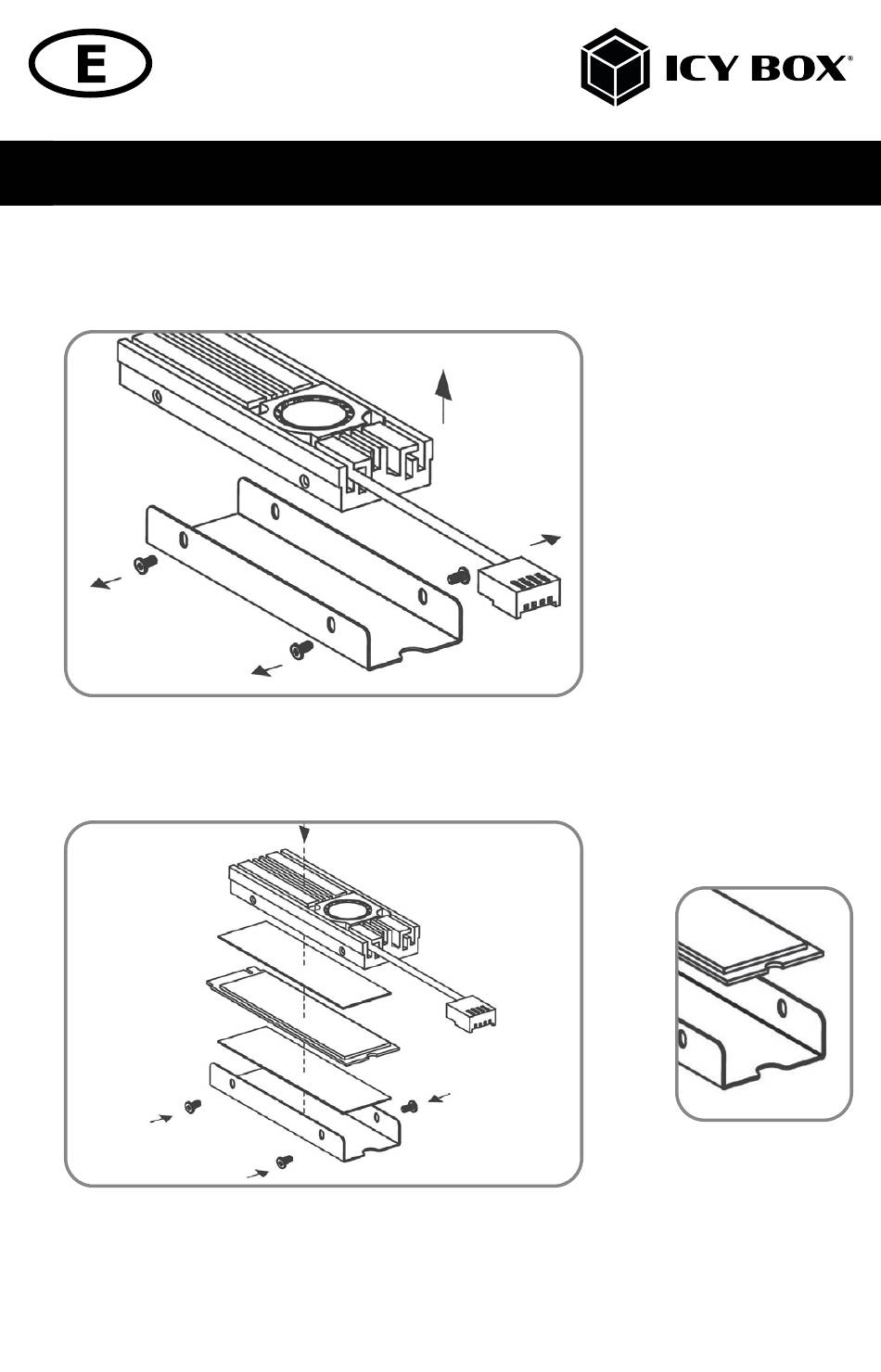

Unscrew all four screws of the counter plate on the bottom of the heat sink.
2.
Install both thermal pads. Install the first thermal pad on the counter plate and the second thermal pad
on the top of your M.2 SSD. Now gently press the SSD together with the thermal pad on the counter
plate. Then press the M.2 SSD together with the counter plate on the bottom of the main heat sink and fix
it with all four screws.
Note: Make sure that the contacts of the M.2 SSD protrude over the counter plate. Also, when installing a
22x 80 mm M.2 SSD, make sure that the M.2 SSD and the counter plate are aligned in the same way (notch
at the end).
Manual IB-M2HSF-703
