IB-RD3264+USE2 Quick Start guide 4-bay RAID System with LCM Panel English / Deutsch / Français Downloaded from www.Manualslib.com manuals search engine...
Seite 2
Downloaded from www.Manualslib.com manuals search engine...
IB-RD3264+USE2 4-bay RAID System with LCM Panel ContEntS Package Content ........................5 Front View ..........................6 Rear View ..........................6 Top View ..........................6 Installing The RAID System ......................6 RAID Configuration ........................9 With LCM Operation ........................ 9 LCM Basic Menu ........................
Seite 4
Downloaded from www.Manualslib.com manuals search engine...

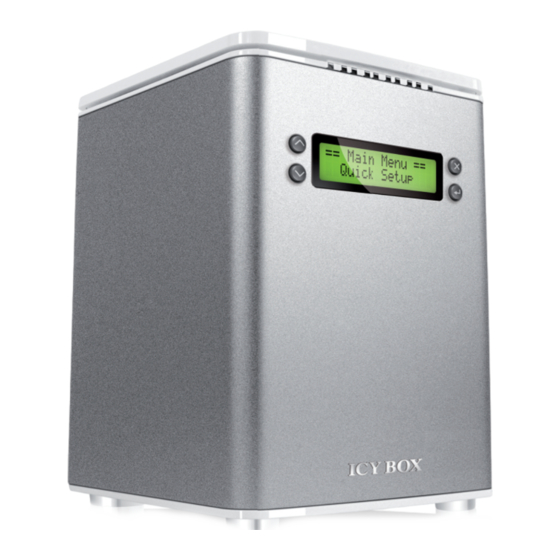

IB-RD3264+USE2 4-bay RAID System with LCM Panel This 4-bay RAID System with LCM panel and RAID MASTER (Graphic User Interface) provides massive storage capacity and advanced RAID configuration options with RAID 0, RAID 1, Span, Clone, RAID 5, RAID 1+0, and optional HotSpare in a desktop storage device.
IB-RD3264+USE2 4-bay RAID System with LCM Panel fRont vIEw / REAR vIEw toP vIEw InStALLIng thE RAID SyStEM To assemble the RAID System, please follow the steps listed in the instructions below: Place the RAID System with its Front View facing you.
Seite 7
IB-RD3264+USE2 4-bay RAID System with LCM Panel Take out the handles from the RAID System itself and locate the HDD screws in the packaging box. Position the handle to the HDD end, which is facing away from the interface connectors, and align it with the screw hole openings.
Seite 8
IB-RD3264+USE2 4-bay RAID System with LCM Panel Place RAID System with its Front View facing you and the top lid on. Push the lid firmly downward and toward you, back to front. Connect the AC/DC power adapter. Insert both ends of the USB 2.0 cable (or eSATA, FireWire 400, FireWire 800) into the correspondi- ng port of the RAID System and the host.
IB-RD3264+USE2 4-bay RAID System with LCM Panel You are now ready to begin using your RAID System! RAID ConfIgURAtIon with LCM operation The LCM panel on the RAID System will display basic information for the inserted HDDs, RAID System itself, and basic RAID function operations.
Seite 10
IB-RD3264+USE2 4-bay RAID System with LCM Panel For more information about the LCM Process Tree, please go to the user manual in the provided CD. If you wish to assign and create the RAID using the LCM only, please follow the steps listed in the in- structions provided below: Turn "On"...
Seite 11
IB-RD3264+USE2 4-bay RAID System with LCM Panel Use the Up ( ) and Down ( ) Buttons to select which RAID Mode to use. Enter the "password". After verifying the "password", it will display "Are You Sure? Enter: Yes Esc: No"...
IB-RD3264+USE2 4-bay RAID System with LCM Panel with RAID MAStER operation The RAID MASTER is a newly-designed GUI Software specifically for our 4-bay RAID System. The drivers of the RAID MASTER for both PC and MAC are provided via CD or our website. It provides a more conve- nient yet modern way to manage your RAID System.
IB-RD3264+USE2 4-bay RAID System with LCM Panel Advance Mode Menu Email Notification & Event Setttings: Available to set up Email Notification (such as events of errors, alert, and change of the RAID System) and Event Settings based on preference. Advanced RAID Configuration: Similar to Basic RAID configuration with additional options.
IB-RD3264+USE2 4-bay RAID System with LCM Panel nUMBER of DISkS SUPPoRtIng LED InDICAtoRS EACh RAID MoDE Power LED x 1 Indicators Color number of RAID Modes Disk in RAID Power on Green RAID 0 (Striping) 2 to 4 Power off...
IB-RD3264+USE2 4-fach RAID System mit LCM Panel Das 4-Bay RAID System mit LCM Panel und RAID MASTER (Graphic User Interface) bietet größte Spei- cherkapazität und fortschrittliche RAID Konfigurationsauswahl in einem eleganten Desktop-Storagegerät, wie RAID 0, RAID 1, Span, Clone, RAID 5, RAID 1+0, und optionale HotSpare.
IB-RD3264+USE2 4-fach RAID System mit LCM Panel fRontAnSICht / RüCkAnSICht AnSICht von oBEn EInRIChtEn DES RAID SyStEM Bitte führen Sie die nachstehenden Schritte vollständig aus, um das RAID System einzurichten. Stellen Sie das RAID System mit der Vorderseite vor sich hin. Legen Sie die Hand auf den vorderen und die andere Hand auf den hinteren Rand des Deckels.
Seite 17
IB-RD3264+USE2 4-fach RAID System mit LCM Panel Heben Sie den Deckel ab und nehmen Sie die Handgriffe aus dem Gehäuse und die Festplatten- Schrauben aus der Packung heraus. Legen Sie den Handgriff an die rechte Seite der Festplatte und bringen Sie die Schraubenlöcher mit denen der Festplatte in Übereinstimmung.
Seite 18
IB-RD3264+USE2 4-fach RAID System mit LCM Panel Stellen Sie das RAID System mit der Vorderseite vor sich hin und legen Sie den Deckel auf das Ge- häuse. Schieben Sie den Deckel mit Ihren beiden Daumen gleichzeitig in Pfeilrichtung. Schließen Sie das Netzteil an das Gehäuse an.
IB-RD3264+USE2 4-fach RAID System mit LCM Panel Jetzt ist das RAID System zur Nutzung bereit!! RAID konfIgURAtIon Betreiben mit LCM Der LCM auf dem RAID System zeigt die Grundinformation der eingesetzten Festplatten, des RAID Systems,und der RAID Grundfunktionen. Bitte benutzen Sie die LCM Buttons zum Betreiben.
Seite 20
IB-RD3264+USE2 4-fach RAID System mit LCM Panel Weitere Informationen über die LCM Baumstruktur, finden Sie im User’s Manual in der beigefügten CD. Wenn Sie ein RAID Modus nur durch LCM erstellen möchten, bitte folgen Sie die in dieser Anleitungen vorhandenen Schritte: Schalten Sie das RAID System ein.
Seite 21
IB-RD3264+USE2 4-fach RAID System mit LCM Panel Benutzen Sie die Aufwärts ( ) und Abwärtsbuttons ( ) um ein RAID Modus auszuwählen. Geben Sie Ihr "password" ein. Nachdem Ihr "password" überprüft worden ist, wird "Are You Sure?" gezeigt. Drücken Sie Enter ( ) zur Bestätigung, oder Esc (...
IB-RD3264+USE2 4-fach RAID System mit LCM Panel Betreiben mit RAID MAStER Der RAID MASTER ist eine neu erschaffene GUI Software, die für unser 4-Bay RAID System geeignet ist. Die Treiber des RAID MASTER für PC und MAC werden via CD oder unsere Website geboten. Der RAID MASTER bietet eine nicht nur praktische sondern auch fortschrittliche Weise, Ihr RAID System zu verwalten.
IB-RD3264+USE2 4-fach RAID System mit LCM Panel Advance Mode Menü Emailbenachrichtigung und Ereigniseinstellung: Emailbenachrichtigung einzurich- ten.(z.B Fehler Hinweise, Alarm, und Änderungen des RAID Systems) und Ereignisein- stellungen basierend auf Ihren persönlichen Prioritäten. Advanced RAID Konfiguration: ist der RAID Grundkonfiguration ähnlich und noch mit zusätzlichen Optionen.
IB-RD3264+USE2 4-fach RAID System mit LCM Panel ERfoRDERLIChE fEStPLAttEn- LED AnzEIgEn AnzAhL JEDES RAID MoDUS Ein/Aus LED x 1 festplatten- Anzeige farbe RAID Modus anzahl in RAID Power on Grün RAID 0 (Striping) 2 bis 4 Power off Keine...
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD Ce Système 4-baies RAID avec écran LCD et MASTER RAID (Interface Utilisateur Graphique) fourni une haute capacité de stockage et une configuration RAID avancée au choix: RAID 0, RAID 1, Span, Clone, RAID 5, RAID 1+0 ainsi qu’un HotSpare optionnel.
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD vUE AvAnt / vUE ARRIèRE vUE DE DESSUS InStALLAtIon DU SyStèME RAID Pour assembler votre Système RAID, veuillez suivre les étapes indiquées dans les instructions ci-après: Placez le Système RAID face avant, devant vous.
Seite 27
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD Retirez les poignées du boitier et munissez-vous des vis pour disques contenues dans l’emballage. Positionnez les poignées vers l’avant des disques, face opposée de ses connecteurs et alignez les ouvertures en face des pas de vis du disque.
Seite 28
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD Placez le Système RAID face avant devant vous et remettez le couvercle. Appuyez fermement sur les coins du couvercle en le ramenant vers vous, de l’arrière vers l’avant. Connectez l’adaptateur secteur. Reliez les deux extrémités du câble USB 2.0 (ou eSATA, FireWire 400, FireWire 800) sur le port du Système RAID correspondant et de l’ordinateur...
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD Tout est prêt pour commencer à utiliser votre Système RAID! ConfIgURAtIon RAID Par l’écran LCD L’écran LCD du Système RAID vous affichera des informations basiques sur les disqus insérés, le système lui-même et des fonctions RAID de base.
Seite 30
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD Pour de plus amples informations concernant l’arborescence du Menu, veuillez vous référer au manuel de l’utilisateur contenu sur le CD fourni. Si vous souhaitez attribuer ou créer le RAID en utilisant seulement le Menu du LCD, veuillez suivre les étapes d’installation suivantes:...
Seite 31
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD Utilisez les boutons Haut ( ) et Bas ( ) pour choisir le mode RAID à utiliser. Tapez le "mot de passe". Après avoir vérifié le mot de passe, un message apparaitra : "Are You Sure? Enter: Yes Esc: No".
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD Le programme RAID MAStER Le RAID MASTER est un tout nouveau programme spécialement conçu pour notre Système 4-Baies RAID. Les pilotes RAID MASTER pour PC et MAC sont fournis sur le CD ou présents sur notre site web. Par l’intermédiaire d’une interface moderne et agréable, il apporte une plus grande facilité...
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD Menu Advanced Mode Email Notification and Event Settings: Permet d’envoyer des notifications par mail (comme un rapport d’erreur, une alerte, un changement du système RAID) basées sur vos préférences. Advanced RAID Configuration: Similaire à la configuration RAID basique avec des options additionnelles.
IB-RD3264+USE2 Système 4-baies RAID avec écran LCD noMBRE DE DISQUES SUPPoR- voyAntS LED tAnt ChAQUE MoDE RAID Power LED x 1 nombre de Etat Couleur Modes RAID disques en RAID Power on Verte RAID 0 (Striping) 2 à 4...
