6. LED Function
HDD connected:
HDD access:
Fan failure:
Temperature failure:
7. Technical Data
HDD/SSD
HDD height
Form factor
Dimension (WxHxD)
Material
HDD Interface support SATA I/II/III (6 Gbit/s)
Weight
Overheating temp.
Cooling fan

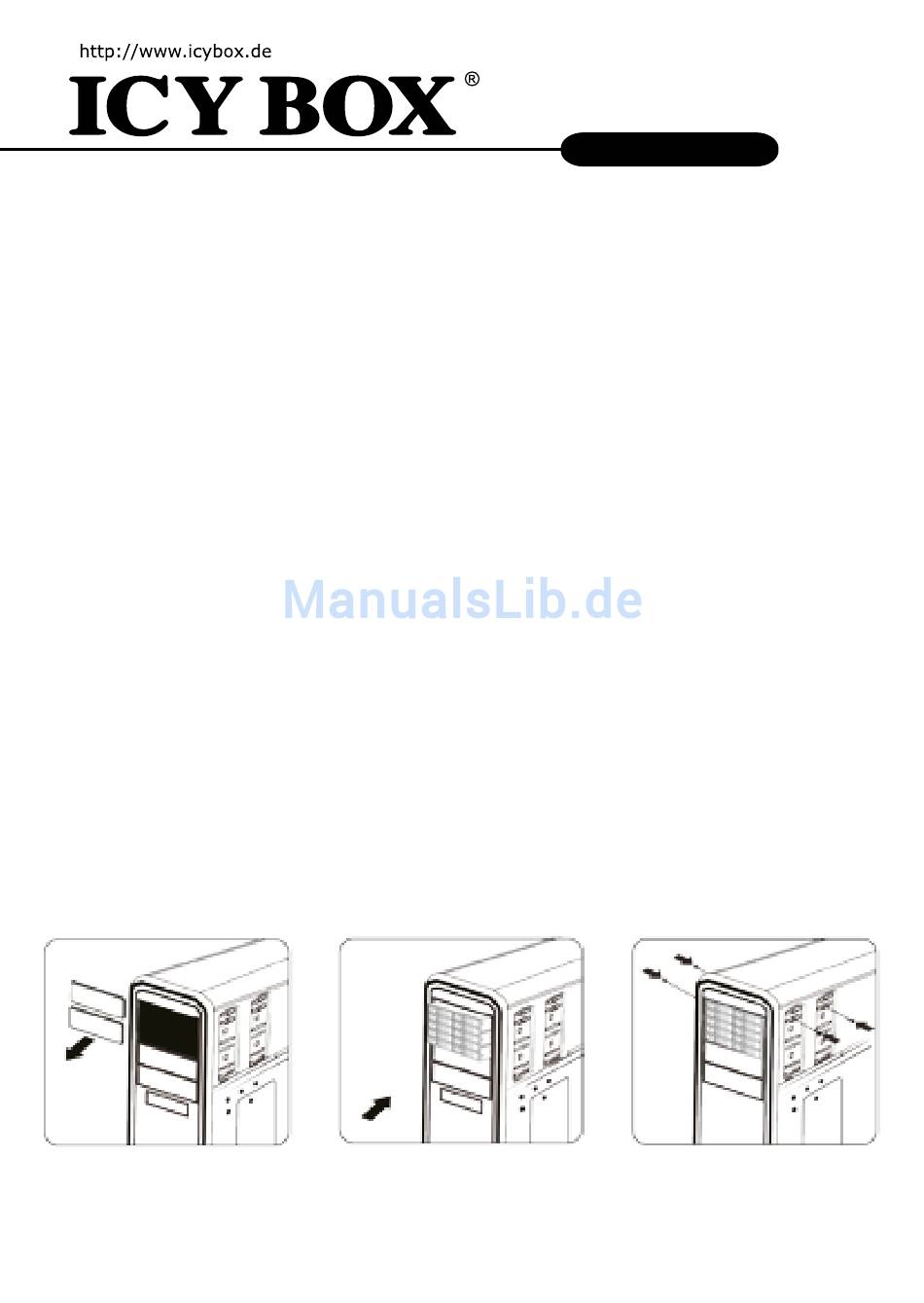

8. Installation
1.
Turn OFF the power to your computer and any other connected peripheral devices.
2.
Unplug the power cord from the back of the computer and remove your computer's cover.
3.
Put the Backplane in one free 2x 5.25" bay and fix it with the screws.
4.
Connect the 8x red SATA connectors to the referring connectors on the main board.
5.
Connect the 2x internal Molex power cables to the power supply of your PC. Repla-
ce the computer cover and reconnect the power cord.
LED 1.
= blue
LED 1.
= pruple blinking
LED 3.
= red
LED 4.
= red
8x 2.5" SATA/SAS HDD/SSD
6 ~ 15 mm
2x 5.25" bay
159x146x85 mm
Aluminum with anti-rust coating
SAS I/II (6 Gbit/s)
1.3 kg
60°C
1x 7x7 cm / up to 3000rpm
IB-2280SSK
