RAVAK CAMPANULA Montageanleitung Seite 2

GB

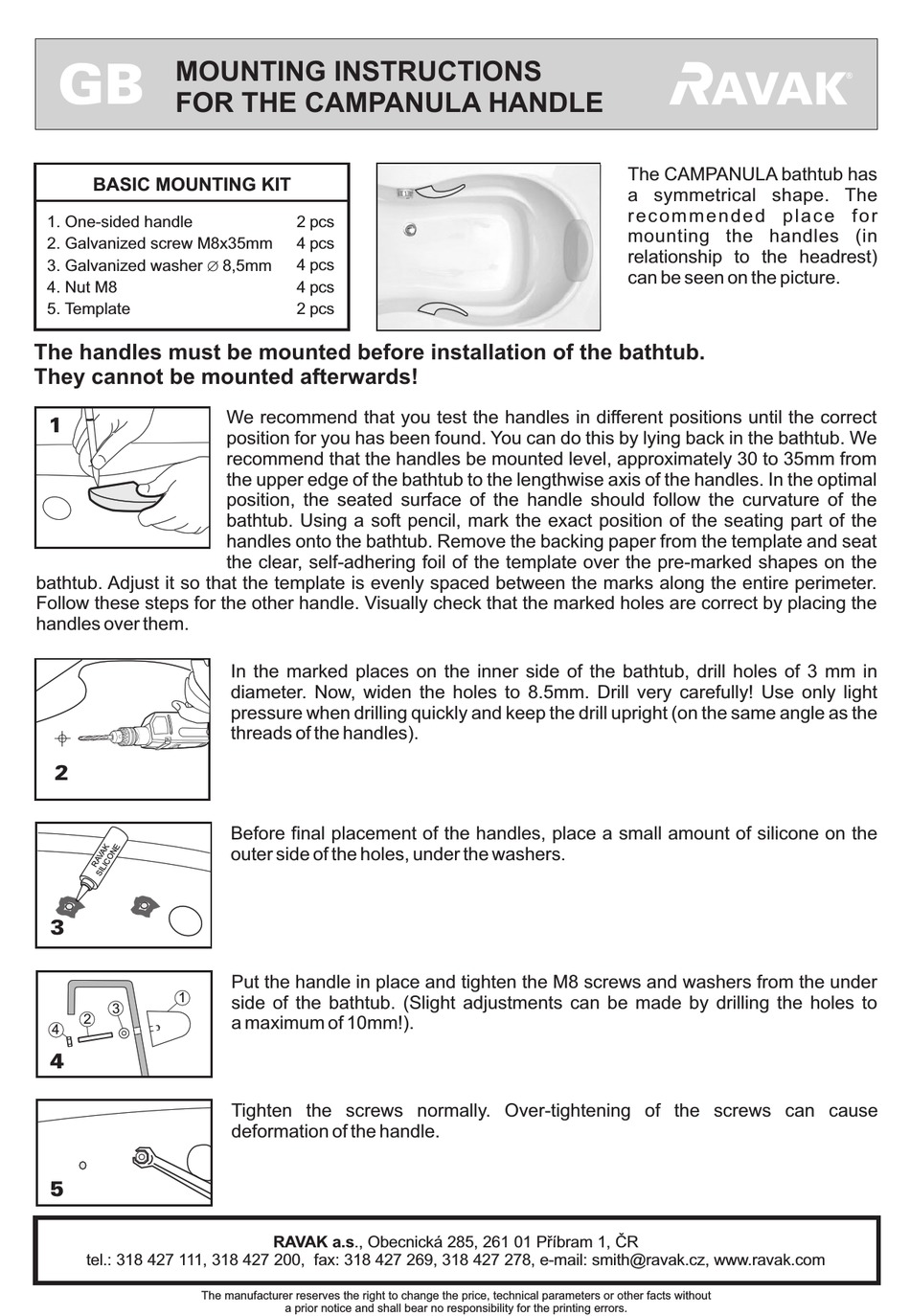

MOUNTING INSTRUCTIONS
FOR THE CAMPANULA HANDLE
BASIC MOUNTING KIT
1. One-sided handle
2. Galvanized screw M8x35mm
3. Galvanized washer
4. Nut M8
5. Template
The handles must be mounted before installation of the bathtub.
They cannot be mounted afterwards!
1
bathtub. Adjust it so that the template is evenly spaced between the marks along the entire perimeter.
Follow these steps for the other handle. Visually check that the marked holes are correct by placing the
handles over them.
2
3
1
3
2
4
4
5
tel.: 318 427 111, 318 427 200, fax: 318 427 269, 318 427 278, e-mail: smith@ravak.cz, www.ravak.com
The manufacturer reserves the right to change the price, technical parameters or other facts without
2 pcs
4 pcs
Æ
8,5mm 4 pcs
4 pcs
2 pcs
We recommend that you test the handles in different positions until the correct
position for you has been found. You can do this by lying back in the bathtub. We
recommend that the handles be mounted level, approximately 30 to 35mm from
the upper edge of the bathtub to the lengthwise axis of the handles. In the optimal
position, the seated surface of the handle should follow the curvature of the
bathtub. Using a soft pencil, mark the exact position of the seating part of the
handles onto the bathtub. Remove the backing paper from the template and seat
the clear, self-adhering foil of the template over the pre-marked shapes on the
In the marked places on the inner side of the bathtub, drill holes of 3 mm in
diameter. Now, widen the holes to 8.5mm. Drill very carefully! Use only light
pressure when drilling quickly and keep the drill upright (on the same angle as the
threads of the handles).
Before final placement of the handles, place a small amount of silicone on the
outer side of the holes, under the washers.
Put the handle in place and tighten the M8 screws and washers from the under
side of the bathtub. (Slight adjustments can be made by drilling the holes to
a maximum of 10mm!).
Tighten the screws normally. Over-tightening of the screws can cause
deformation of the handle.
RAVAK a.s., Obecnická 285, 261 01 Pøíbram 1, ÈR
a prior notice and shall bear no responsibility for the printing errors.
The CAMPANULA bathtub has
a symmetrical shape. The
r e c o m m e n d e d p l a c e f o r
mounting the handles (in
relationship to the headrest)
can be seen on the picture.
