Auto torch consumables:
037496 (x1)
45A
039292 (x1)
De ector
039308 (x1)
De ector

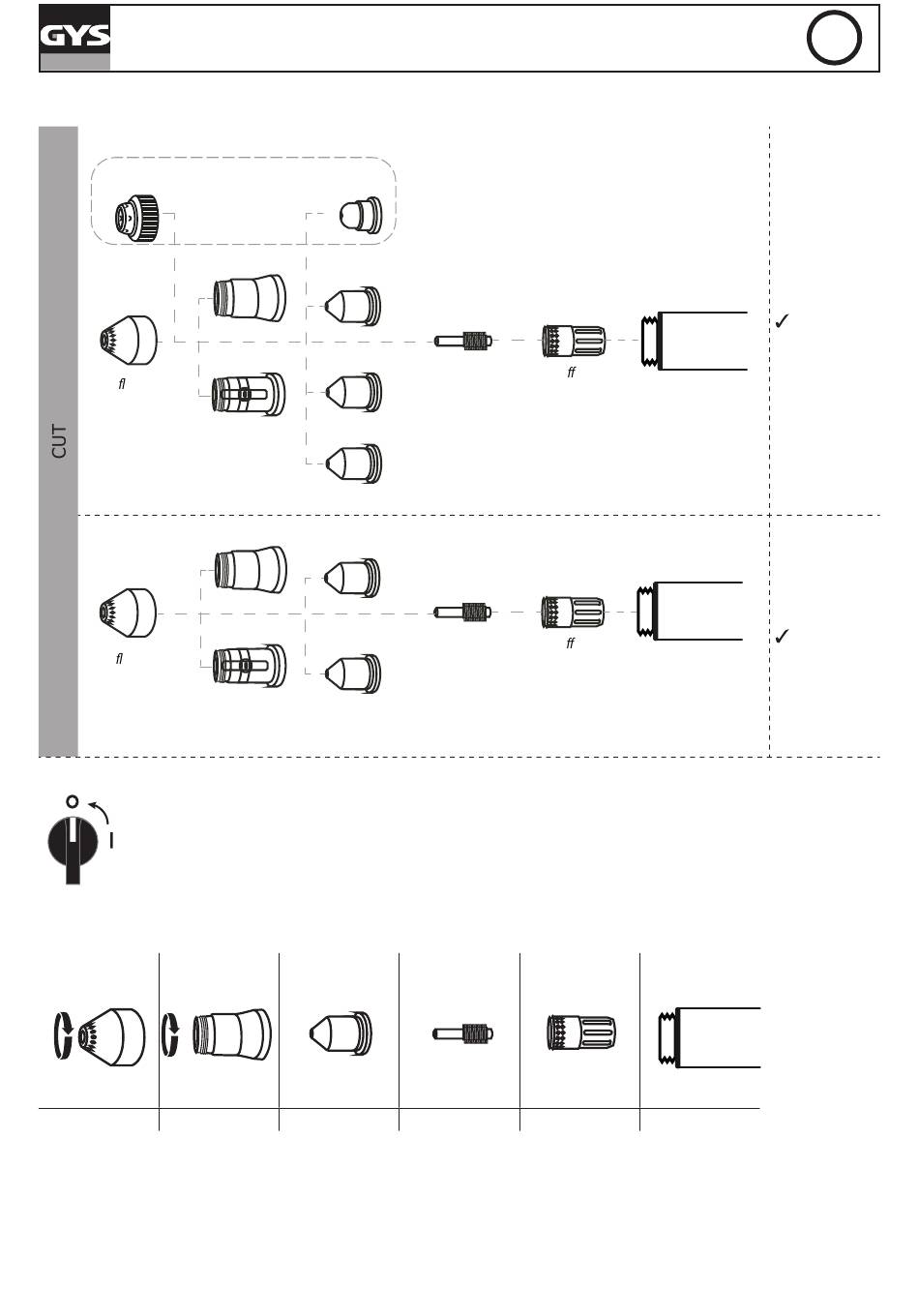

2 - INSTALLATION OF THE AUTOMATIC TORCH CONSUMABLES
Before changing the consumables, cut the power supply using the interrupor behind the machine .
To use the automatic torch, a complete set of consumables must be installed in the correct order: diffuser, electrode, tailpipe, protection shroud and
shield.
Deflector Protective shroud
24
PLASMA CUTTER 85A / 125A
PRECISION CUT
039315 (x5)
45A
039216 (x1)
039162 (x5)
45A
039179 (x5)
039339 (x1)
65A
ohmic
039186 (x5)
85A
Protective
shroud
Tailpipe
039193 (x5)
039223 (x1)
105A
039209 (x5)
039445 (x1)
125A
ohmic
Tailpipe
Protective
shroud
Tailpipe
039155 (x5) 039131 (x1)
Electrode Di user
039155 (x5) 039148 (x1)
Electrode Di user
Electrode Diffuser
EN
85A TRI
038479 - 6 m
039520 - 12 m
125A TRI
038479 - 6 m
039520 - 12 m
Torch
