Installation
7.

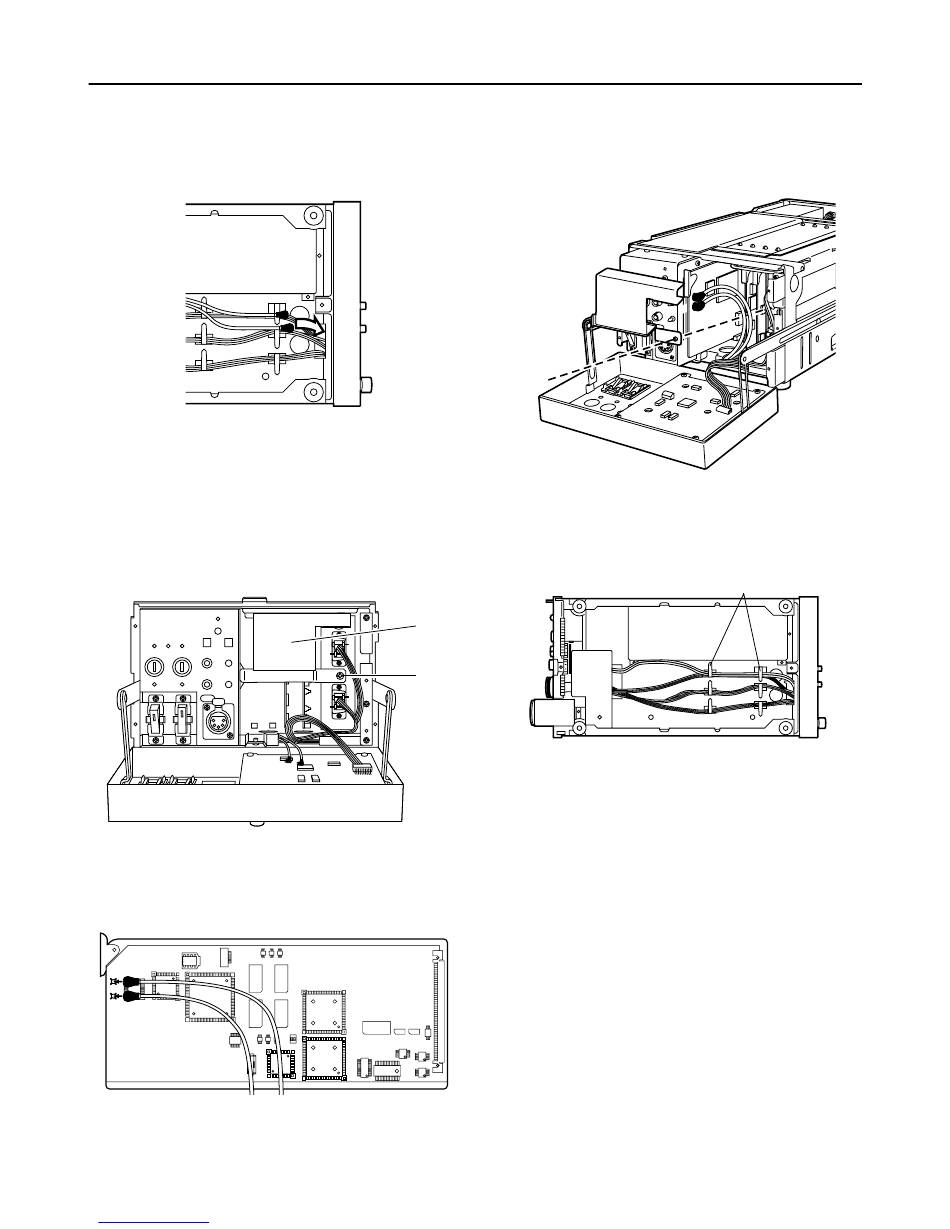

While referring to the figure below, pass the other ends
of the cables connected in step 5 from the bottom
toward the front panel top.
8.
Remove the screw from the front panel of the cover
removed from the AJ-BS900, and disengage the metal
piece shown in the figure below. (The screw cannot be
removed from the metal piece.)
9.
Connect the ends of the cables which were passed
from the bottom in step 7 to the board so that they are
aligned in the directions shown in the figure below.
Downloaded from www.Manualslib.com
PUSH
manuals search engine
10.
Insert the board into the left-most slot of the AJ-BS900,
and reattach the metal piece, which was disengaged in
step 8, to its original position. When securing the metal
piece, ensure that the cables are not pinched.
11.
Pull out the excess lengths of the cables toward the
bottom, and anchor the cables using cable clamps so
that no slack remains in the cables.
Metal piece
Screw
12.
Return the front panel cover, bottom panel and side
panels in this order to their original positions, and
secure them using the respective screws.
E - 3
Cable clamps
