Cable Strain-Relief - LD Systems U300 Serie Bedienungsanleitung

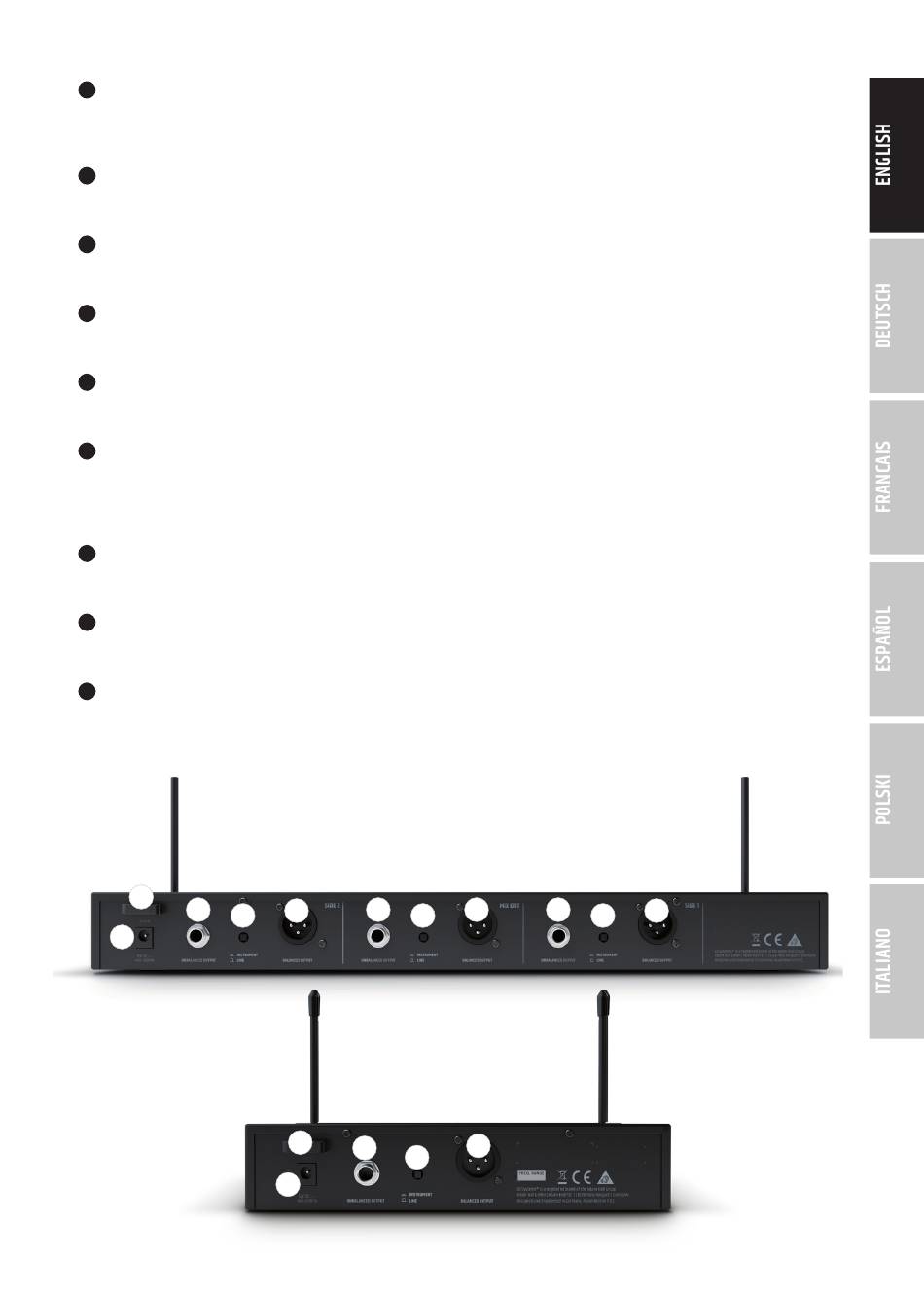

ANTENNA A - B
8
Indicator LEDs for the antenna systems A and B. The antenna system with the stronger radio signal is activated and the corresponding indicator LED
lights up.
RECEPTION ANTENNAS A - B
9
For optimum reception, please position the antennas in an upward-facing V-position.
DC SOCKET
10
Low-voltage socket for the power supply to the device. Please use only the supplied mains adapter.

CABLE STRAIN-RELIEF

11
Cable strain relief for power adapter cable.
12 UNBALANCED OUTPUT
Unbalanced audio output via 6.3mm jack socket.
INSTRUMENT/LINE (UNBALANCED OUTPUT)
13
Switch for level and impedance-matching to instruments or line inputs of an amplifier or mixer. Using a suitable tool (e.g. a ballpoint pen), push the
switch into the depressed INSTRUMENT position for connection to the input of an instrument amplifier (guitar or bass amp) and for connection to
the line-input of a mixer or amplifier, select the non-depressed position LINE.
BALANCED OUTPUT
14
Balanced audio output via 3-pin XLR jack.
UNBALANCED OUTPUT MIX OUT
15
Unbalanced audio output via 6.3mm jack socket (twin receiver only, mix of signals from channels 1 and 2).
INSTRUMENT/LINE MIX OUT (UNBALANCED OUTPUT)
16
Switch for adjusting the level and impedance of the jack output to the instrument or line inputs of an amplifier or mixer. Using a suitable tool (e.g. a
ballpoint pen), push the switch into the depressed INSTRUMENT position for connecting the receiver to the input of an instrument amplifier (guitar
or bass amp). To connect to the line-input of a mixer or amplifier, select the non-depressed position LINE.
11
12
13
10
15
14
16
11
12
13
10
17 12
13
14
14
7
