6 Usage
Using the above image, the device can be prepared for use. However, we encourage you to follow the
instructions below step by step.
Initial Check
- In the first instance take the device out of the box and check (using the image above) that nothing
is missing.
- If you discover at this stage that some part is missing or damaged do not continue to assemble
the product. Contact your supplier of the product right away.
Assembly of the rollator
−

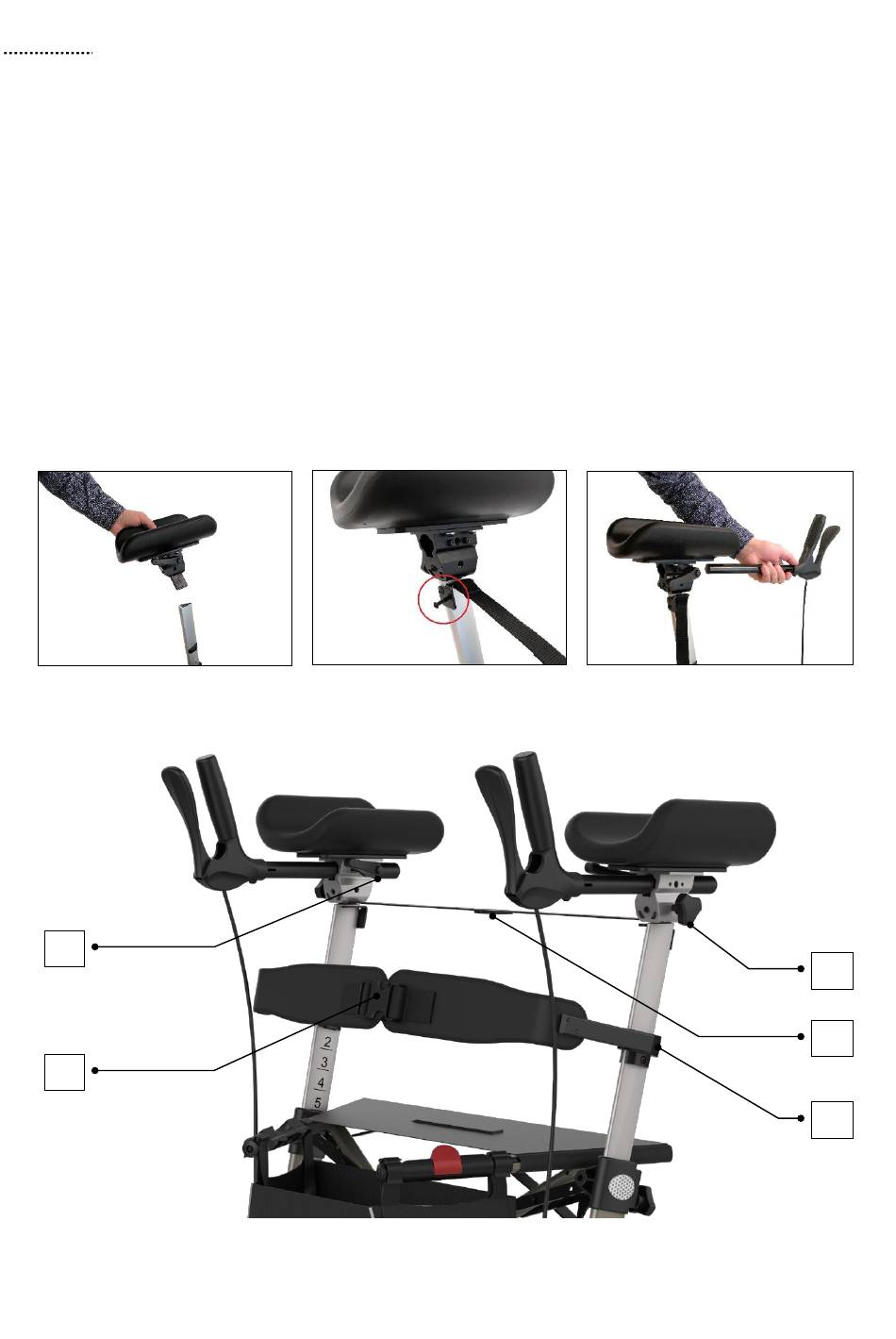

Mount the left and the right forearm supports (Picture 1) on the corresponding tubes in combination
with the clamps of the stabilization strap (Picture 2) using the four screws and the Allen key from
the mounting kit.
−
Insert the push handles with the brake levers (Picture 3) into the forearm support assembly and
preliminary secure with the clamping lever (2)
−
Connect both sides of the backrest with the buckle in the middle (4)
−
Close the buckle of the stabilizing strap (3) between the forearm supports. With the Velcro material
the length of the strap should be adjusted in such a way that there is a light pulling force.
