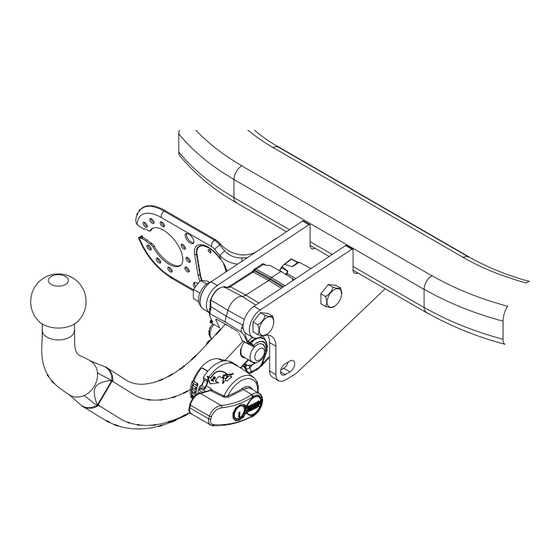

Fitting instructions
Make:
Chrysler / Dodge/
Sebring (convertible); 2007->
Avenger; 2007->
Flavia; 2012->
Type:
Lancia
4637
Montagehandleiding
Fitting instructions
Montageanleitung
Instructions de montage
Monteringsanvisningar
Montagevejledning
Instrucciones de montaje
Istruzioni per il montaggio
Instrukcja montażu
Asennusohjeet
Pokyny k montáži
Szerelési útmutató
Руководство для монтажа
Your perfect fit
brink.eu
Werbung
Verwandte Anleitungen für Brink 4637
Inhaltszusammenfassung für Brink 4637
- Seite 1 Fitting instructions Make: Chrysler / Dodge/ Lancia Sebring (convertible); 2007-> Avenger; 2007-> Flavia; 2012-> Type: 4637 Montagehandleiding Fitting instructions Montageanleitung Instructions de montage Monteringsanvisningar Montagevejledning Instrucciones de montaje Istruzioni per il montaggio Instrukcja montażu Asennusohjeet Pokyny k montáži Szerelési útmutató...
- Seite 2 9516744 M6x20 11Nm 9516734 M12x120 9516735 75Nm 9516737 9516736 9516738 M12x40 75Nm 4637/50 4637/6L 4637/4 9516736 9516737 4637/30 9520064 9516735 9516734 9531242 M12x90 (10.9) 110Nm 4637/6R M12x40 M12x120 9535315 75Nm 75Nm 9516738 © 463770MN/16-04-2012/1...
- Seite 3 (1x) M6x20 (1x) 25x5 L=80mm (6x) M12x40 (2x) Filling plate (2x) M12x90 (10.9) (2x) Spacer (2x) Spacer (6x) M12x120 (2x) Spacer (1x) M6 (self-locking Flange Nut) (14x) M12 (10) (self- (1x) socket plate locking Flange Nut) 4637 © 463770MN/16-04-2012/2...
- Seite 4 Couplingsclass: A50-X euro D-Value : Approved tested e11 00-6364 94/20/EC 10.9 MODIFICATION? © 463770MN/16-04-2012/3...
- Seite 5 * Should this installation process entail the cutting of the bumper – con- formation MUST be obtained by the installation engineer of the custo- mer’s acceptance prior to completion. Brink Towing Systems do not accept responsibility for any matters arising as a result of this miscom- munication.
- Seite 6 Sebring Convertible Sebring Avenger Flavia © 463770MN/16-04-2012/5...
- Seite 7 (1x) M6x20 (1x) Side plate (6x) M12x40 (1x) Side plate (2x) M12x90 (10.9) (1x) housing Sebring Avenger (6x) M12x120 (1x) socket plate (1x) M6 (self-locking (1x) ball Flange Nut) (1x) dummy (14x) M12 (10) (self- locking Flange Nut) (2x) Filling plate (1x) ball cap (2x) Spacer (1x) Blue Bag...
- Seite 8 Sebring Avenger 60mm 60mm 50mm 50mm Underside bumper Middle bumper Sebring 60mm 60mm 50mm 50mm Cut out © 463770MN/16-04-2012/7...
- Seite 9 137mm ø6mm 137mm 137mm © 463770MN/16-04-2012/8...
- Seite 10 ø13 mm 137mm ø20mm ø13mm 137mm © 463770MN/16-04-2012/9...
- Seite 11 (3x) M12 (10) (3x) M12 (10) self-locking self-locking (3x) M12x120 (3x) M12x120 (3x) M12 (75Nm) (3x) M12 (75Nm) © 463770MN/16-04-2012/10...
- Seite 12 (3x) M12x40 (3x) M12x40 (3x) M12 (3x) M12 self-locking self-locking (3x) M12 (75Nm) (3x) M12 (75Nm) (1x) M6 (1x) M6 (Existing nut) (Existing nut) © 463770MN/16-04-2012/11...
- Seite 13 (2x) M12x90 (10.9) (1x) M6x20 (1x) M6 (2x) M12 (10) self-locking self-locking (2x) M12 (110 Nm) (3x) M6 (11Nm) (1x) 25x5 L=80mm (1x) M6 (Existing nut) © 463770MN/16-04-2012/12...
- Seite 14 Sebring Avenger © 463770MN/16-04-2012/13...
- Seite 15 (6x) M12x40 (1x) Side plate (2x) M12x90 (10.9) (1x) Side plate (6x) M12x120 Sebring Convertible Flavia (1x) housing (14x) M12 (self-lock- ing Flange Nut) (1x) socket plate (2x) Filling plate (1x) ball (2x) Spacer (1x) dummy Crysler (2x) Spacer (1x) ball cap (1x) Canister plate (1x) Blue Bag (1x) M6x20...
- Seite 16 Sebring Convertible Sebring Convertible 60mm 60mm 50mm 50mm Underside bumper Middle bumper Flavia 60mm 60mm 50mm 50mm Cut out © 463770MN/16-04-2012/15...
- Seite 17 Flavia Flavia 72 mm Outside bumper Bumper edge Cut out © 463770MN/16-04-2012/16...
- Seite 18 Flavia Inside bumper © 463770MN/16-04-2012/17...
- Seite 19 ø20mm ø6mm ø13mm ø13mm © 463770MN/16-04-2012/18...
- Seite 20 (3x) M12 (10) (3x) M12 (10) self-locking self-locking (3x) M12x120 (3x) M12x120 (3x) M12 (75Nm) (3x) M12 (75Nm) © 463770MN/16-04-2012/19...
- Seite 21 (3x) M12x40 (3x) M12 (3x) M12 (75Nm) self-locking Flavia 45º © 463770MN/16-04-2012/20...
- Seite 22 (3x) M12x40 (3x) M12 (3x) M12 (75Nm) self-locking (3x) M6 (11Nm) (1x) M6x20 (1x) M6 Self-locking (1x) M6 (Existing nut) © 463770MN/16-04-2012/21...
- Seite 23 (2x) M12x90 (10.9) (2x) M12 (10) self-locking (2x) M12 (110 Nm) Flavia Sebring Convertible © 463770MN/16-04-2012/22...
- Seite 24 Sebring Convertible Flavia © 463770MN/16-04-2012/23...
- Seite 25 Dispositivo di traino tipo: 4637 Per autoveicoli: Chrysler Sebring (convertible) / Dodge Avenger; 2007-> Lancia Flavia; 2012-> Tipo funzionale: JSC27/JSC41/JSD41/JSL27 Classe e tipo di attacco: A50-X Omologazione: e11 00-6364 Valore D: 9,1 kN Carico Verticale max. S: 1500 Larghezza rimorchiabile per Caravan e T.A.T.S.: 2,45m vedere CARTA di CIRCOLAZIONE VEICOLO (motrice) + 70 cm = ..arrotondare ai 5 cm superiore (vedi D.M.28/05/85)
- Seite 26 © 463770MN/16-04-2012/25...
