AGP R13 Betriebsanleitung Seite 2

SPECIFICATIONS
Power
Voltage
Spindle No Load Speed min
Blade No Load Speed min
Linear Speed
Blade Diameter
Max. Depth of Cut
Dimensions (incl. blade)
Weight
6.
7.
8.
14.
16.
15.
230-240 V: 3200 W (16 A), 220 V: 3000 W (16 A), or 110-120 V: 2800 W (25 A)
220-240V~ 50/60Hz or 110-120V~ 50/60Hz (See Machine Nameplate)
-1
14,000
-1
2,850
49.2 m/s
330mm (13")
220mm (8.7")
730 x 280 x 450mm
12.6kg ( 27.7 Lbs) (not including blade)
5.
9.
15.
18.
19.
GB
3. 2.
4.
21.
11.
10.
9.
18.

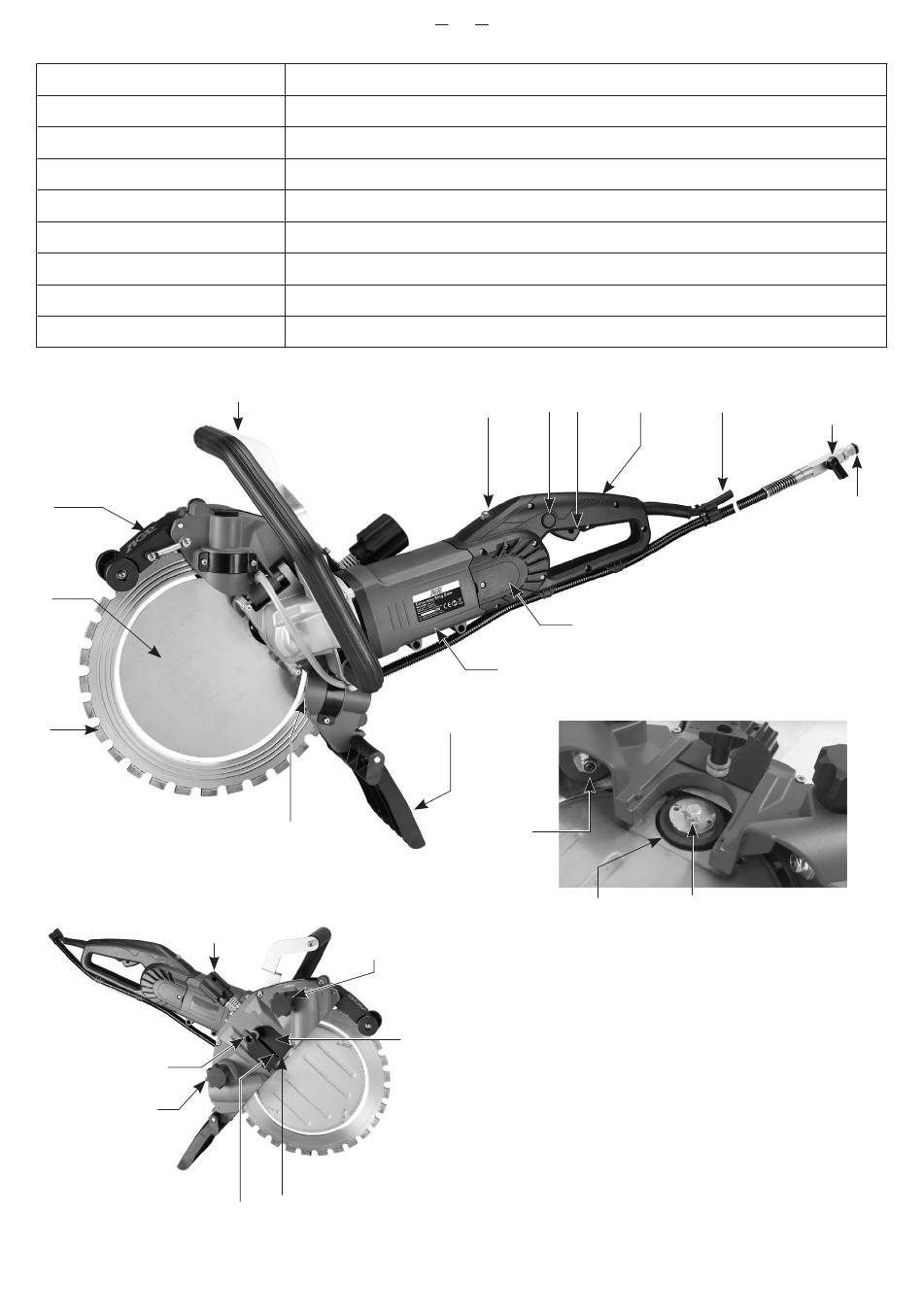

1. Main Handle
2. Trigger Switch
3. Release Button
17.
4. Load Warning Lamp
5. Side Handle
6. Upper Splash Guard
7. Water Plate
8. Ringsaw Blade (3-groove type)
9. Guide Wheel
10. Lower Splash Guard
11. Motor
12. Water Feed Valve
13. Water Coupling
2
1.
20.
19.
14. Drive Tensioner Knob
15. Guide Tensioner Knobs
16. Thumb Knob
17. Cover Plate
18. Drive Wheel
19. Arbor Bolt
20. Power Supply Cable
21. Brush Cover
