GB
Operating instructions for the
hand-held circular saw
Always hold the circular saw firmly.
The hinged guard hood will be pushed back
automatically by the workpiece.
Never apply force! Advance the circular saw gently
and steadily.
When sawing along a marked line, guide the
circular saw along the corresponding groove.
The off-cut piece should be to the right of the
circular saw so that the wide part of the base plate
is supported over its entire surface.
When sawing along a marked line, guide the
circular saw along groove A.
Clamp small pieces of wood securely before
sawing. Never hold them in your hand.
Always observe the safety regulations! Wear
goggles!
Do not use damaged saw blades or blades with
cracks or flaws.
Do not use flanges or flange nuts with a hole
which is larger or smaller than that of the saw
blade used.
Do not try to stop the saw blade with your hand or
by applying pressure to the side of the blade.
The hinged guard must not jam and must return to
its original position once work is completed.
Make sure that the movable guard hood works
properly without jamming.
Important!
Wear ear muffs and goggles.

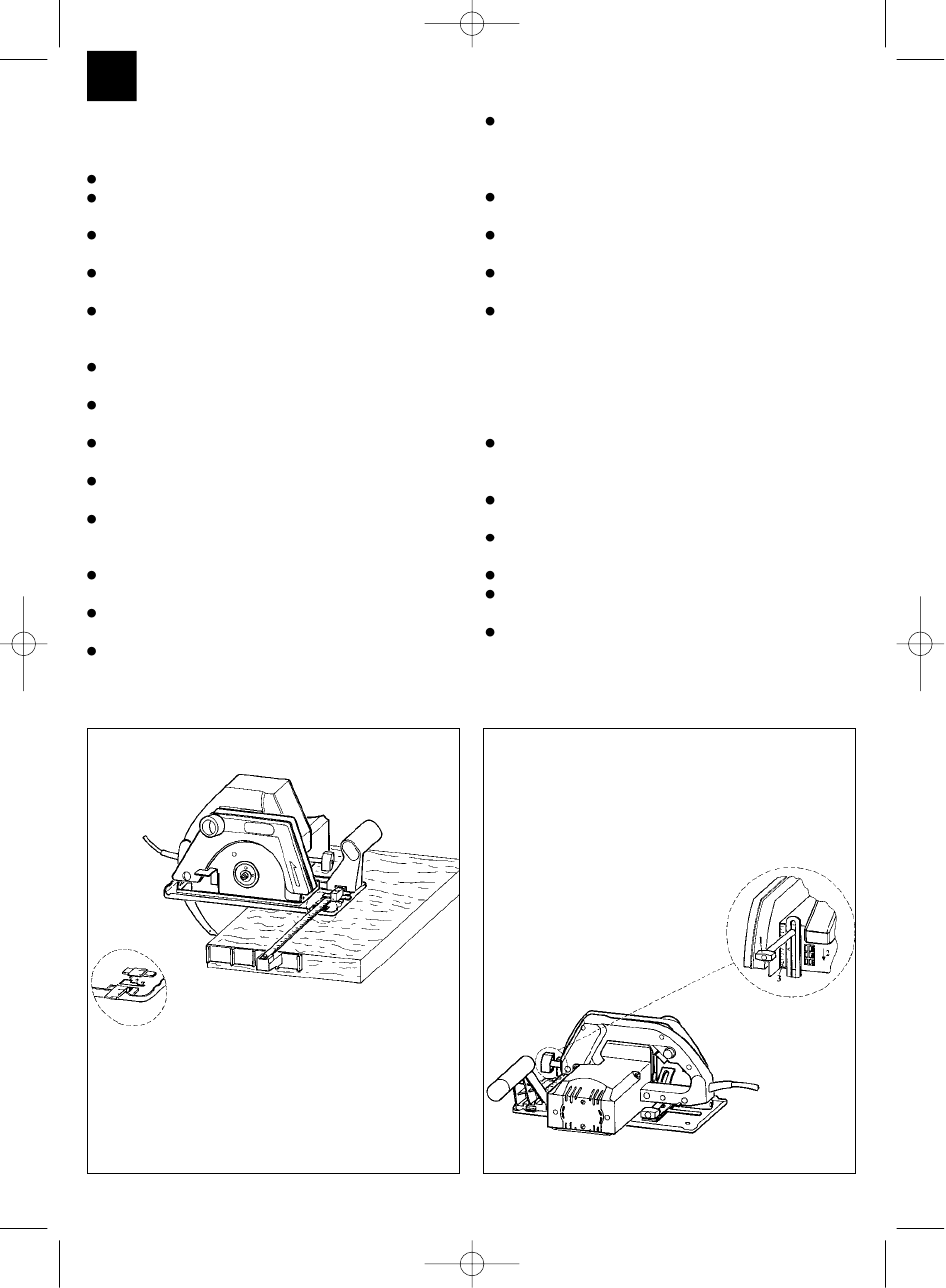

Parallel cuts
1. Release the lock screw
2. Adjust the parallel stop using the scale. Observe saw blade width.
Important!
First make a trial cut on some scrap wood
Groove 15 - vertical cuts 0-15°
Groove 30 - angle cuts 30°
Groove 45 - angle cuts 45°
8
09.11.2001 7:13 Uhr
Before each use, always check that the safety
devices - the hinged guard, splitter, flanges and
adjustment devices - are functioning properly and
have been adjusted and secured correctly.
You can connect a suitable dust extractor to the
guard hood.
Never jam the hinged guard hood in its withdrawn
position while sawing.
Never jam the hinged guard hood in its withdrawn
position while sawing.
Make sure that the diameter, thickness and other
parameters of the saw blade are suitable and that
the blade is designed for the spindle speed of the
saw.

Maintenance

Keep the cooling vents on the motor housing clean
and unobstructed at all times. Blow out any dust
and dirt at regular intervals.
Have the carbon brushes checked by a qualified
workshop if there is excessive sparking.
Worn carbon brushes are to be changed only by a
qualified workshop or our Customer Service.
Keep the machine clean at all times.
Never use any caustic agents to clean the plastic
parts.
If ever you discover any damage, consult the
exploded drawing and parts list to determine
exactly which replacement parts you need to order
from our Customer Service Centre.
Adjustment of the cutting depth
1. Release the lock screw
2. Swing the shoe downwards
3. Adjust the cutting depth using the scale
The saw teeth must project approx. 2 mm out of the wood.
