DoorBird D101 Installationsanleitung Seite 9

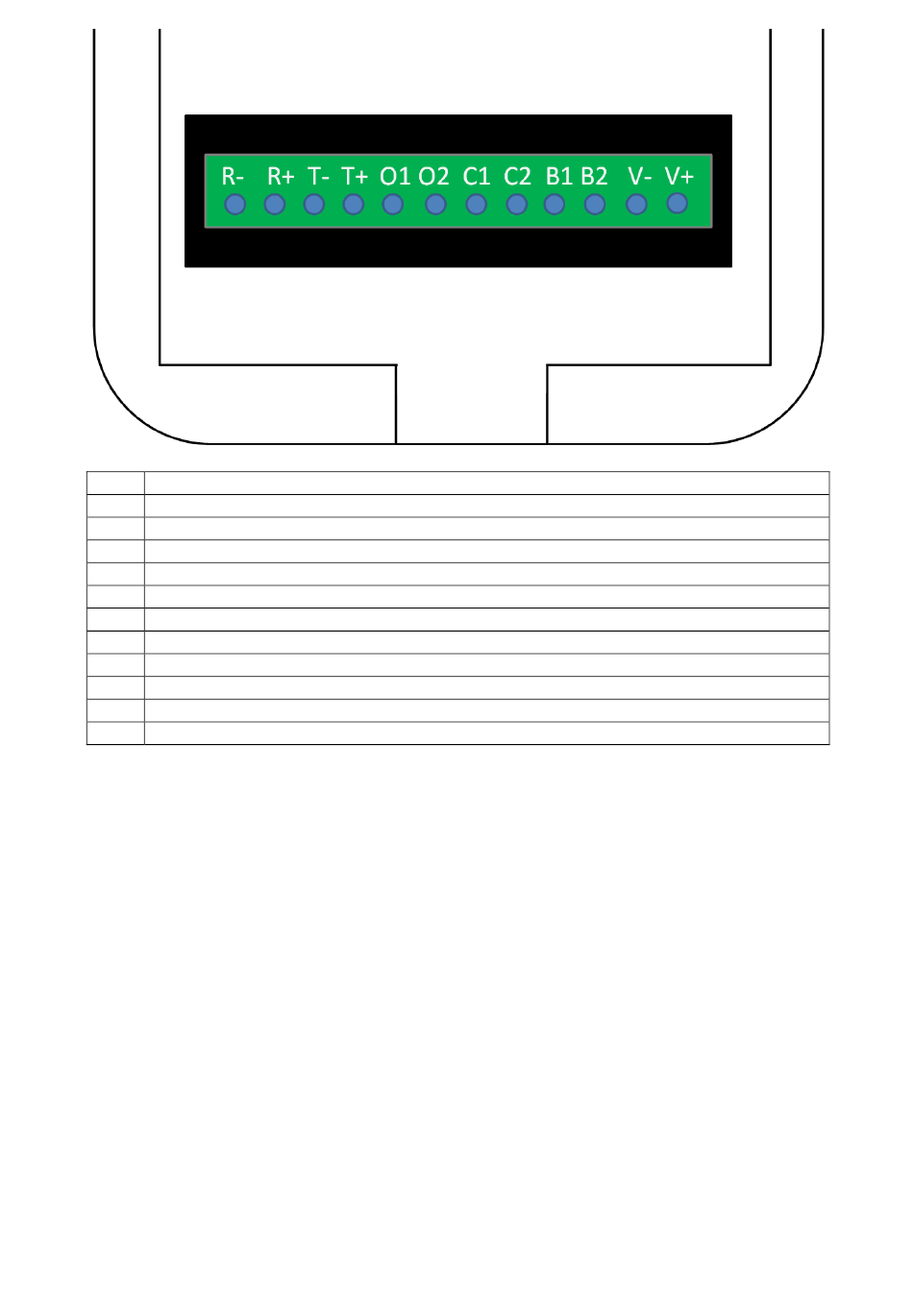

R- Green network cable wire (Number 6, Receive Data -)
R+ White and green network cable wire (Number 3, Receive Data +)
T- Orange network cable wire (Number 2, Transmit Data -)
T+ White and orange network cable wire (Number 1, Transmit Data +)
O1 Electric door opener (zero potential)
O2 Electric door opener (zero potential)
C1 Electric door chime (zero potential)
C2 Electric door chime (zero potential)
B1 Door-opening button (zero potential)
B2 Door-opening button (zero potential)
V- Power supply, negative pole (-)
V+ Power supply, positive pole (+)
Please take care when connecting the wires. Connecting the wires the wrong way may destroy the
video doorbell.
Once you have finished connecting the wires, please attach the self-adhesive sponge rubber seal to
the connection terminal in order to prevent any moisture from getting into the device.
Step 10: Final assembly
Mount the video doorbell on the mounting plate. The video doorbell will click into the locking
positions intended for the mounting plate. Use the accompanying safety screw to fix the video
doorbell to the underside of the mounting plate.
Step 11: Activating the doorbell
Switch on the power to the wires leading to the door again. You can see whether you have
connected the power supply properly from the Diagnostic LED beside the connection terminal (it
lights up once the power has been connected correctly for up to five minutes). The video doorbell is
ready for operation (booting up process, any software updates, etc.) once it has emitted a short
diagnosis sound from the integrated loudspeaker. This may last for up to 5 minutes. Should you not
hear a beep, please check the power supply. Please also check whether you have used a wall-plug
power-supply and not PoE and whether you have connected the positive pole and negative pole to
the video doorbell correctly.
