Power supply as an alternative
via PoE (
To power the video doorbell via a PoE switch (e.g. D-Link DGS-1008P) or PoE injector (e.g. TP-Link TL-
PoE150S) in accordance with the PoE standard IEEE 802.3af Mode A, the four wires bearing the
numbers 1, 2, 3 and 6 of a Cat.5 cable or better are to be used. A Cat.5 cable or better must be used
as network signals can only be transmitted over completely insulated, shielded and twisted cables. If
you use PoE as a source of power, the Wi-Fi interface of the video doorbell is automatically inactive,
and the four wires for PoE then simultaneously form the data link. The video doorbell won't start if
your PoE Switch or PoE injector does not support the PoE Standard IEEE 802.3af Mode A (see
Diagnostic-LED and Diagnostic-Sounds).
1. Disconnect the PoE switch or PoE injector from the power grid.
2. Place the network cable in the installation site of the video doorbell.
Do not combine the power supply from the power supply unit (mains adaptor) with the power supply
via PoE.
Step 5: Further connections (optional)
If desired, connect additional wires to the installation site of the video doorbell. The wires or
connection options mentioned in this section are optional.
Connecting the unit to a network
You can connect the video doorbell to your existing network via Wi-Fi, or
alternatively use a network cable (Ethernet). For reasons of network
stability, we principally recommend using a network cable, as Wi-Fi is
sensitive to interference (range, house walls acting as shields, reliability
of performance, third party Wi-Fi networks, wireless transmitters causing
interference in the area, etc.).
The video doorbell can be powered by PoE or using the power supply
unit provided.
If you use PoE as a source of power, the Wi-Fi interface of the video
doorbell remains inactive.

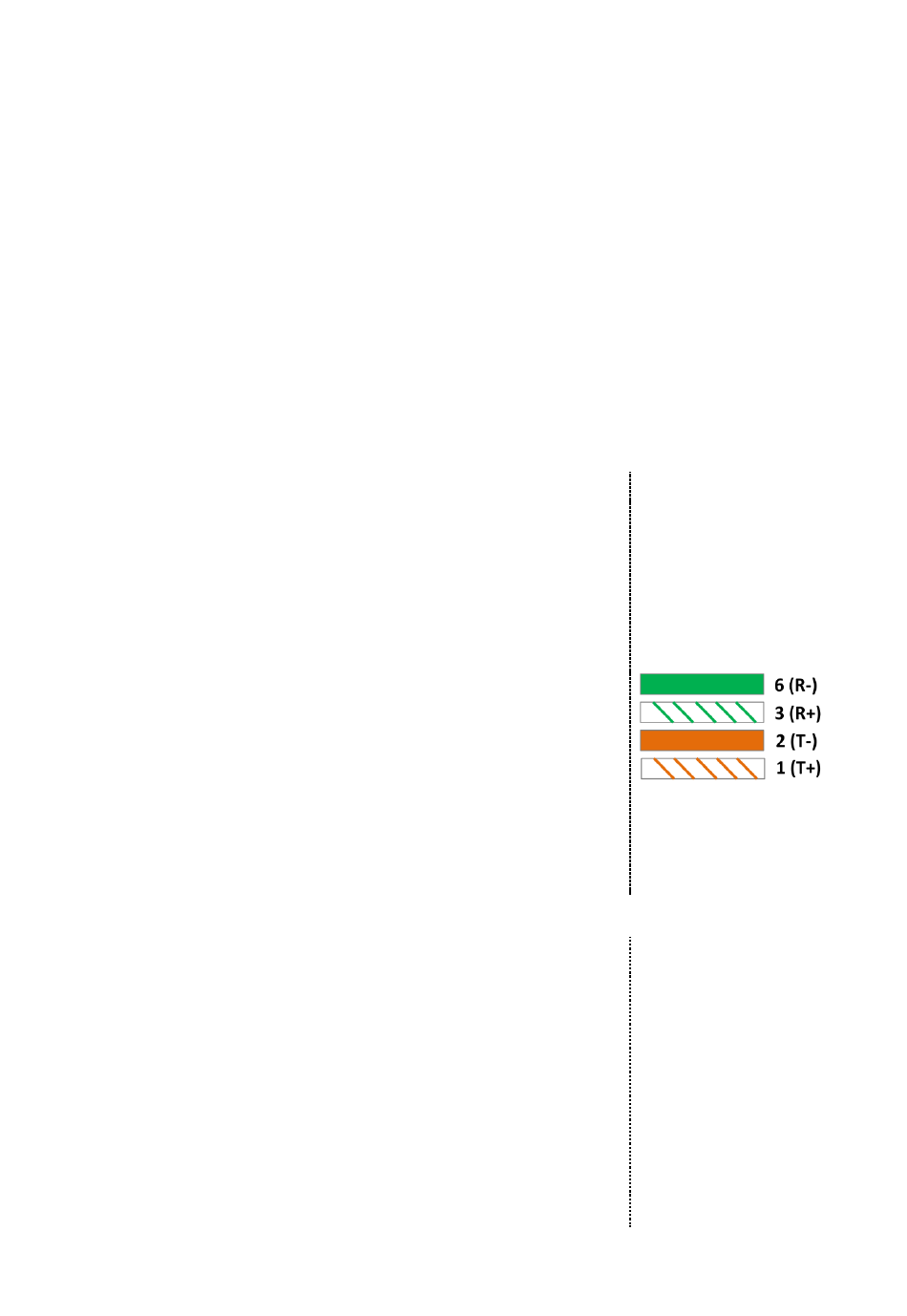

Use only four wires (1, 2, 3 and 6) of a network cable that meets the
Cat.5 standard or a better one. The other four wires of the network cable
(4, 5, 7 and 8) are not required.
Connect the network cable in the house to your Internet router or to
your PoE switch or PoE injector that is connected to your Internet router.
Electric door openers
The video doorbell has a zero-potential relay contact for a standardised
electric door, gate or garage opener (two wires). There is also the
possibility of switching on all electric door openers that work at a
maximum power of 1A in the voltage range of up to 24V (AC/DC). The
video doorbell does not provide its own power supply for the electric
door opener. This is provided through the separate power supply of the
electric door opener. You can learn more about the installation of the
power supply from the instruction manual or technical specifications of
your door opener. Should you have any questions about this, please
contact the manufacturer of your door opener. You can find compatible
electric door opener
www.doorbird.com/support
)
and a sample wiring
Be sure to use four
insulated, shielded and
twisted
network
accordance
Cat.5 standard or better.
Two insulated wires.
diagram at
wires of a
cable in
with the
