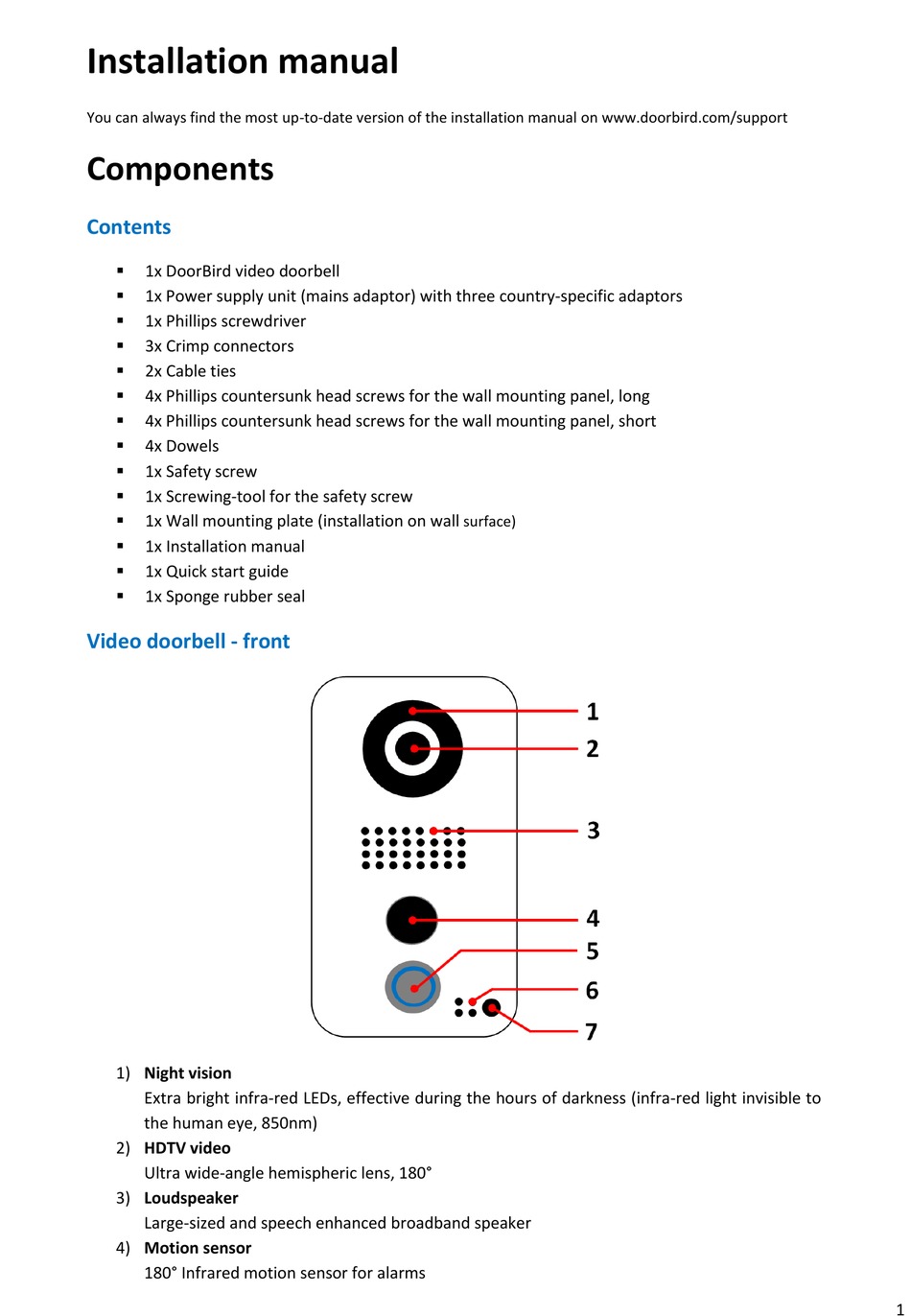

Installation manual
You can always find the most up-to-date version of the installation manual on www.doorbird.com/support
Components
Contents

1x DoorBird video doorbell

1x Power supply unit (mains adaptor) with three country-specific adaptors

1x Phillips screwdriver

3x Crimp connectors

2x Cable ties

4x Phillips countersunk head screws for the wall mounting panel, long

4x Phillips countersunk head screws for the wall mounting panel, short

4x Dowels

1x Safety screw

1x Screwing-tool for the safety screw

1x Wall mounting plate (installation on wall

1x Installation manual

1x Quick start guide

1x Sponge rubber seal
Video doorbell - front
1) Night vision
Extra bright infra-red LEDs, effective during the hours of darkness (infra-red light invisible to
the human eye, 850nm)
2) HDTV video
Ultra wide-angle hemispheric lens, 180°
3) Loudspeaker
Large-sized and speech enhanced broadband speaker
4) Motion sensor
180° Infrared motion sensor for alarms
surface)
1
