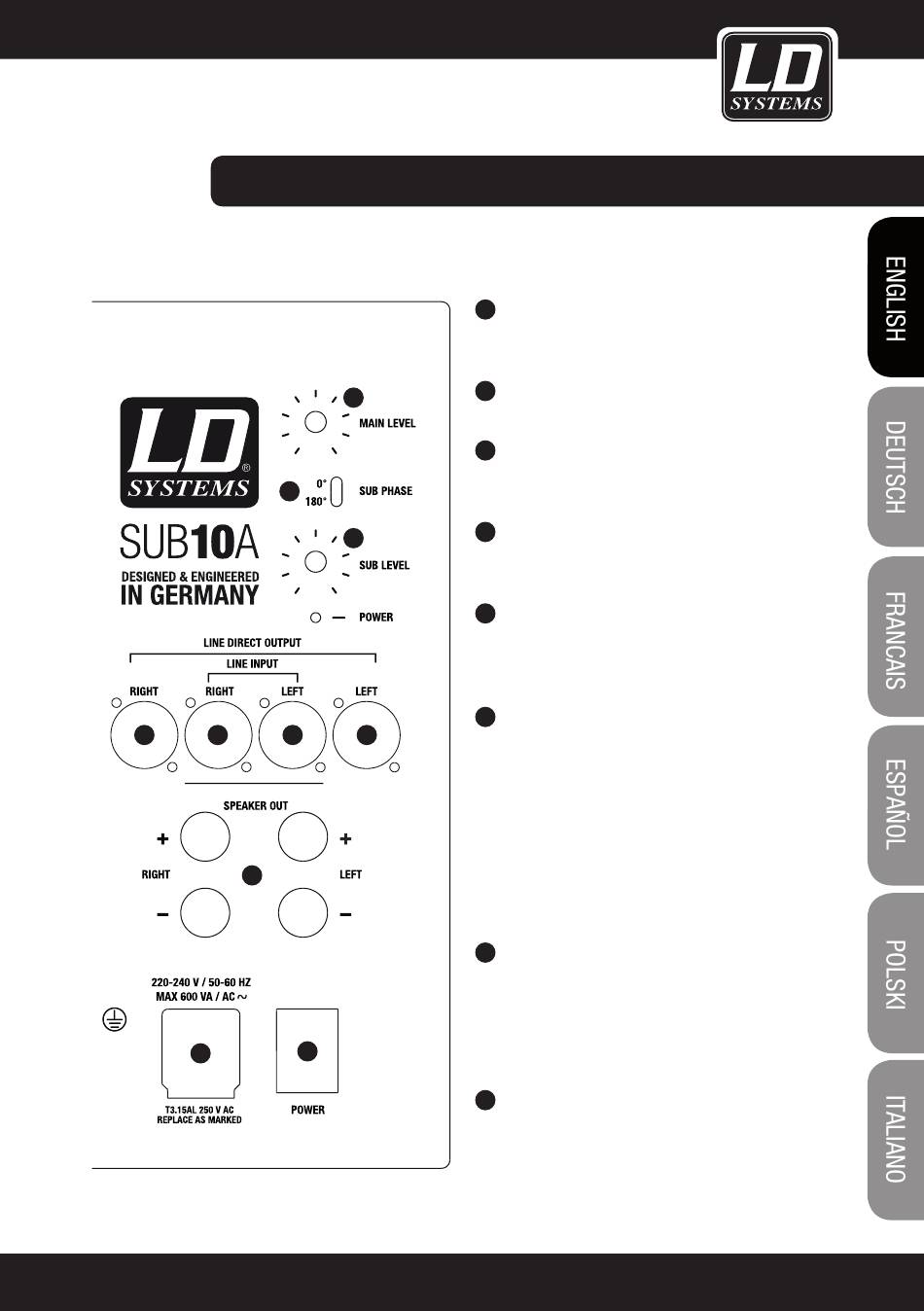

connectors, conTroLs, AnD inDicATors:
2
4 5 5
6
8
7
ldsUB10a:
1
Main level
Overall volume of the system (subwoofer and
connected passive speakers).
2
sUB phase
1
Phase reverse switch for the subwoofer (0°/180°).
3

sUB level

Sets the relative volume of subwoofers and
satellite speakers.
4
line direct oUtpUt (leFt / right)
3
Balanced XLR line output (left / right) for looping
through the input signal.
5
line inpUt Xlr (leFt / right)
Balanced line input (XLR / 6.3 mm TRS combo, left
/ right) for connecting an external audio source
(e.g., mixer).
6
speaker oUt (leFt / right)
4
Terminal posts for speaker cables. Connection of
speakers or speaker systems with a total
impedance of at least 4 ohms per channel.
Connect the positive pole (+) of the speaker cable
to the red terminal clamp (+) and the negative
pole (-) of the speaker cable to the black terminal
clamp (-) of the respective channel. Optionally,
speaker cables with banana plugs can also be
used.
7
power socket
IEC power socket 220V-240V with built-in fuse holder.
IMPORTANT INFORMATION: Replace the fuse only
with a fuse of the same type and rating. If the fuse
blows repeatedly, please contact an authorised
service centre.
8
power
On / off switch. Before switching the active spea-
ker on or off, always adjust the volume to zero
(MAIN LEVEL all the way to the left).
9
