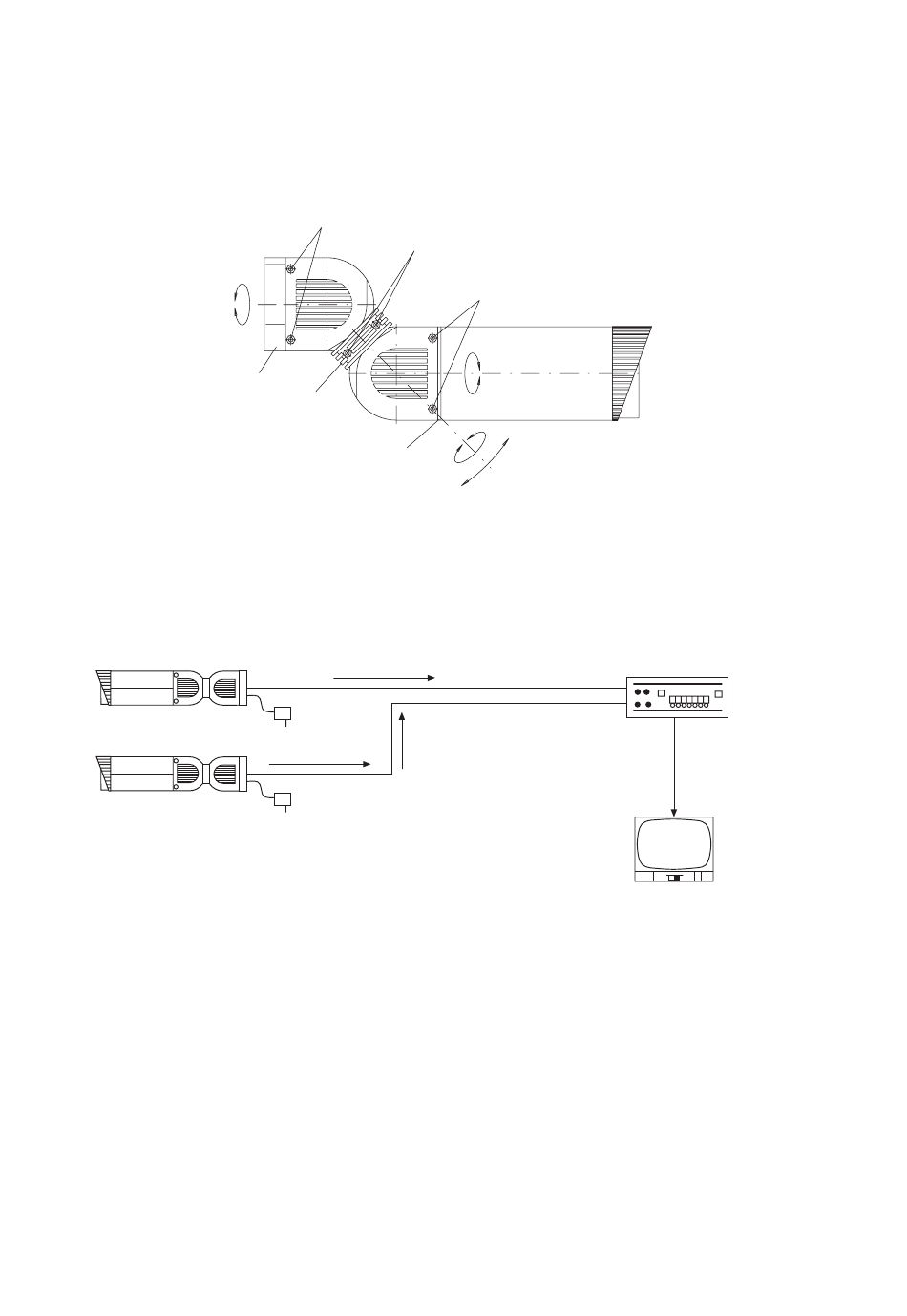

3.3 Joint between Housing and Articulated Arm

1. The articulated arm is fitted to the housing rear wall (2) by 2 allen screws (b) and to the mounting plate (3) by Allen screws (c).
2. When Allen screws (c) are undone the articulated arm can be rotated around axis A. Undoing screws (b) allows rotation around axis D.
3. Rotation is possible around axis B as well as tilting around axis C by undoing Allen screws (d) on the locking ring (4).
4. This design guarantees you nearly unlimited options when installing the articulated arm and therefore orienting and adjusting the camera.
5. Each of the axes and the articulated arm are locked in place by tightening the screws (b-d). It should remain in the fixed condition a gap of at least 0.5mm.
Fig. 2

3.4 Connection Example when using Several Cameras

Always read the operating instructions for the devices and components carefully. Switch on the devices and components only after all the other connections have been
carried out.
c
A
3
4
2
Video output (OUT)
230V / 50Hz
230V / 50Hz
d
b
D
C
B
Video input (IN)
Video input (IN)
14
Video switcher
Video output (OUT)
Video input (IN)
