Installation of the MDB-4F
4.7 tools and requirements
No special tools required.
4.8 unpacking
The package should contain:
- MDB-4F
- P recoat material (in the dust bin)
- H andle for dust bin lifting device
If parts are missing or damaged, contact your supplier.
4.9 Electric connection
Connect the MDB-4F in accordance with the electric diagram
0328291290. Note: the flashing lamp should be connected in
parallel to the alarm light H3.
AttENtiON
All electrical wiring which includes primary,
secondary and control wiring must be done by
certified/licensed electrician.
wArNiNg!
ELECTROCUTION HAZARD.
Disconnect mains before servicing. Failure to do so
could result in serious personal injury or death.
wArNiNg!
Do not attempt installation of this unit unless you
are familiar with the necessary tools, equipment,
utility connections and potential hazards.
Installation should be performed only by a
qualified service provider. Failure to do so could
result in reduced performance of the unit, serious
personal injury or death.

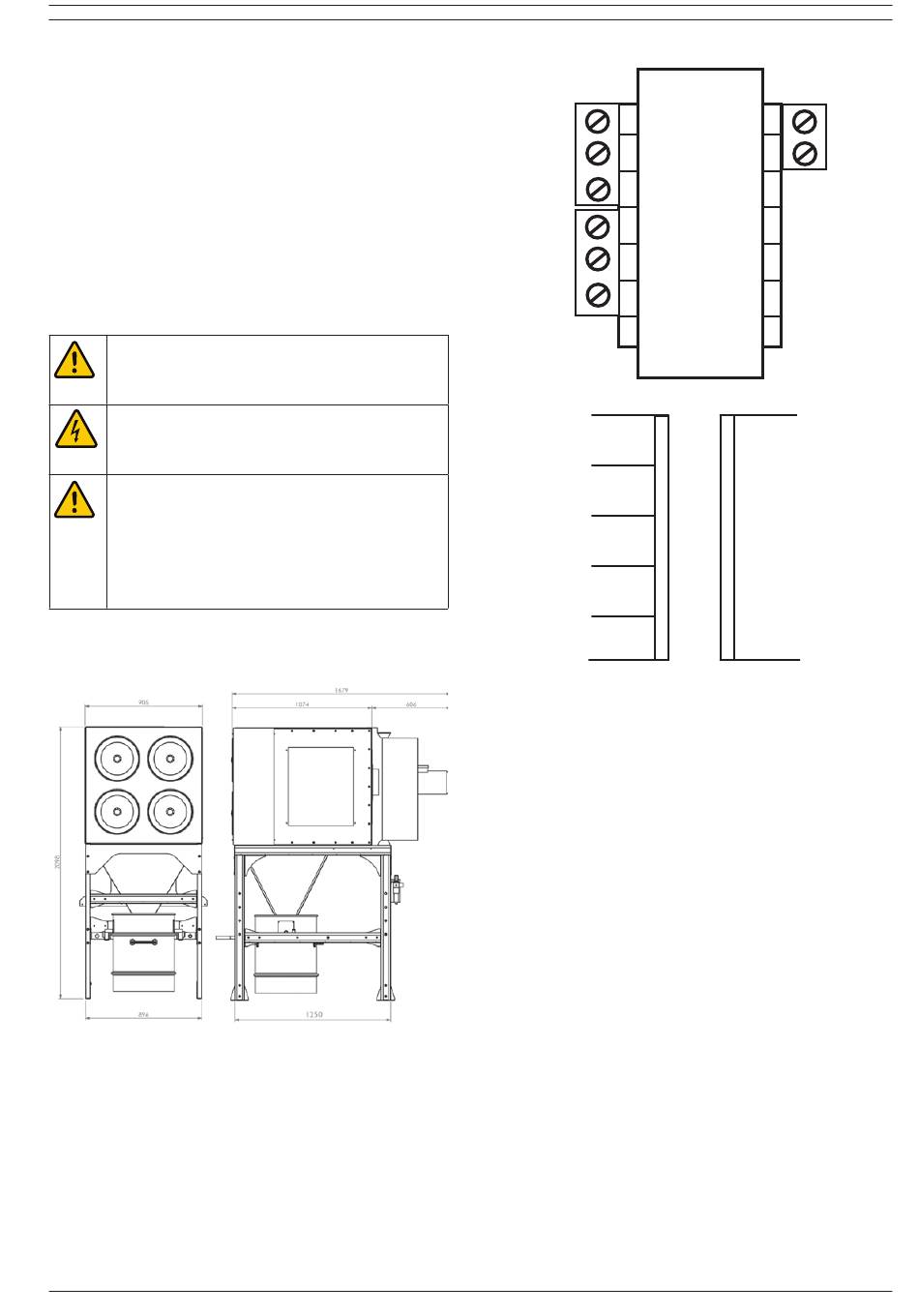

4.10 installation measurement
0000100519/121212/0 MDB-2X/2F/4F
0
120V
240V
400V
480V
600V
com
120V
240V
400V
480V
600V
A line supply
The line supply voltage and ground from your building shall
be connected directly to L1, L2, L3 on the terminals of the
mains switch S1 and to a suitable ground point.
B Transformer wiring
Check that rated voltage corresponds with supply voltage to
avoid damage to electrical components. Set the transformer
on the primary voltage connection to the correct voltage
position.
4.11 control circuit
Remote Start/Stop or External switch.
The remote start/stop is wired to terminal block X1 on
position 5 and 6. The switching contact needs to be potential
free type.
0
24
0 VAC
24 VAC
