Switches and indicators
SW1: Main light switch and status indicator.
SW2: Water Tank test button. Indicators show level of water for 10 seconds.
SW3: Batteries test button. Indicators show voltage of batteries for 10 seconds.
SW4: External light switch and status indicator.
SW5: Water pump switch and status indicator.
Indicators

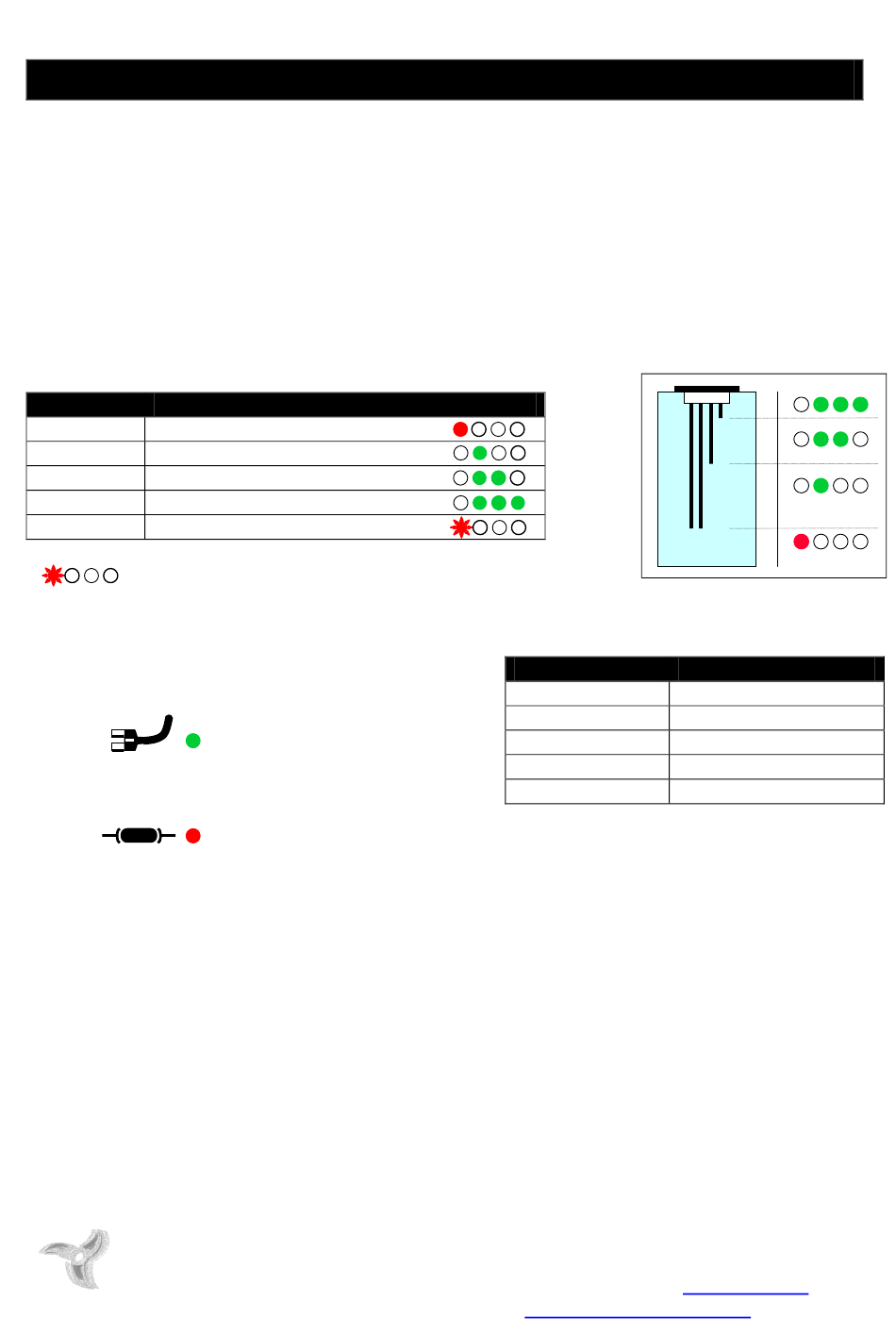

S1 led bar indicating level of water tank. S2, S3 levels of waste water tanks.
Level
Reserve red led lit
1/3 ~ 2/3 Green led: 1/3 lit
2/3 ~ 3/3 Green led: 1/3 e 2/3 lit
Full Green led: 1/3, 2/3 e 3/3 lit
Problems Flashing red led
Red led flashes when:
- There is a problem on the cabling of tank level sensor, i.e. crossed wires or disconnected.
- Electrochemical problems due calcium deposit on water level sensors (must be cleaned!).
B1 led bar indicating engine battery voltage
B2 led bar indicating auxiliary battery voltage
Is lit when connection with external power grid is
active.
Is lit when internal fuse is blown.
Warning
• Device must be stored in dry environment.
• Device must not be opened in order to repair, other than authorized personnel.
• Prior to any operation on the panel, disconnect it from power source.
• When reconnecting device to motorhome, check that connector is accurately inserted and
that retention mechanism is working .
Dimensions and weight
(LxWxH) 21x12x1,5 cm - 130 gr/pcs
