Technical Specs
Input: 88~132 / 176~264 selectable with SWN (fig.1)
Nominal Current 20A@12V
Max Current: 135% of Nominal Current
Maintenance Voltage 13.8V
Grid Presence Signal Voltage 5 V
Protections
Short Circuit, over load, over voltage, over temperature
Connections
1. ~220 AC: Standard VDE connector with main power grid.
2. CNT1: Male faston 3 pins connector.
3. SWP1: Luminous switch. Is lit with red light if ON
position, and when connected to main power grid.
4. ST LED: Led rough indication of current delivered to
load.
Warning
• Before connecting to main power grid, please check that SWN selector is positioned
in accordance with the main voltage being used in your country.
• Please avoid short circuits between signal of Grid Presence and others.
• Check very carefully battery polarity BEFORE connecting it to power supply.
• Device must to be stored in dry compartment.
• Installation must consent proper ventilation for device cooling.
• The cooling fan of the power supply must not be placed too close to other objects so
to reduce the quantity of air flow.
• Device must not be opened in order to repair, other than authorized personnel.
• In any case, prior any operation on the device, place SWP1 on OFF position.
• In case of storm and lightning, and in any case during winter prolonged stops it is
advisable to place SWP1 on OFF position in order to avoid overvoltage on battery
charger caused by atmospheric discharges.

Dimensions and weight

(LxWxH) 16x8x16 cm 1.4 Kg/pc
ArSilicii
Tel. +39 0577 988316
Via Sardegna,11 Loc. Fosci - 53036 Poggibonsi (Siena) Web:
Fax. +39 0577 988449 info:
Battery Charger AL-BK20
Wire Color
Red
Black
Grey
assistenza.tecnica@arsilicii.com

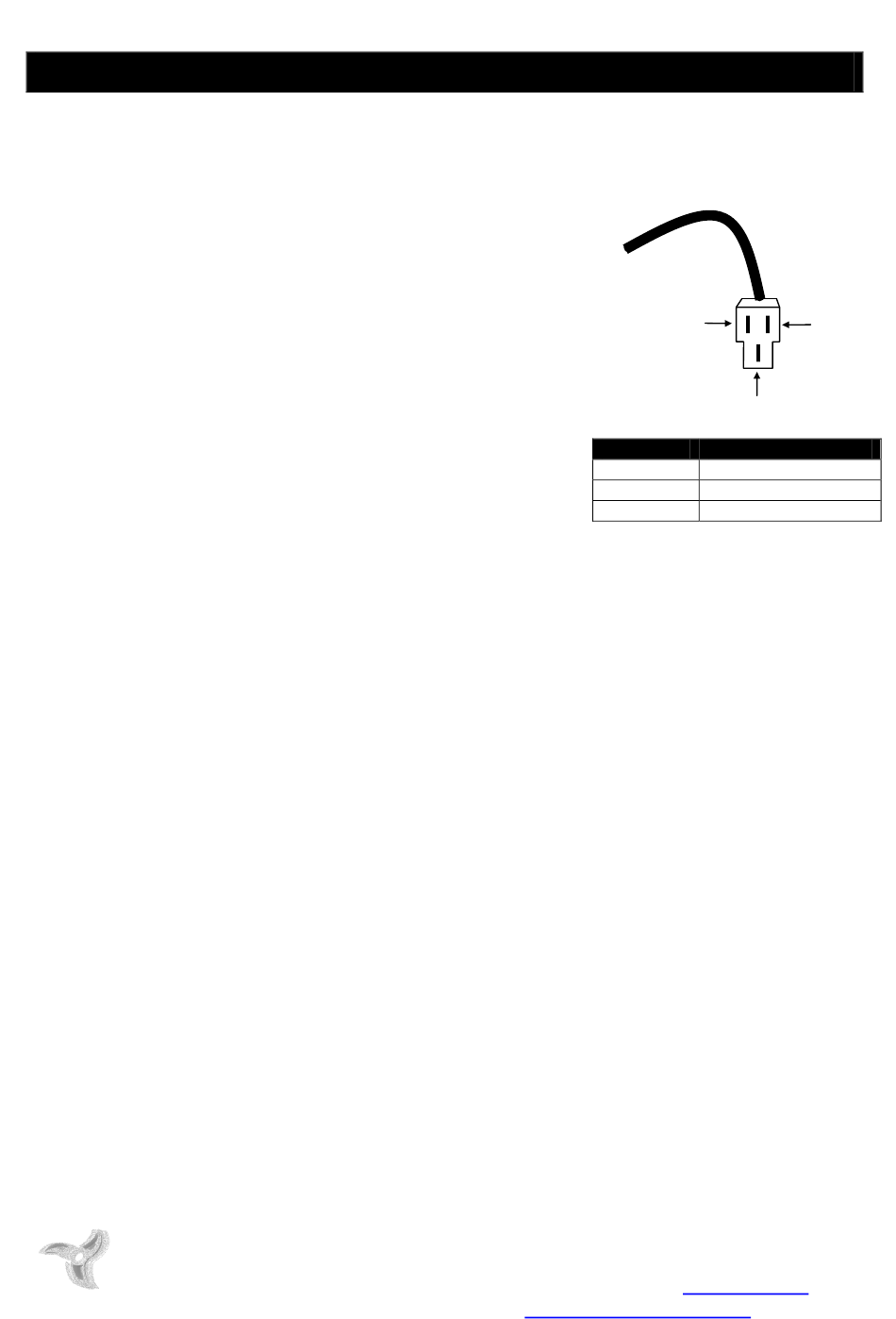

See fig 1:
CNT1
GND
Signal 220AC
Meaning
+12V
GND
Grid Presence (5Volt)
www.arsilicii.com
+12V
