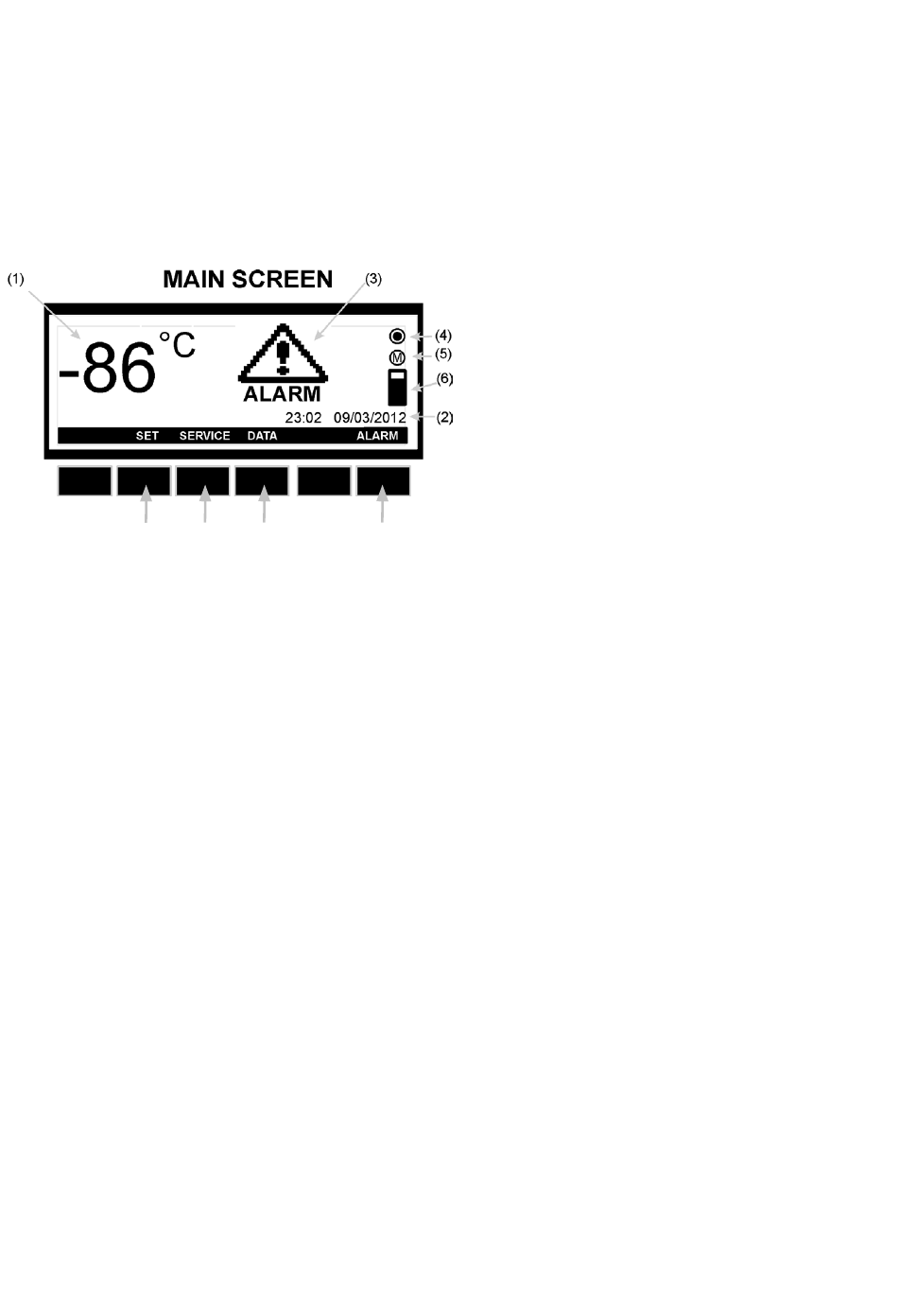

Display components

Models VTS252/254/256/258
(7) (8) (9) (10)
Operation – main view:
1� The temperature in the appliance
(measured by the TR3 probe)
2� Time and date
3� ALARM icon� Flashing by alarm turned
on when there has been an alarm, but the
alarm is no longer active�
4� Logging icon� Turned Off if no logging�
Turned On when logging�
5� Memory icon� Turned On when the
memory is 90% full� Flashing when the
memory is full, and the controller is delet-
ing the oldest logging data�
6� Memory bar� Shows the status of the
memory�
Keys – main view:
7 � Enter the Set Point menu of the tempera-
ture�
8� Enter the Service menu�
9� Enter the Data Logging menu�
10� Enter the Alarm menu�
Vestfrost Solutions 13
