Installation Instructions - Honeywell Viewguard DUAL AM BUS-2 Installationsanleitung

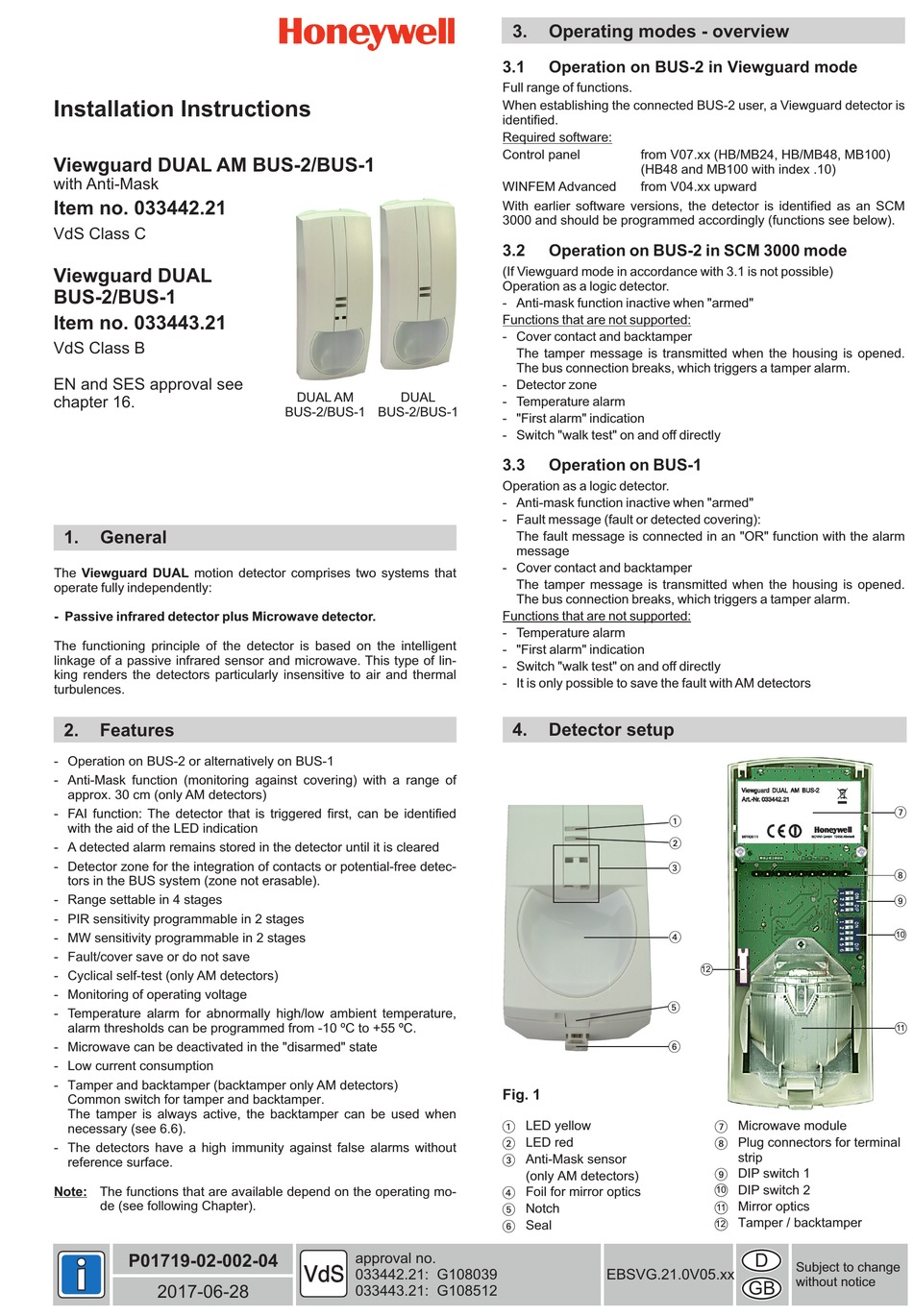

Installation Instructions

Viewguard DUAL AM BUS-2/BUS-1
with Anti-Mask
Item no. 033442.21
VdS Class C
Viewguard DUAL
BUS-2/BUS-1
Item no. 033443.21
VdS Class B
EN and SES approval see
chapter 16.
1. General
The Viewguard DUAL motion detector comprises two systems that
operate fully independently:
- Passive infrared detector plus Microwave detector.
The functioning principle of the detector is based on the intelligent
linkage of a passive infrared sensor and microwave. This type of lin-
king renders the detectors particularly insensitive to air and thermal
turbulences.
2. Features
- Operation on BUS-2 or alternatively on BUS-1
- Anti-Mask function (monitoring against covering) with a range of
approx. 30 cm (only AM detectors)
- FAI function: The detector that is triggered first, can be identified
with the aid of the LED indication
- A detected alarm remains stored in the detector until it is cleared
- Detector zone for the integration of contacts or potential-free detec-
tors in the BUS system (zone not erasable).
- Range settable in 4 stages
- PIR sensitivity programmable in 2 stages
- MW sensitivity programmable in 2 stages
- Fault/cover save or do not save
- Cyclical self-test (only AM detectors)
- Monitoring of operating voltage
- Temperature alarm for abnormally high/low ambient temperature,
alarm thresholds can be programmed from -10 ºC to +55 ºC.
- Microwave can be deactivated in the "disarmed" state
- Low current consumption
- Tamper and backtamper (backtamper only AM detectors)
Common switch for tamper and backtamper.
The tamper is always active, the backtamper can be used when
necessary (see 6.6).
- The detectors have a high immunity against false alarms without
reference surface.
Note: The functions that are available depend on the operating mo-
de (see following Chapter).
P01719-02-002-04
2017-06-28
DUAL AM DUAL
BUS-2/BUS-1 BUS-2/BUS-1
approval no.
033442.21: G108039
033443.21: G108512
3. Operating modes - overview
3.1 Operation on BUS-2 in Viewguard mode
Full range of functions.
When establishing the connected BUS-2 user, a Viewguard detector is
identified.
Required software:
Control panel from V07.xx (HB/MB24, HB/MB48, MB100)
(HB48 and MB100 with index .10)
WINFEM Advanced from V04.xx upward
With earlier software versions, the detector is identified as an SCM
3000 and should be programmed accordingly (functions see below).
3.2 Operation on BUS-2 in SCM 3000 mode
(If Viewguard mode in accordance with 3.1 is not possible)
Operation as a logic detector.
- Anti-mask function inactive when "armed"
Functions that are not supported:
- Cover contact and backtamper
The tamper message is transmitted when the housing is opened.
The bus connection breaks, which triggers a tamper alarm.
- Detector zone
- Temperature alarm
- "First alarm" indication
- Switch "walk test" on and off directly
3.3 Operation on BUS-1
Operation as a logic detector.
- Anti-mask function inactive when "armed"
- Fault message (fault or detected covering):
The fault message is connected in an "OR" function with the alarm
message
- Cover contact and backtamper
The tamper message is transmitted when the housing is opened.
The bus connection breaks, which triggers a tamper alarm.
Functions that are not supported:
- Temperature alarm
- "First alarm" indication
- Switch "walk test" on and off directly
- It is only possible to save the fault with AM detectors
4. Detector setup
1
2
3
4
5
6
Fig. 1
1
LED yellow
2
LED red
3
Anti-Mask sensor
(only AM detectors)
4
Foil for mirror optics
5
Notch
6
Seal
EBSVG.21.0V05.xx
12
7
Microwave module
8
Plug connectors for terminal
strip
9
DIP switch 1
DIP switch 2
10
Mirror optics
11
T amper backtamper /
12
D
Subject to change
without notice
GB
7
8
9
10
11
