Honeywell Viewguard DUAL AM BUS-2 Installationsanleitung Seite 12

12
11. Operation
11.1 LED indication
11.1.1 After disarming
Note: A detected alarm remains stored in the detector until it is cleared.
BUS-2, Viewguard mode
(Control panel software from V07.05 upward)
The red LED flashes:
First alarm, this detector was the first to trigger an alarm
The red LED lights up:
Subsequent alarm
all subsequent detectors
BUS-2, SCM 3000 mode or BUS-1
The red LED lights up:
Alarm detected.
11.1.2 Operating state "Walk test"
The red LED lights up:
Movement detected
The yellow LED flashes:
This signifies that a fault has occurred. A fault is triggered by one of the monito-
ring functions (see Chapter 7).
The yellow LED lights up:
Covering detected (only AM detectors)
11.1.3 Operating state "armed" and "disarmed"
The LED indication is blanked
11.1.4 Special case
(Start-up)
The red and yellow LEDs flash
- After applying the operating voltage.
- As soon as the BUS communication is correct, the red LED is switched off.
- As soon as the initialisation is finished, the yellow LED is switched off (after
aprox. 30 sec.).
- If data traffic at the BUS is incorrect.
11.2 Saved covered state
If the covered state is saved, the system cannot be armed.
Clear saved covered state:
1. Remove the cause
2. Activate the walk test. Activate the walk test to verify that the detection is working pro-
perly throughout the entire area to be monitored. The saved coverage will be deleted
during this process.
3. The detector is ready to operate again
12. Technical data
Operating voltage U_b
Operating voltge range
Current consumption at U_b=12 V DC:
- PIR
- Microwave
- LED
Range (programmable)
PIR sensor
PIR sensitivity (programmable)
MW sensitivity (programmable)
Anti-Mask function (only AM detectors)
Frequency microwave
Transmission power
Installation position
Protection class as per EN 60529
Environmental class as per VdS
Operating temperature range
Storage temperature range
Dimensions W x H x D
Colour
Honeywell Security
Novar GmbH
Johannes-Mauthe-Straße 14
D-72458 Albstadt
www.honeywell.com/security/de
12 V DC
8.0 V to 15 V DC
0.6 mA (BUS-2), 3.0 mA (BUS-1)
6 mA
4 mA
8 / 11 / 13 / 15 m
(PIR and MW operate automatically
with the same range.)
temperature compensated
normal / high
normal / high
up to 30 cm
9.35 GHz (X band)
+14 dBm EIRP max.
vertical, optics at bottom
IP 30
II
-10 °C to +55 °C
-25 °C to +70 °C
64 x 158 x 48 mm
traffic white (similar to RAL 9016)
P01719-02-002-04
2017-06-28
© 2017 Novar GmbH
Installation Instructions Viewguard DUAL / AM BUS-2/BUS-1

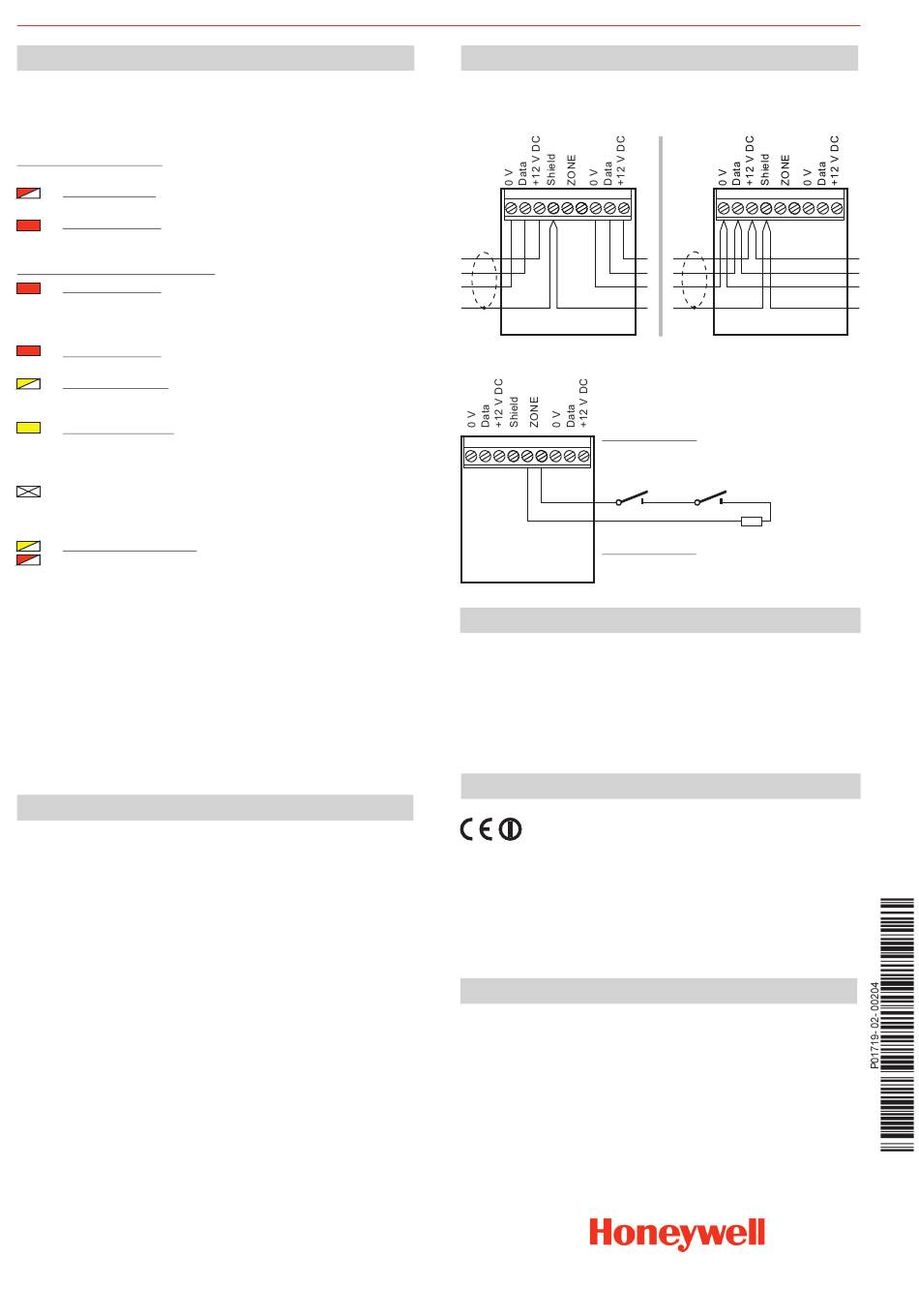

13. Connection diagram
With Version 1 in the case of a removed detector the voltage supply
is interrupted for the rest of the BUS users. If this is not requested
then Version 2 is applicable.
Version 1
BUS-2
BUS-1
Melder (max. 63)
Detector group connection (ZONE)
This connection enables the integration of contacts in the
BUS-2 system. (Not possible in SCM 3000 mode, see 3.2)
Operation on BUS-2:
should be programmed to detector zone "zero"!
Contact(s): potential-free detectors without memory function
BUS-2 BUS-2
BUS-1 BUS-1
Operation on BUS-1: The detector group is connected in
an "OR" function with the alarm message. If the detector
Detector (max. 63)
zone is not used, it must be terminated with 12k1.
14. Accessories
033390.17 Adjustable joint
Swivel range: Horizontal
as per EN grade 2
033588.17 Ball-and-socket set for wall and corner mounting
Swivel range: Horizontal ±45°, Vertical ±20°
not as per VdS and EN
033391.17 Seal (PU = 20 piece)
15. EU Conformity
Hereby, the Novar GmbH declares that the radio equipment Viewguard
DUAL AM BUS-2/BUS-1, Item no. 033442.21 and Viewguard DUAL BUS-
2/BUS-1, Item no. 033443.21 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration can be downloaded from our homepage
https://www.security.honeywell.de/ in the service/download area.
The devices may only be sold and operated in the following countries:
Germany, Austria, Switzerland, Liechtenstein, Poland, Slovakia, Czech Republic,
Luxembourg, Turkey, Greece, Lithuania, Hungary, Belgium, Netherlands, Bulgaria and
Romania.
16. Approvals
033442.21 Viewguard DUAL AM BUS-2/BUS-1
VdS G108039, IDS Class C
As per EN 50131-1 and EN 50131-2-2: 2008-09, grade 3
As per SES-EMA-RL-T2:2010-08
033443.21 Viewguard DUAL BUS-2/BUS-1
VdS G108512, IDS Class B
As per EN 50131-1 and EN 50131-2-2: 2008-09, grade 2
As per SES-EMA-RL-T2:2010-08
Version 2
BUS-2
BUS-1
Melder (max. 63)
If the detector zone is not used, it
12k1
±20°, Vertical +4° up to -8°
