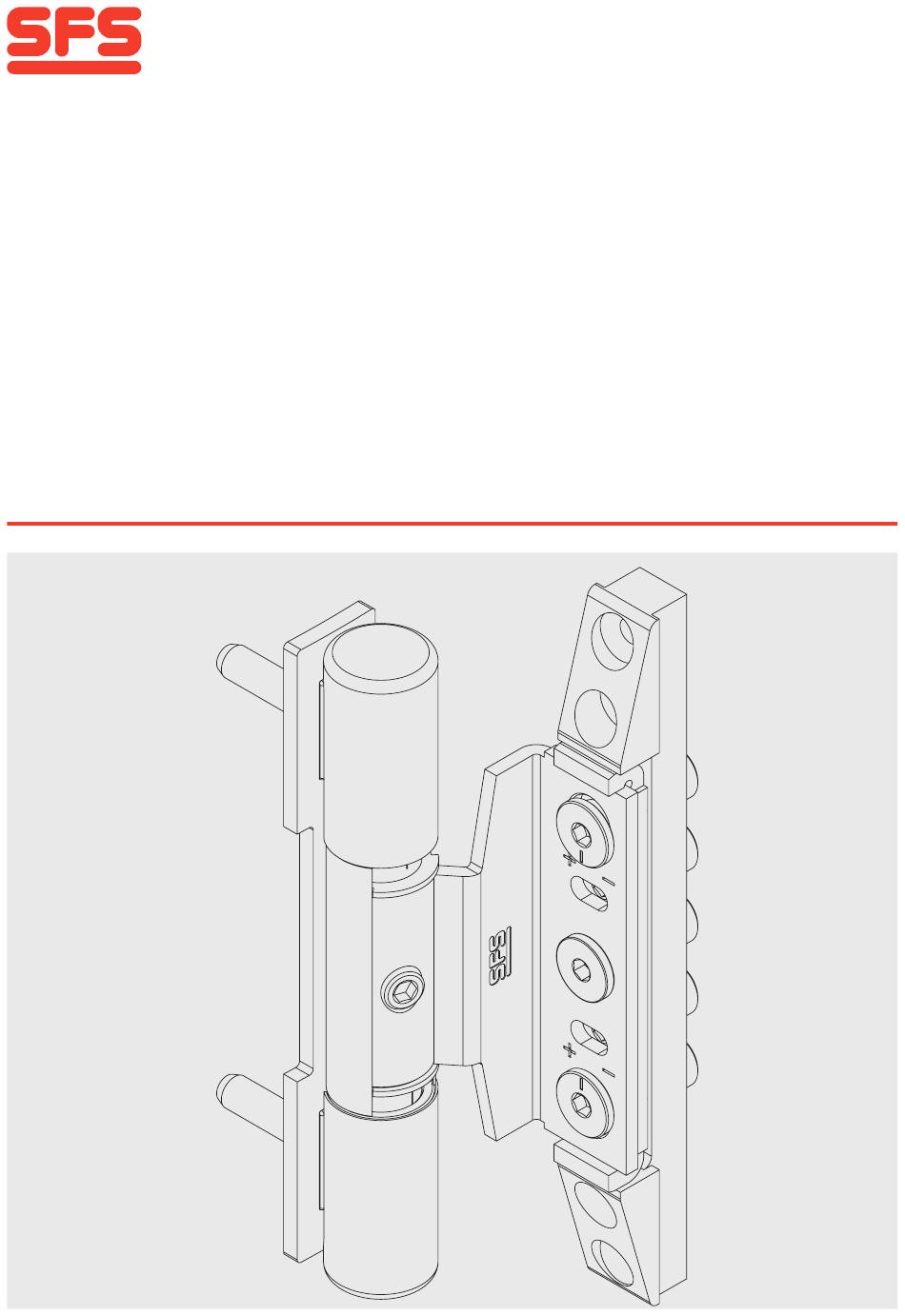

Istruzioni di montaggio e regolazione
Dynamic 3D Ø 20
Fitting and adjustment instructions
Dynamic 3D Ø 20
Montage- und Verstellanleitung
Dynamic 3D Ø 20

Werbung

loading

Inhaltszusammenfassung für SFS Dynamic 3D

  • Seite 1 Istruzioni di montaggio e regolazione Dynamic 3D Ø 20 Fitting and adjustment instructions Dynamic 3D Ø 20 Montage- und Verstellanleitung Dynamic 3D Ø 20...
  • Seite 2 Schemi di foratura Drilling scheme - Bohrung Schema Verificare che gli ingombri 21,5 Ø11 Ø7 ,2 del vostro serramento corrispondano a quanto indicato nello schema. La cerniera è settata per cava euro 9/13mm. Sezione A-A La funzionalità della Sezione B-B Scala: 1:1 21,5 cerniera è...
  • Seite 3 Istruzioni montaggio anta Sash fitting instructions - Montageanleitung Türflügel È possibile asportare la guarnizione prendendo come riferimento la parte anta, e sostituirla con apposita guarnizione in dotazione. If necessary, it is possible to remove Falls nötig, kann die Dichtung einfach the gasket using the sash part as unterbrochen werden, indem man die reference, and replace it with the...
  • Seite 4 Istruzioni montaggio telaio Frame fitting instructions - Montageanleitung Rahmen Inserire gli anelli laterali nei fori e fissare con viti adeguate al tipo di serramento. Fasten the frame plate with suitable Rahmenteil in die Bohrungen einsetzen fasteners for your door or window. und mit Schrauben welche auf die Materialart abgestimmt sind, befestigen.
  • Seite 5 Istruzioni montaggio Fitting instructions - Montageanleitung Inserire l’anta nel telaio e inserire la spina , premere a fondo e bloccare il grano con chiave a brugola da 4 mm. Applicare il cappuccio centrale e poi i cappucci laterali Rimozione spina: Allentare il grano di 2 giri e spingere attraverso il grano con chiave a...
  • Seite 6 Video istruzioni montaggio Video istruzioni regolazione Fitting instruction video Adjustment instruction video Video Montageanleitung Video Verstellanleitung http://www.sfsintec.biz/it/ht025 http://www.sfsintec.biz/it/ht024...
  • Seite 7 Istruzioni di regolazione Adjustment instructions - Verstellanleitung Regolazione laterale: Allentare la vite di tre giri. Agire sulle viti alternativamente con chiave a brugola da 4 mm. Chiudere la vite Regolazione ± 3 mm. Regolazione in profondità: Allentare la vite e ruotare le viti alternativamente per avere più...
  • Seite 8 SFS intec S.r.l. Division Construction Via Castelfranco Veneto, 71 it.info@sfsintec.biz IT-33170 Pordenone www.sfsintec.it...
