pico ADC-10/12/40/42

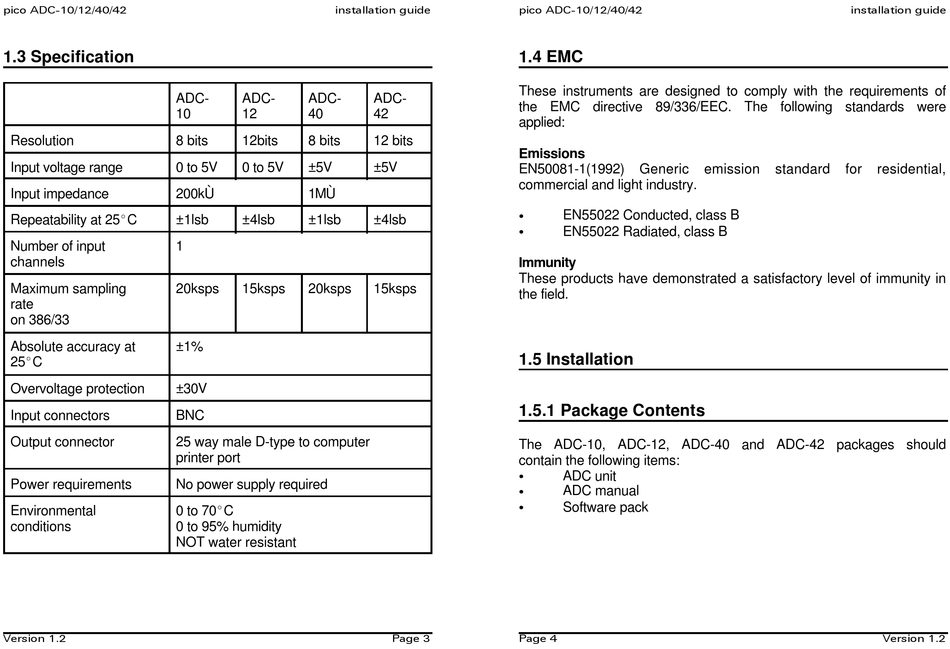

1.3 Specification
ADC-
10
Resolution 8 bits
Input voltage range 0 to 5V
Input impedance 200kÙ
Repeatability at 25EC ±1lsb
Number of input 1
channels
Maximum sampling 20ksps
rate
on 386/33
Absolute accuracy at ±1%
25EC
Overvoltage protection ±30V
Input connectors BNC
Output connector 25 way male D-type to computer
printer port
Power requirements No power supply required
Environmental 0 to 70EC
conditions 0 to 95% humidity
NOT water resistant
Version 1.2
installation guide
ADC- ADC- ADC-
12 40 42
12bits 8 bits 12 bits
0 to 5V ±5V ±5V
1MÙ
±4lsb ±1lsb ±4lsb
15ksps 20ksps 15ksps
Page 3
pico ADC-10/12/40/42
1.4 EMC
These instruments are designed to comply with the requirements of
the EMC directive 89/336/EEC. The following standards were
applied:
Emissions
EN50081-1(1992) Generic
commercial and light industry.
C
EN55022 Conducted, class B
C
EN55022 Radiated, class B
Immunity
These products have demonstrated a satisfactory level of immunity in
the field.
1.5 Installation

1.5.1 Package Contents

The ADC-10, ADC-12, ADC-40 and ADC-42 packages should
contain the following items:
C
ADC unit
C
ADC manual
C
Software pack
Page 4
installation guide
emission standard for residential,
Version 1.2
