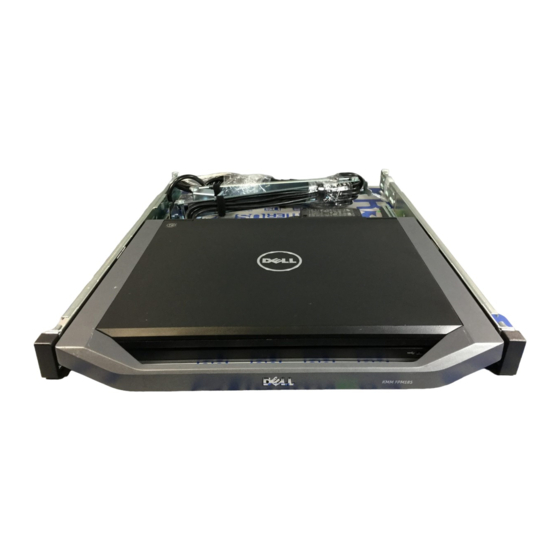

KVM Switch The Dell 1U Rackmount LED Console Tray supports Dell Server Console Switch models 1081AD, 1082DS, 2161AD, 2162DS and 4322DS behind the LED Console Tray in the same 1U space. NOTE: The minimum EIA flange spacing for the console tray and console switch is 450 Installing the KVM switch: ...
Seite 4
Route the cables through the cable channel on the side of the switch. KVM Switch...
Seite 5
Figure 2. Routing the Cable Through the Cable Channel KVM Switch...
Seite 6
From the rear of the rack, push the switch in behind the LED console and screw in the thumb screws to secure the switch. Connect the KVM switch to the console tray and connect any servers or target devices to the KVM switch. Figure 3.
Seite 21
Commutateur KVM Le plateau de console 1U DEL Rackmount Dell prend en charge les modèles de commutateur de console Dell pour serveur 1081AD, 1082DS, 2161AD, 2162DS et 4322DS derrière le plateau de console DEL, dans le même espace REMARQUE : L'espace minimal selon la norme EIA entre le plateau de console et le commutateur de console est de 450 mm.
Seite 22
Fixez un support de chaque côté du commutateur à l’aide des deux vis fournies pour chaque côté. Figure 1. Fixation des supports Commutateur KVM...
Seite 23
Faites passer les câbles dans le passage de câbles situé sur le côté du commutateur. Commutateur KVM...
Seite 24
Figure 2. Acheminement du câble via le passage de câbles Commutateur KVM...
Seite 25
Depuis l'arrière du rack, poussez le commutateur à l'intérieur derrière la console DEL et serrez les vis à oreilles pour le maintenir en place. Raccordez le commutateur KVM au plateau de console, puis les éventuels serveurs ou dispositifs cible au commutateur. Figure 3.
Seite 29
KVM-Switch Das Dell 1 HE LED-Konsolen-Tray zur Befestigung im Rack unterstützt die Dell Server-Console-Switch-Modelle 1081AD, 1082DS, 2161AD, 2162DS und 4322DS hinter dem LED-Konsolen-Tray im selben 1 HE-Rackplatz. HINWEIS: Der Flansch-Mindestabstand nach EIA für das Konsolen-Tray und den Console Switch beträgt 450 mm.
Seite 30
Befestigen Sie eine Halterung an jeder Switch-Seite. Verwenden Sie dazu jeweils die beiden im Lieferumfang enthaltenen Schrauben. Abbildung 1. Anbringen der Halterungen KVM-Switch...
Seite 31
Verlegen Sie die Kabel durch den Kabelkanal an der Seite des Switch. KVM-Switch...
Seite 32
Abbildung 2. Verlegen der Kabel durch den Kabelkanal KVM-Switch...
Seite 33
Schieben Sie den Switch von der Rückseite des Racks hinter die LED- Konsole und befestigen Sie ihn mithilfe von Flügelschrauben. Verbinden Sie den KVM-Switch mit dem Konsolen-Tray und schließen Sie alle benötigten Server und Zielgeräte am KVM-Switch an. Abbildung 3. Switch-Konfiguration KVM-Switch...
Seite 53
KVM-коммутатор П озади лотка светодиодной консоли Dell размера 1U для установки в стойку — в том же отсеке 1U — можно разместить серверный консольный коммутатор Dell моделей 1081AD, 1082DS, 2161AD, 2162DS и 4322DS. П РИ МЕЧАН И Е. Минимальное расстояние для раз мещения фланца...
Seite 54
П рикрепите по кронштейну к каждой стороне коммутатора с помощью четырех прилагаемых винтов. Рис. 1. Крепление кронштейнов KVM-к оммутатор...
Seite 55
П роложите кабели через кабельный канал на боковой части коммутатора. KVM-к оммутатор...
Seite 56
Рис. 2. Прокладка кабеля через кабельный канал KVM-к оммутатор...
Seite 57
Н а задней панели стойки вставьте коммутатор позади светодиодной консоли и закрутите винты с накатанной головкой, чтобы закрепить его. П одключите KVM-коммутатор к лотку консоли, а затем подсоедините к этому KVM-коммутатору требуемые серверы или конечные устройства. Рис. 3. Конфигурация коммутатора KVM-к...
Seite 61
Conmutador KVM La bandeja de la Consola LED Rackmount 1U de Dell es compatible con los modelos del conmutador de consola de servidor Dell 1081AD, 1082DS, 2161AD, 2162DS y 4322DS ubicados detrás de la bandeja de la Consola LED en el mismo espacio 1U.
Seite 62
Acople un soporte a cada lado del conmutador con los dos tornillos provistos para cada lado. Figura 1. Acoplamiento de los soportes Conmutador KVM...
Seite 63
Direccione los cables a través del cable canal ubicado en uno de los lados del conmutador. Conmutador KVM...
Seite 64
Figura 2. Direccionamiento de los cables a través del cable canal Conmutador KVM...
Seite 65
Desde la parte posterior del rack, empuje el conmutador hacia adentro y atrás de la consola LED, y ajuste los tornillos de apriete manual para fijar el conmutador. Conecte el conmutador KVM a la bandeja de la consola y conecte los servidores o dispositivos de destino que desee al conmutador KVM.
