Instar IN-MOTION 500 Installationsanleitung Seite 22

Ӽ Microwave Sensitivity Switch
V+ Power Supply +
V- Power Supply -
Relay Jumper
C & NC
C1/T2 Relay Jumper
& NO1
C1/T2
&T1
Downloaded from www.Manualslib.com
+
less
sensitiv
Connector for the 12V power supply +
Connector for the 12V power supply -
Allows you to set the relay to Normally Closed
(C&NC). In N.C. mode an interruption in the
N.C. connection to the sensor, e.g. when it is damaged, will
lead to an alarm. N.C. is the standard mode.
Allows you to set the relay to Normally Open (C1/
T2 &NO1). In N.O. mode an interruption in the
N.O. connection to the sensor will not cause an alarm. The
N.O. mode is not recommended.
This is for external tamper switch to cause an alarm
Tamper
in case the sensor is opened to avoid manipulation.
manuals search engine
Microwave sensitivity can be adjusted by
turning the controller:
more
sensitiv
- clockwise for higher sensitivity
- counter clockwise for lower sensitivity
Remark: If the microwave sensor is dam-
aged, the detector will trigger a constant
alarm.

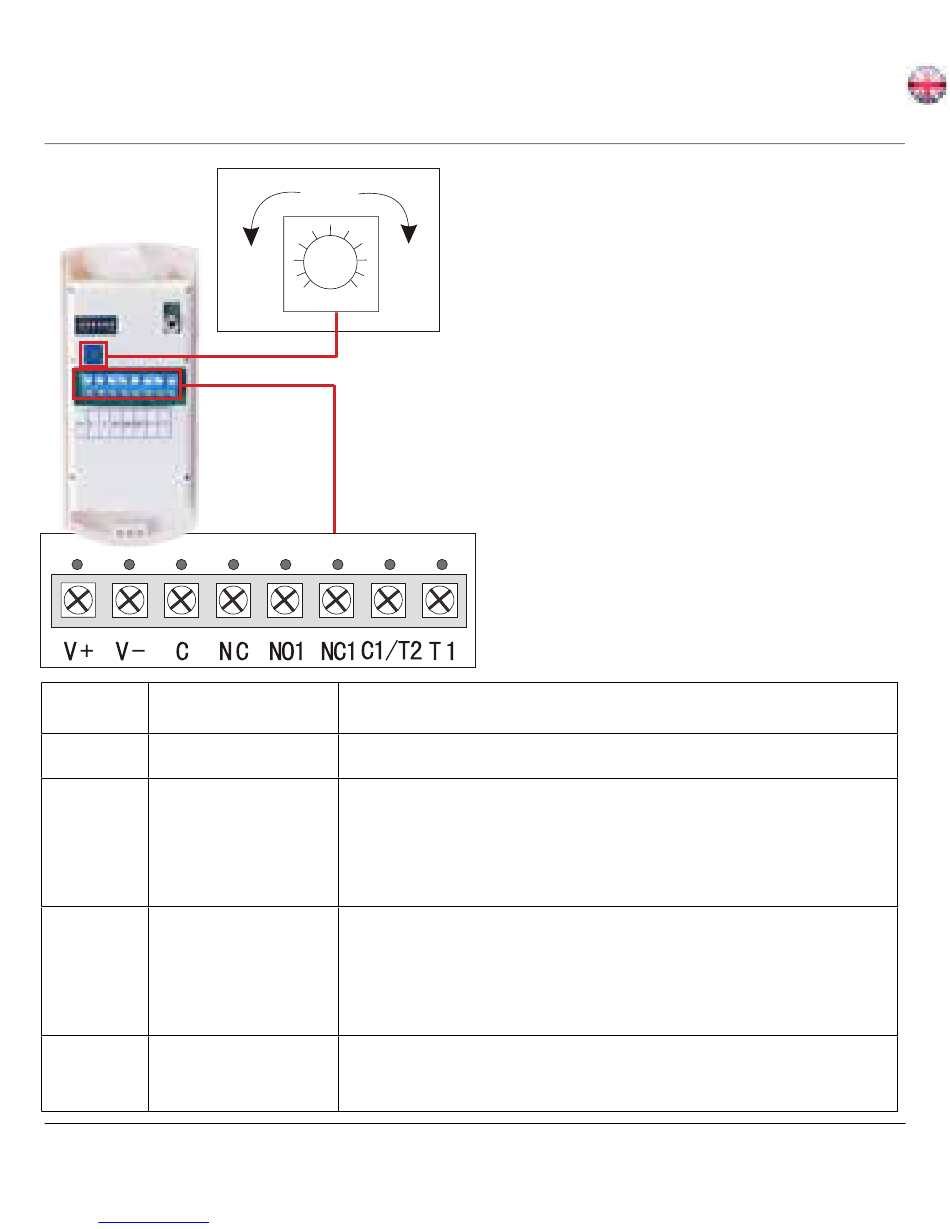

Wiring
Layout
5
-EN
