Assembly; Assembly With Trolley Base; Water Tank Attached; Secure Grip - Zipper ZI-DS2V-AKKU Original Bedienungsanleitung

15
15.1

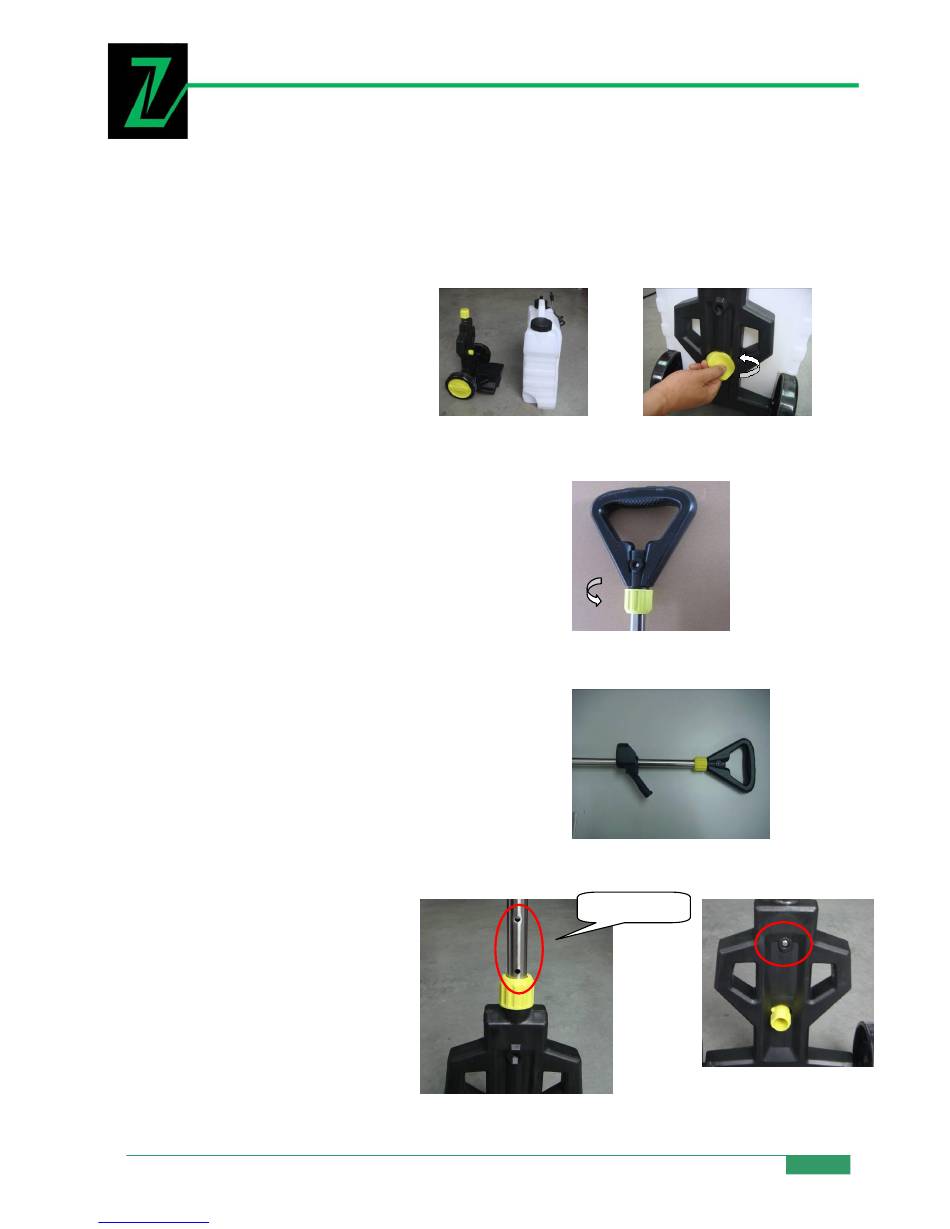

15.1.1 Water tank attached:

Put the water tank with the side of the
screw-down opening on to the trolley
base.
Attach the bracket by turning the
screw counterclockwise tank.

15.1.2 Secure grip:

Loosen the union nut.
Slide the grip on the metal tube.
The locking pin has to be inserted into the bore of the
metal tube.
Turn the nut clockwise.

15.1.3 Attach spray gun holder

Put the gun holder on the metal tube.

15.1.4 Install metal pipe to trolley base

Loosen the union nut. Insert
the metal tube base trolley.
Adjust the height and secure
with locking pin. Nut clockwise
turn.
Z.I.P.P.E.R Maschinen Austria
Drucksprüher / Garden Sprayer ZI-DS2V-AKKU
Downloaded from www.Manualslib.com

ASSEMBLY

Assembly with Trolley Base

www.Zipper-maschinen.at
manuals search engine
ASSEMBLY
adjust height
