Powerware 5125 Installationsanleitung Seite 14

Installation
8
Downloaded from www.Manualslib.com
NOTE If there are two UPSs in a rack, up to two EBMs may be connected to each
UPS.
Ground Bonding
Multi-Server Module Port 1
UPS Battery
Connector
EBM Battery
Connectors

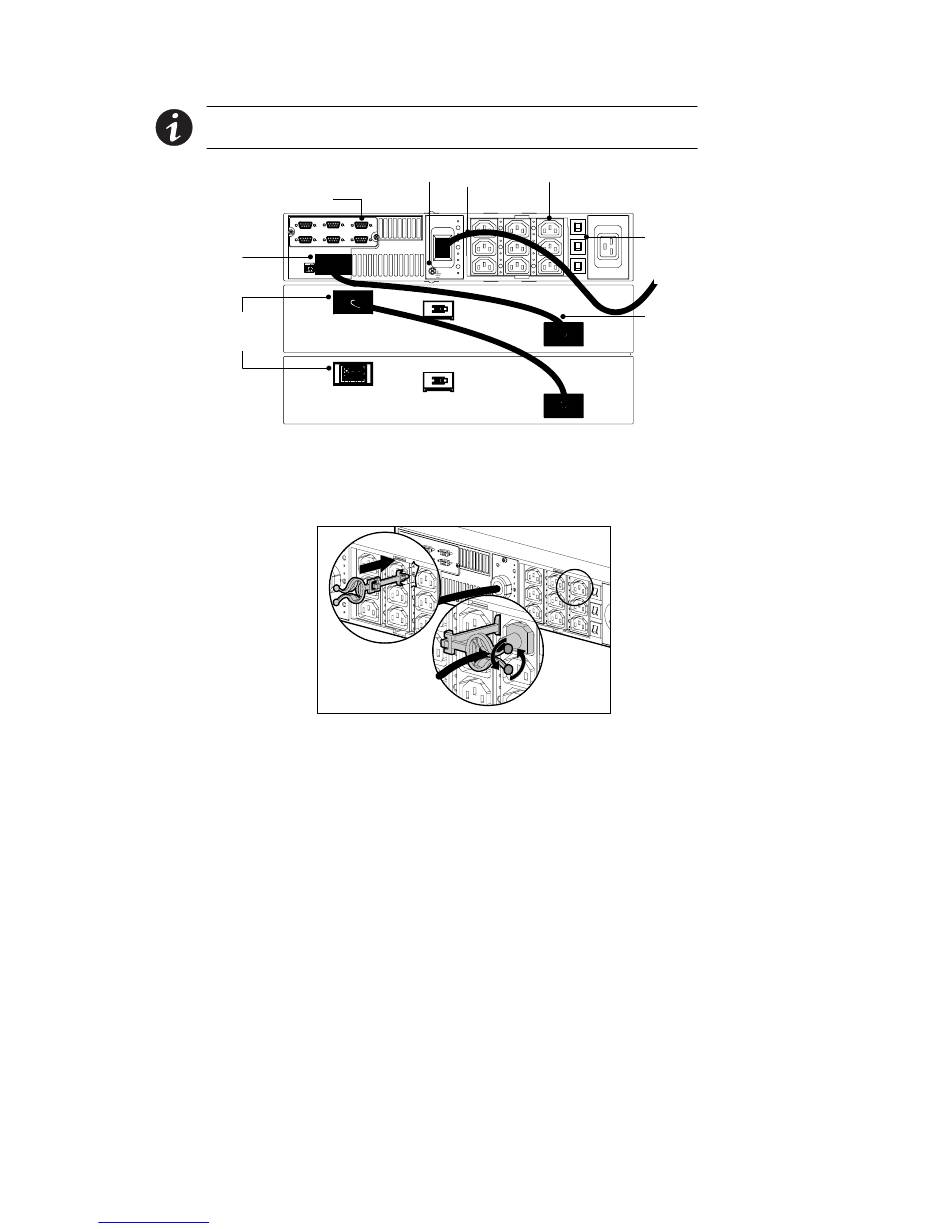

Figure 4. Typical Installation with Two EBMs
5. Insert the supplied cord retention clips by each output
receptacle that will be used (see Figure 5).
Figure 5. Attaching the Cord Retention Clips
Powerware ® 5125 Installation Guide for IBM Applications
manuals search engine
Output Receptacles
Power Cord
Screw
:
164201356 B Uncontrolled Copy
Circuit
Breakers
EBM
Cable
