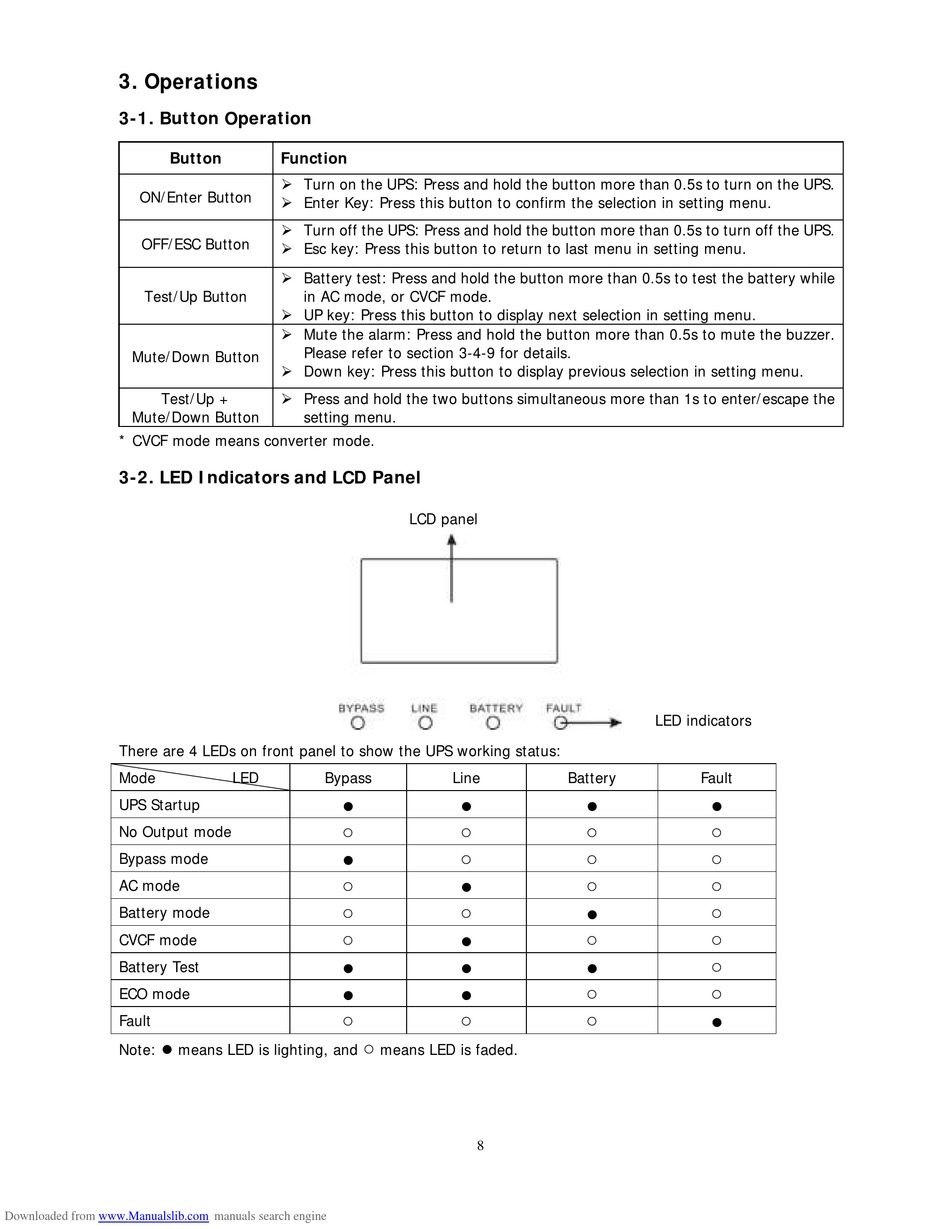

3. Operations

3-1. Button Operation

Button
ON/ Enter Button
OFF/ ESC Button
Test/ Up Button
Mute/ Down Button
Test/ Up +
Mute/ Down Button
* CVCF mode means converter mode.
3-2. LED I ndicators and LCD Panel
There are 4 LEDs on front panel to show the UPS working status:
Mode
UPS Startup
No Output mode
Bypass mode
AC mode
Battery mode
CVCF mode
Battery Test
ECO mode
Fault
●
Note: means LED is lighting, and
Downloaded from www.Manualslib.com
Function

Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS.

Enter Key: Press this button to confirm the selection in setting menu.

Turn off the UPS: Press and hold the button more than 0.5s to turn off the UPS.

Esc key: Press this button to return to last menu in setting menu.

Battery test: Press and hold the button more than 0.5s to test the battery while
in AC mode, or CVCF mode.

UP key: Press this button to display next selection in setting menu.

Mute the alarm: Press and hold the button more than 0.5s to mute the buzzer.
Please refer to section 3-4-9 for details.

Down key: Press this button to display previous selection in setting menu.

Press and hold the two buttons simultaneous more than 1s to enter/ escape the
setting menu.
LED Bypass
●
○
●
○
○
○
●
●
○
○
means LED is faded.
manuals search engine
LCD panel
Line Battery
● ●
○ ○
○ ○
○
●
○
●
○
●
● ●
○
●
○ ○
8
LED indicators
Fault
●
○
○
○
○
○
○
○
●
