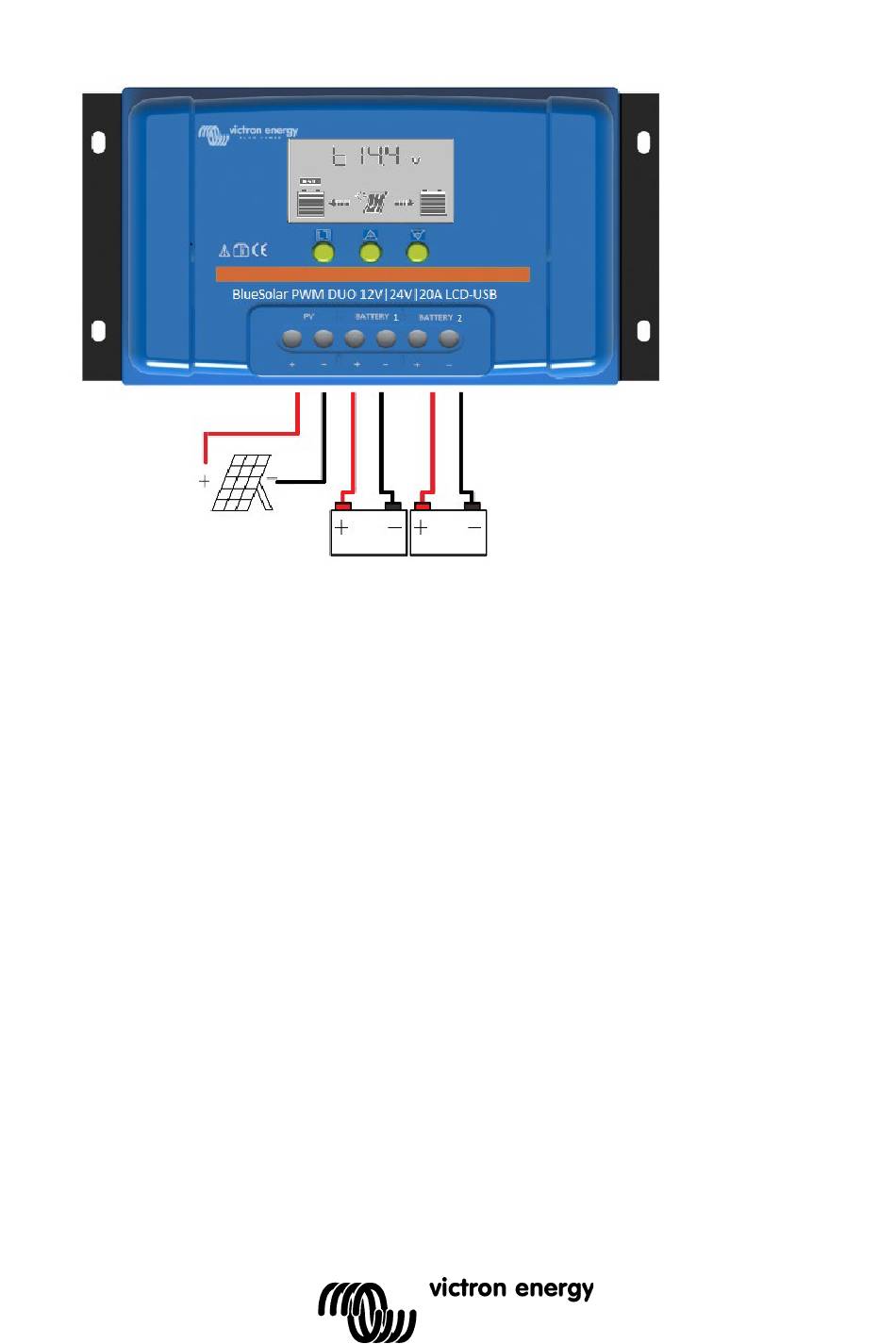

1. Connect the battery1 - plus and minus.
2. Connect the battery2 - plus and minus.
3. Connect the solar array - plus and minus.
The reverse order applies when deinstalling.
An improper sequence order can damage the
USB!
1. Make sure your battery1 is charged for the
to recognize the battery type before first installation.
2. The battery cables should be as short as possible to minimize losses.
3. The BlueSolar PWM DUO 12V|24V|20A LCD-USB
LiFePO4 batteries.
4. The BlueSolar PWM DUO 12V|24V|20A LCD-USB
modules. Never connect another charging source to the charge BlueSolar Charge
Controller.
2
BlueSolar PWM DUO 12V|24V|20A LCD-
BlueSolar PWM DUO 12V|24V|20A LCD-USB
is only suitable for lead-acid, and
is only suitable for regulating solar
