Pfannenberg Quadro LED-HI Sicherheitshinweise / Kurzanleitung Seite 4

en

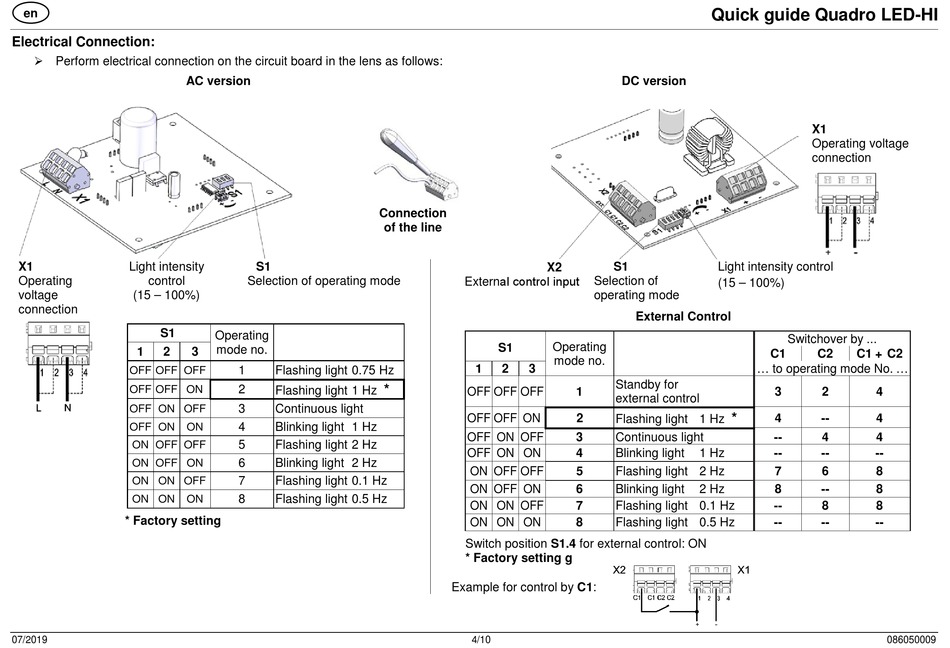

Electrical Connection:
 Perform electrical connection on the circuit board in the lens as follows:
AC version
X1 Light intensity
Operating control
voltage (15 – 100%)
connection
S1
1 2 3
OFF OFF OFF
OFF OFF ON
OFF ON OFF
OFF ON ON
ON OFF OFF
ON OFF ON
ON ON OFF
ON ON ON
* Factory setting
07/2019
Connection
of the line
S1
Selection of operating mode
Operating
mode no.
1 Flashing light 0.75 Hz
*
2
Flashing light 1 Hz
3 Continuous light
4 Blinking light 1 Hz
5 Flashing light 2 Hz
6 Blinking light 2 Hz
7 Flashing light 0.1 Hz
8 Flashing light 0.5 Hz
DC version
S1
X2
External control input
Selection of
operating mode
Operating
S1
mode no.
1 2 3
Standby for
OFF OFF OFF 1
external control
OFF OFF ON 2
Flashing light 1 Hz
OFF ON OFF 3 Continuous light
OFF ON ON 4 Blinking light
ON OFF OFF 5 Flashing light 2 Hz
ON OFF ON 6 Blinking light
ON ON OFF 7 Flashing light 0.1 Hz
ON ON ON 8 Flashing light 0.5 Hz
Switch position S1.4 for external control: ON
* Factory setting g
Example for control by C1:
4/10
Quick guide Quadro LED-HI
X1
Operating voltage
connection
Light intensity control
(15 – 100%)
External Control
Switchover by ...
C1
... to operating mode No. ...
3
*
4
--
1 Hz --
7
2 Hz 8
--
--
C2 C1 + C2
2 4
-- 4
4 4
-- --
6 8
-- 8
8 8
-- --
086050009
