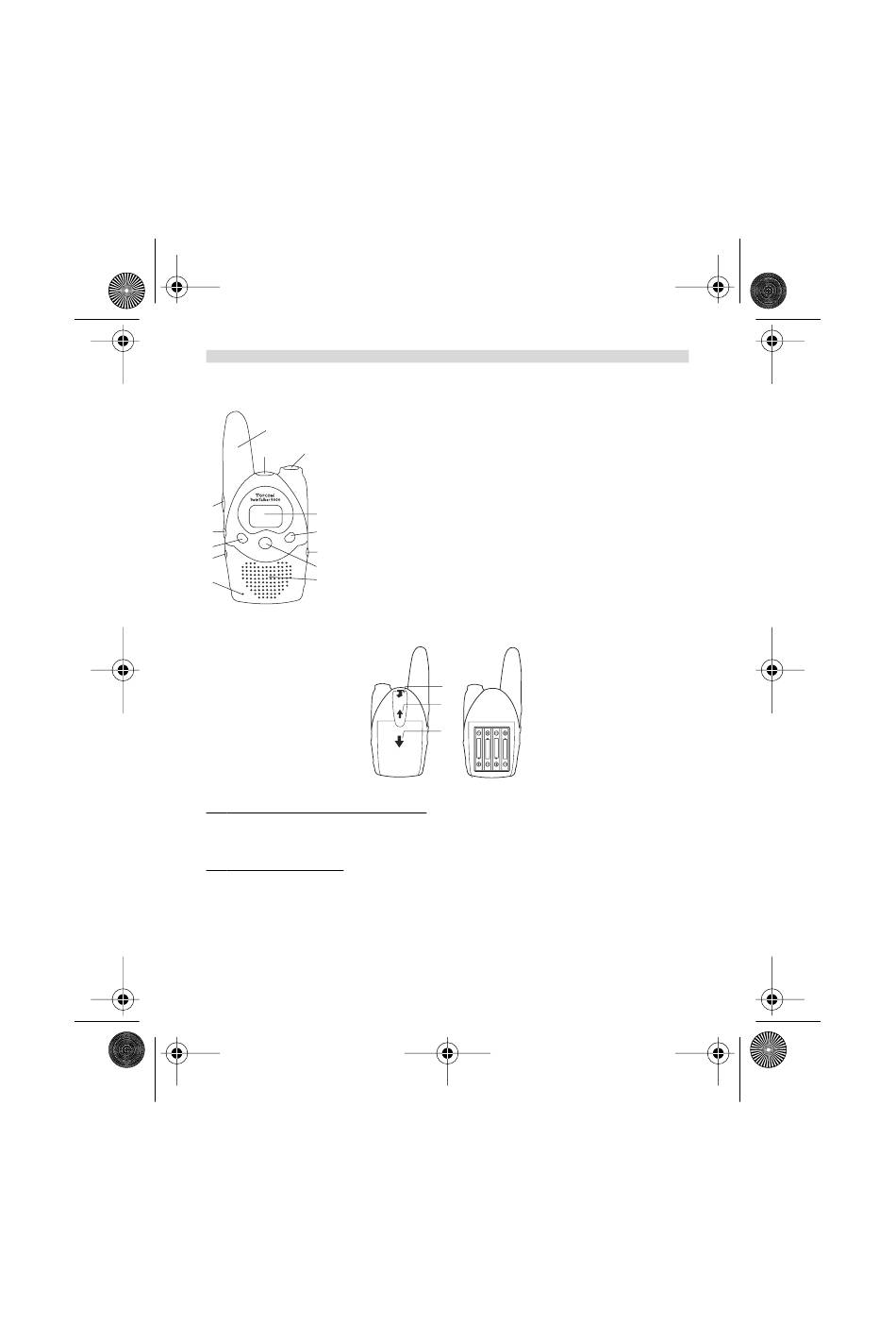

1. DESCRIPTION

1
13
12
2
11
3 10
4
9
5
8
7
6

2. INSTALLATION

2.1. Removing/Installing the Belt Clip

1. To remove the clip from the unit, push up on the belt clip while pulling the clip tab.
2. When re-installing the belt clip, a click indicates the BeltClip is locked into position.

2.2. Battery Installation

1. Remove the belt clip.
2. Push the battery cover and slide it away from the antenna
3. Install four 'AAA' alkaline or rechargeable batteries following the polarity as shown.
4. Re-install the Battery Cover and Belt Clip
4
1. Antenna
2. Talk Button
3. Call Button
4. Flash light button
5. Charger Jack
6. Microphone
7. Speaker
8. Navigator button
9. Earphone Jack
10. Menu button
11. LCD screen
12. On/Off button
13. Flashlight
1
2
3
Topcom Twintalker 5000
