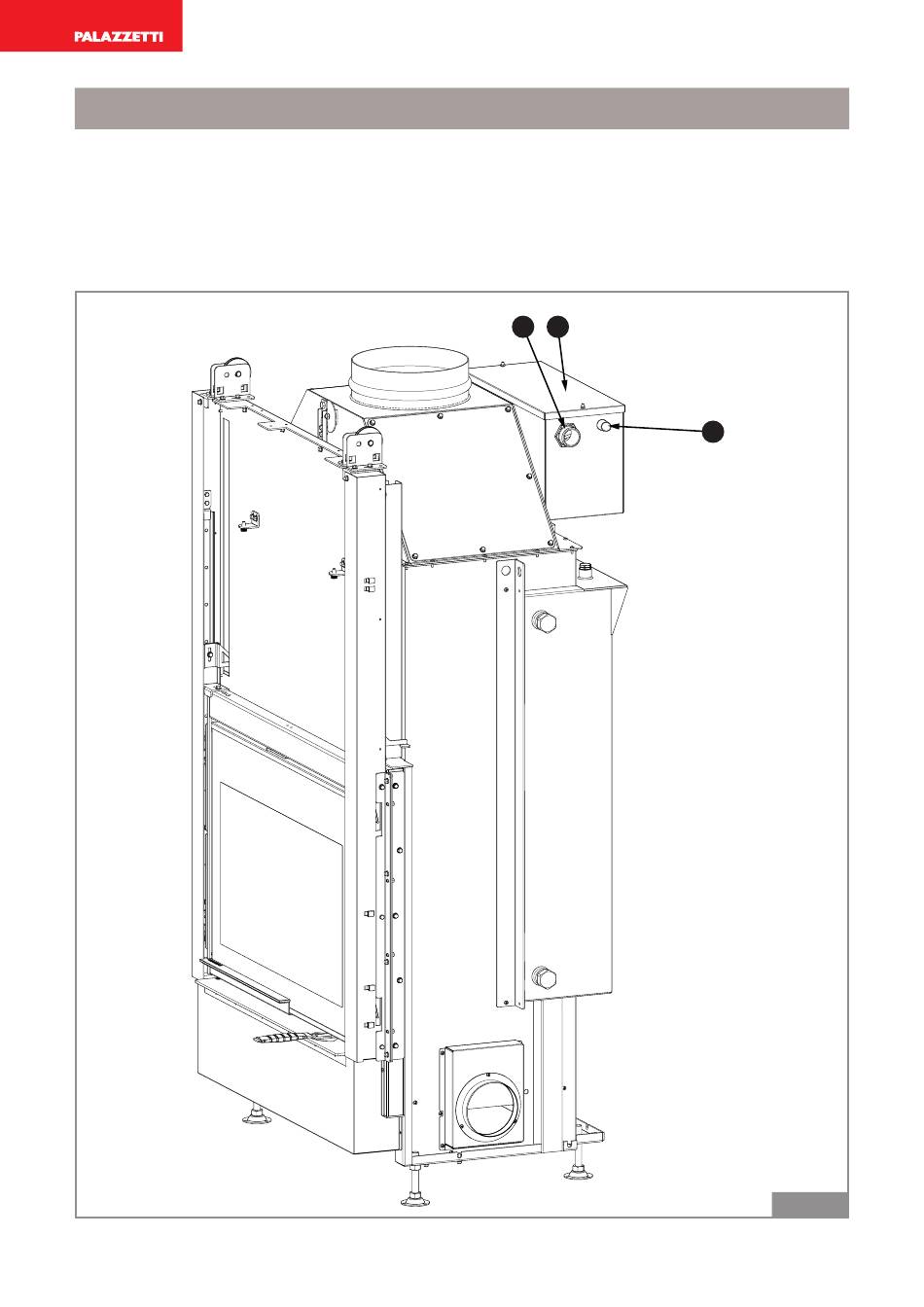

Description of the hydraulic connections
(Fig. 5.9c)
The hydraulic unit comprises the following parts:
G) Expansion chamber open
O) Expansion chamber discharge
N) Mains water inlet
40
HWT version
Connection to the water circuit
The stove is connected to the water circuit at the
following points:
• Mains water inlet (N)
• Expansion chamber discharge (O)
O G
N
Fig. 5.9c
004778240 - 15/04/2020
