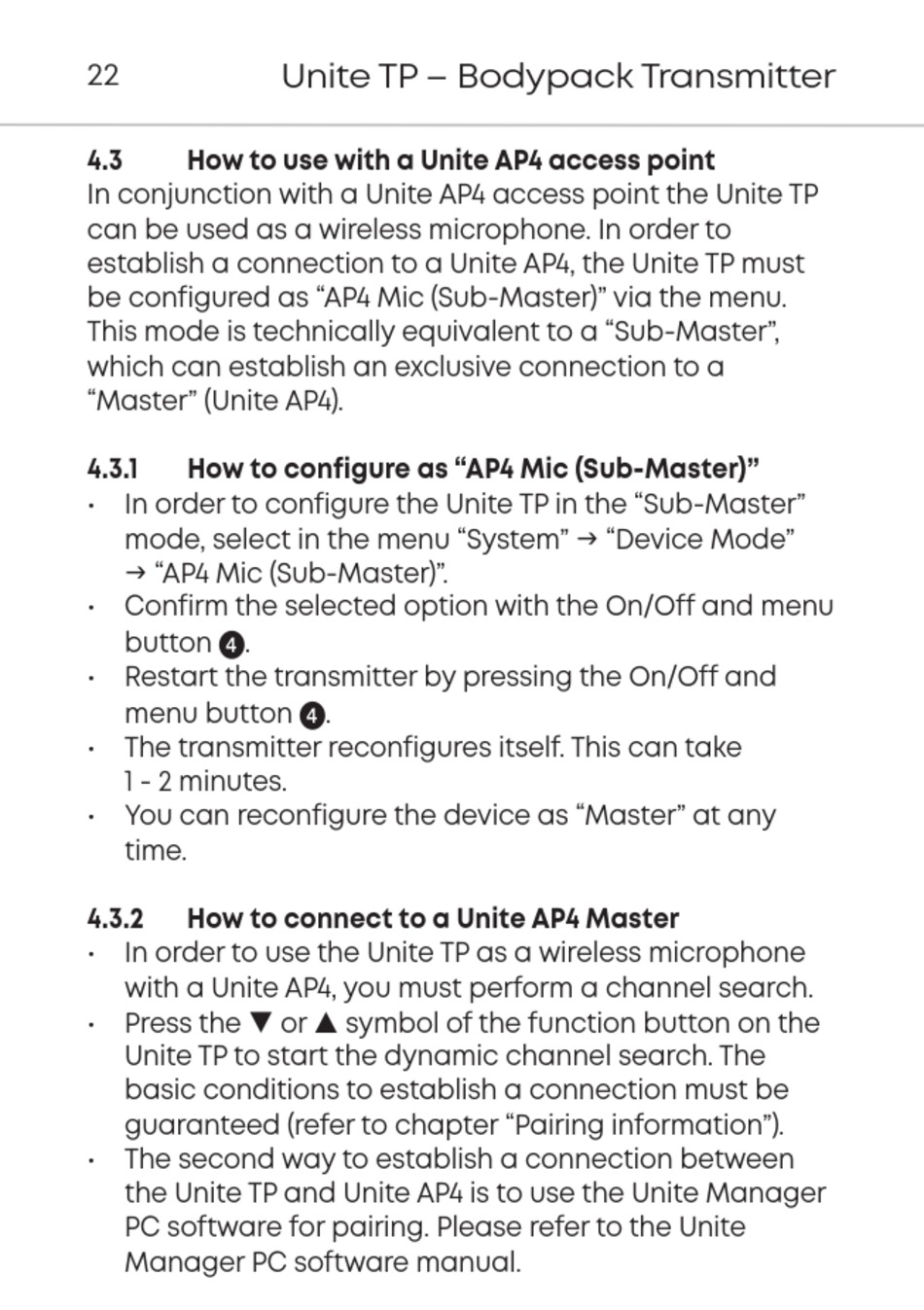

4.3 How to use with a Unite AP4 access point
In conjunction with a Unite AP4 access point the Unite TP
can be used as a wireless microphone. In order to
establish a connection to a Unite AP4, the Unite TP must
be configured as "AP4 Mic (Sub-Master)" via the menu.
This mode is technically equivalent to a "Sub-Master",
which can establish an exclusive connection to a
"Master" (Unite AP4).
4.3.1 How to configure as "AP4 Mic (Sub-Master)"
• In order to configure the Unite TP in the "Sub-Master"
mode, select in the menu "System" g "Device Mode"
g "AP4 Mic (Sub-Master)".
• Confirm the selected option with the On/Off and menu
button .
• Restart the transmitter by pressing the On/Off and
menu button
• The transmitter reconfigures itself. This can take
1 - 2 minutes.
• You can reconfigure the device as "Master" at any
time.
4.3.2 How to connect to a Unite AP4 Master
• In order to use the Unite TP as a wireless microphone
with a Unite AP4, you must perform a channel search.
• Press the q or p symbol of the function button on the
Unite TP to start the dynamic channel search. The
basic conditions to establish a connection must be
guaranteed (refer to chapter "Pairing information").
• The second way to establish a connection between
the Unite TP and Unite AP4 is to use the Unite Manager
PC software for pairing. Please refer to the Unite
Manager PC software manual.
