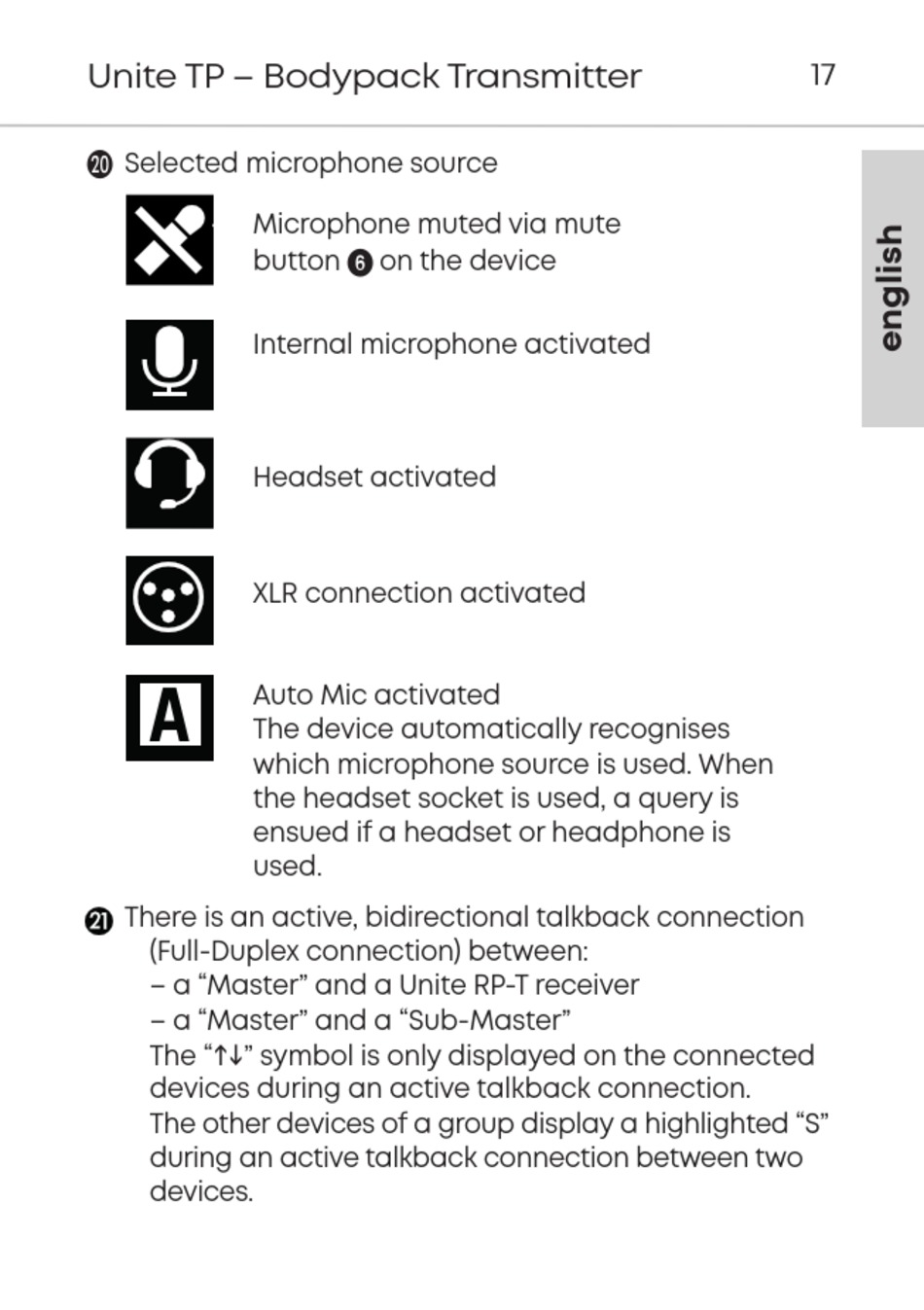

Beyerdynamic UNITE TP Kurzanleitung Seite 17

Unite TP – Bodypack Transmitter
Selected microphone source
Microphone muted via mute
button
Internal microphone activated
Headset activated
XLR connection activated
A
Auto Mic activated
The device automatically recognises
which microphone source is used. When
the headset socket is used, a query is
ensued if a headset or headphone is
used.
There is an active, bidirectional talkback connection
(Full-Duplex connection) between:
– a "Master" and a Unite RP-T receiver
– a "Master" and a "Sub-Master"
The "hi" symbol is only displayed on the connected
devices during an active talkback connection.
The other devices of a group display a highlighted "S"
during an active talkback connection between two
devices.
on the device
17
