Well-contact Plus
01582-01587
01582 - Home automation control module with four pushbuttons and actuator
for 1 roller shutter with slat tilt function with change-over relay output for cos
ø motor 0.6 2 A 120-240 V~ 50/60 Hz, KNX standard, RGB LED location in the
dark with brightness control, to be completed with interchangeable half-but-
tons: 1 or 2 module Eikon, 2 module Arké or Plana.
01587 - Home automation control module with four pushbuttons and relay
for 1 shutter actuator with slat tilt function with change-over relay output for
cos ø motor 0.6 2 A 120-240 V~ 50/60 Hz, KNX standard, RGB LED location
in the dark with brightness control, to be completed with interchangeable
half-buttons: 1 or 2 module Eikon, 3 module Arké or Plana.
he device is equipped with independent pushbuttons that can be used as ON/OFF controls
and for controlling roller shutters and lights. It is equipped with an actuator for control of roller
shutters with tilting slats; it is also equipped with RGB LEDS with configurable colour.
FEATURES.
• Rated supply voltage from bus: 30 Vdc. SELV
• Current draw from the bus: 25 mA
• Red LED and configuration button
• Relay output for roller shutters and slat tilt control
• Operating temperature: -5°C to +45°C (indoor use)
• Ingress protection rating: IP20
• Art. 01582:
- 4 independent pushbuttons
- 4 RGB LEDs with configurable colour
• Art. 01587:
- 6 independent pushbuttons
- 6 RGB LEDs with configurable colour
CONTROLLABLE LOADS.
- cos ø 0.6 motors: 2 A (100,000 cycles) @ 120-240 V

OPERATION.

The device can be used in two different modes:
• Functions with independent pushbuttons:
- Send ON, OFF, timed ON and force output status commands
- Switch ON and OFF on the up edge and on the down edge
- Call up a scenario with a short press of the pushbutton; call up or a second scenario or
save a scenario with a long press
- Send one or two values by a short or long press of the pushbutton
- Roller shutter control
- Dimmer control
- Toggle
• Possible functions of the buttons with 2 associated channels:
- ON and OFF switch
- Dimmer control
- Roller shutters control
For each of these three functions, the control direction can be reversed.
For the RGB LEDs, you can set:
- the colour each individual LED, either by choosing from a list or by setting the RGB coor-
dinates using the ETS software
- brightness or flashing also using the ETS software
The roller shutter output can be used in two different modes:
• Roller shutter:
- Possibility to set the roller shutter movement time
- Possibility to set activation delay for command received
- Set and read the height of the roller shutter via the bus.
- Set the minimum and maximum height of the roller shutter
- Possibility to manage rain, wind and frost alarms and blocks from the bus
- Possibility to raise or lower the roller shutter to its maximum or minimum height via a one-bit
message
- Possibility to raise or lower the roller shutter to its upper or lower limit via a one-bit message
(limits are user-settable parameters)
- Possibility to set transmission of a message on reaching the upper and lower limits of the
roller shutter
- Save and call up scenarios
- Possibility to set, with a 1-bit message, the height of the roller shutter selected on ETS
- Possibility to set behaviour on power-up and power-down
• Roller shutter and slats (in addition previously described shutter functions, the follow-
ing slat control functions are present):
- Set the rotation time, duration of the pulse signal and slat reversal time
- Set slat tilt angle on completion of shutter movement
- Possibility to set and read the slat tilt angle over the bus
- Possibility to save and call up slat tilt angle in a scenario
- Possibility to set, with a 1-bit message, the height of the roller shutter and the slat tilt angle
selected on ETS
- Possibility to force the status of the output
49401159A0 02 1805
~
.

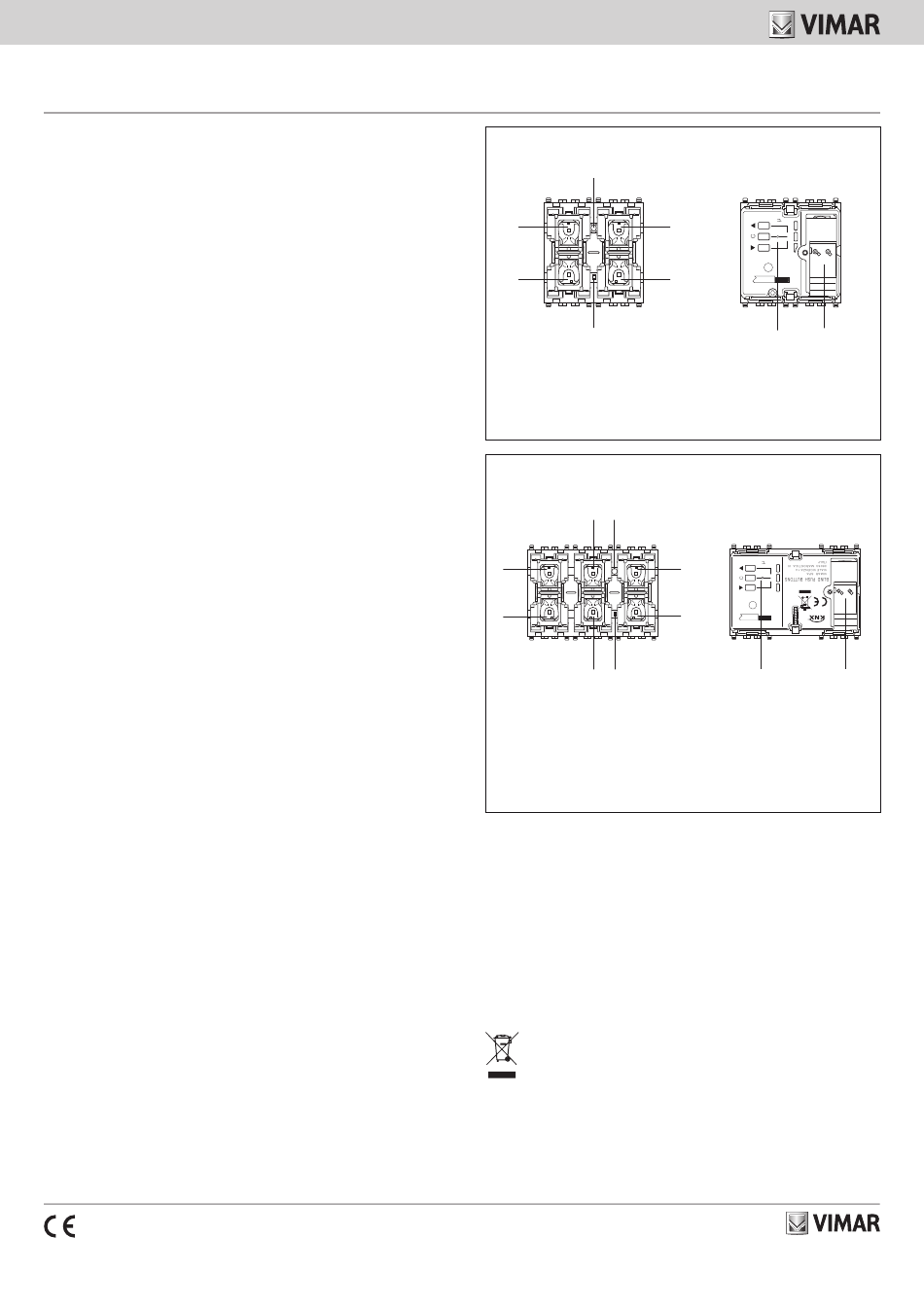

01582 - FRONT AND REAR VIEW
Configuration button
A
B
LED
Legend:
A: Button 1
B: Button 2
C: Button 3
D: Button 4
01587 - FRONT AND REAR VIEW
Configuration
button
C
A
B
D LED
Legend:
A: Button 1
B: Button 2
C: Button 3
D: Button 4
E: Button 5
F: Button 6
CONFIGURATION.
The configuration of the device, physical address and parameters takes place through the ETS
software. All the updated ETS databases can be downloaded from the "Software" section
of the website www.vimar.com.
INSTALLATION RULES.
Installation should be carried out by qualified staff in compliance with the current regulations
regarding the installation of electrical equipment in the country where the products are installed.
The feeding circuit of the relay output must be protected against overloads by a device, fuse or
automatic circuit breaker, with rated current not higher than 10 A.
REGULATORY COMPLIANCE.
LV directive. EMC directive.
Standards EN 60669-2-5, EN 50491.
WEEE - User information
If the crossed-out bin symbol appears on the equipment or packaging, this means
the product must not be included with other general waste at the end of its wor-
king life. The user must take the worn product to a sorted waste center, or return it
to the retailer when purchasing a new one. Products for disposal can be consigned
free of charge (without any new purchase obligation) to retailers with a sales area of
at least 400 m , if they measure less than 25 cm. An efficient sorted waste collec-
2
tion for the environmentally friendly disposal of the used device, or its subsequent
recycling, helps avoid the potential negative effects on the environment and people's
health, and encourages the re-use and/or recycling of the construction materials.
C
KNX
– +
120-240V~ 50/60 Hz
M
2A
D 6 mm
Relay Terminals
shutters
30 V Bus
slats
E
KNX
–
120-240V~ 50/60 Hz
M
2A
F
6 mm
Relay Terminals
shutters
30 V Bus
slats
